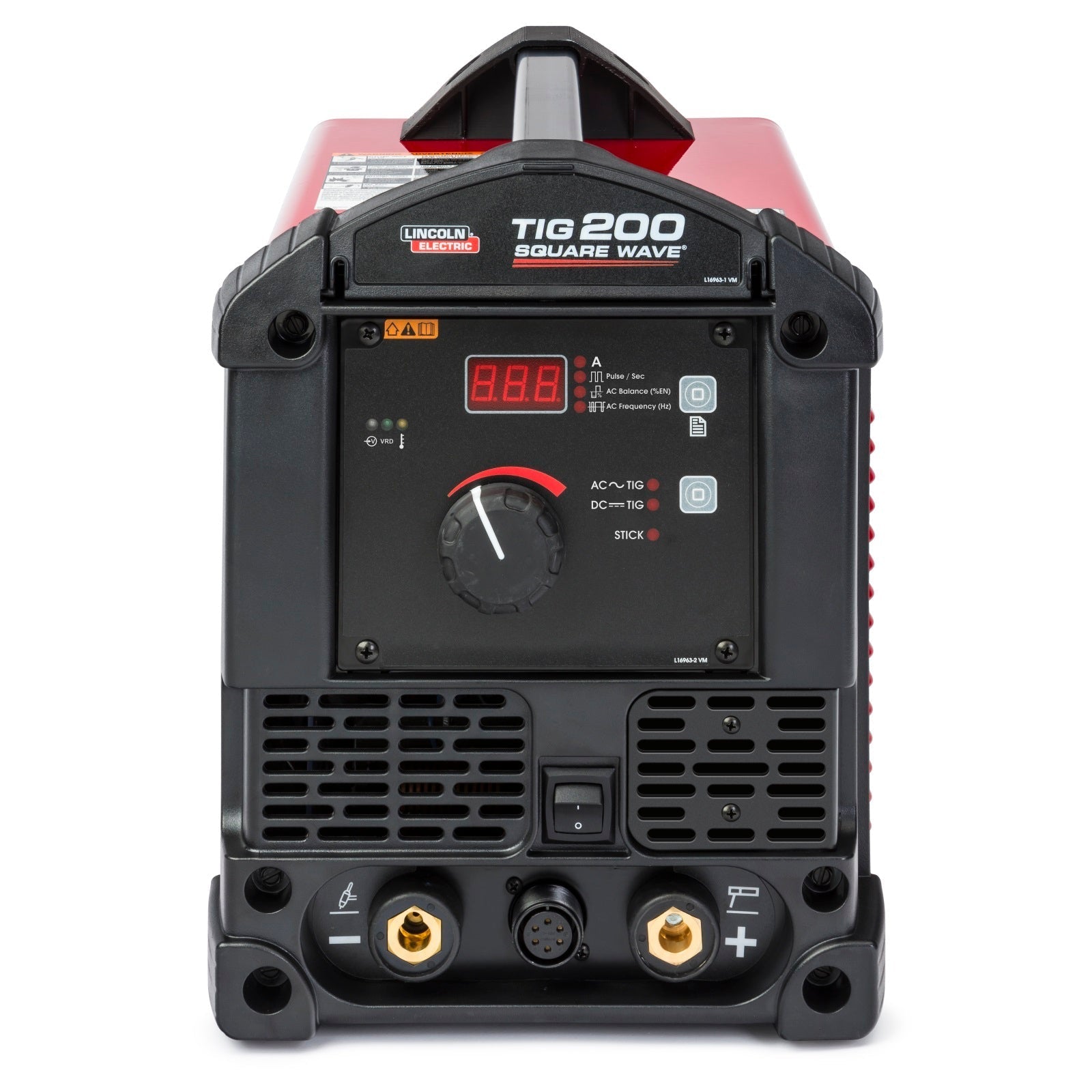

Lincoln Square Wave TIG 200 Welder (K5126-1)
The Lincoln Electric Square Wave TIG 200 is revolutionizing the TIG welding industry. Its user-friendly interface and advanced features make it the perfect choice for both novice and experienced welders. This versatile welder delivers superior arc quality on a wide range of materials, including aluminum, steel, stainless steel, and chrome-moly. With its intuitive controls, you can quickly adjust settings to optimize your welding performance. Whether you're a hobbyist or a professional, this Lincoln TIG welder is the ideal tool to elevate your welding projects.
Advanced features, such as its high-frequency starting and adjustable pulse settings, make it easy to achieve precise welds on a variety of materials. Whether you're working with thin aluminum or thicker steel, the Lincoln Square Wave 200 offers the flexibility and control you need to get the job done right.
Designed for a variety of uses, the Lincoln Square Wave 200 excels at welding aluminum, steel, and stainless steel. Its compact, lightweight design and dual voltage capabilities make it perfect for both shop and field applications. Whether you're tackling thin sheet metal or thicker materials, the Lincoln Square Wave 200 delivers consistent, high-quality welds.
Features on the Lincoln TIG 200:
• AC/DC TIG & Stick welding capabilities
• 200 A output
• Extremely portable - weighing only 46 pounds.
Lincoln 200 TIG Quick Specs:
• Input Power: 120 or 230 V, Single Phase, 60 Hz
• Output Range: 120 V = TIG (10-125 A), Stick (10-110 A)
• Output Range: 230 V = TIG (10-200 A), Stick (10-170 A)
• Rated Output: 230 V = TIG (200 A @ 25%), (130 A @ 60%)
• AC Frequency Range: 60-150 Hz
• AC Balance: 60-90 (%Electrode Negative)
• Pulse: 0.1-20 (Pulses per Second)
• Weight: 46 pounds (21kg)
• Dimensions: 14"h X 10.75"w X 19.25"d (358 X 282 X 502mm)

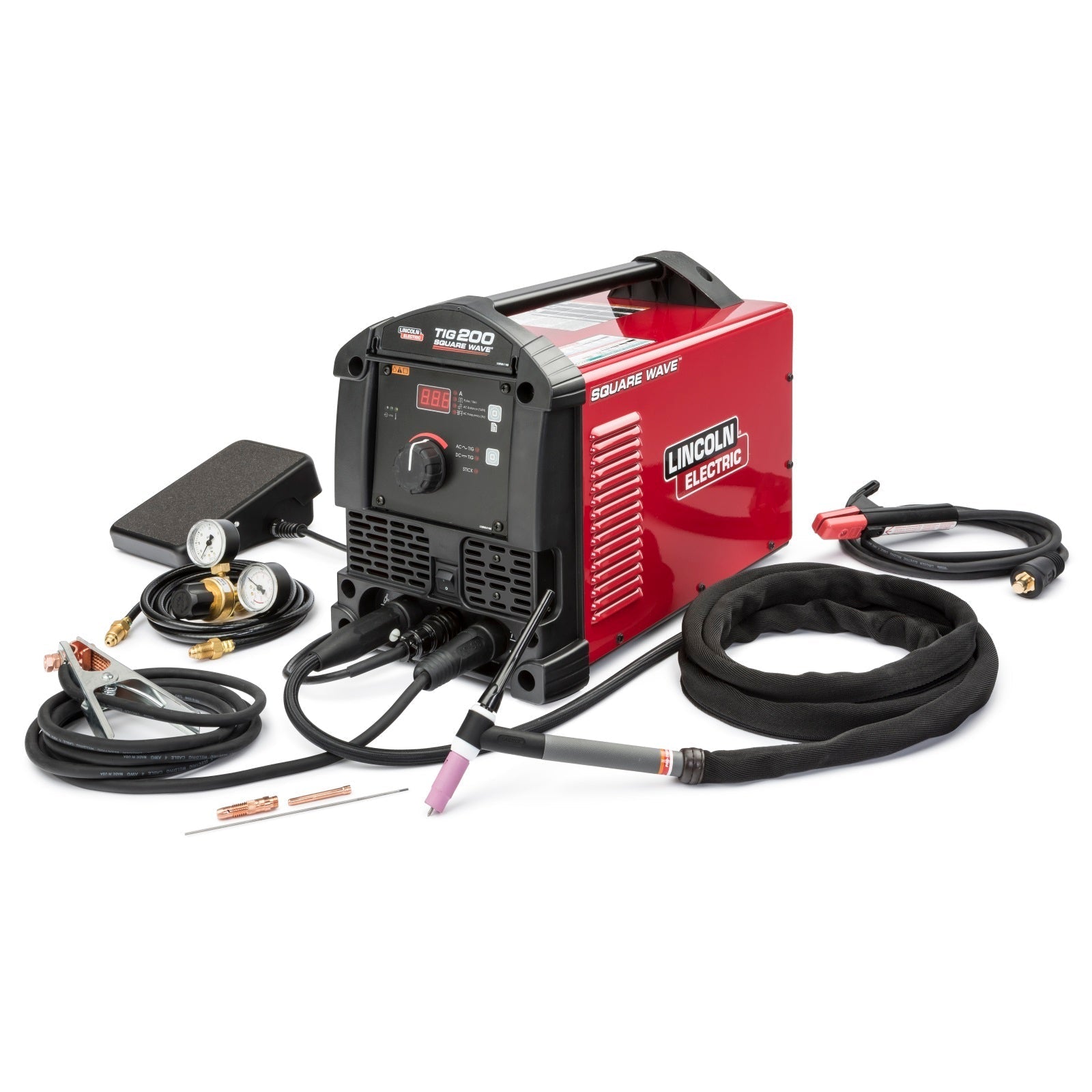

Includes:
• Square Wave 200 Welder
• PTA-17 Series 150 A Air-cooled TIG torch w/ flexible head & ultra-flex cable assembly
• Foot Amptrol
• Regulator/Flowmeter with gas hose
• Stick Electrode Holder
• Ground Clamp
• 120/230 V input Cords
MPN: LINK5126-1
UPC: 015082616285
