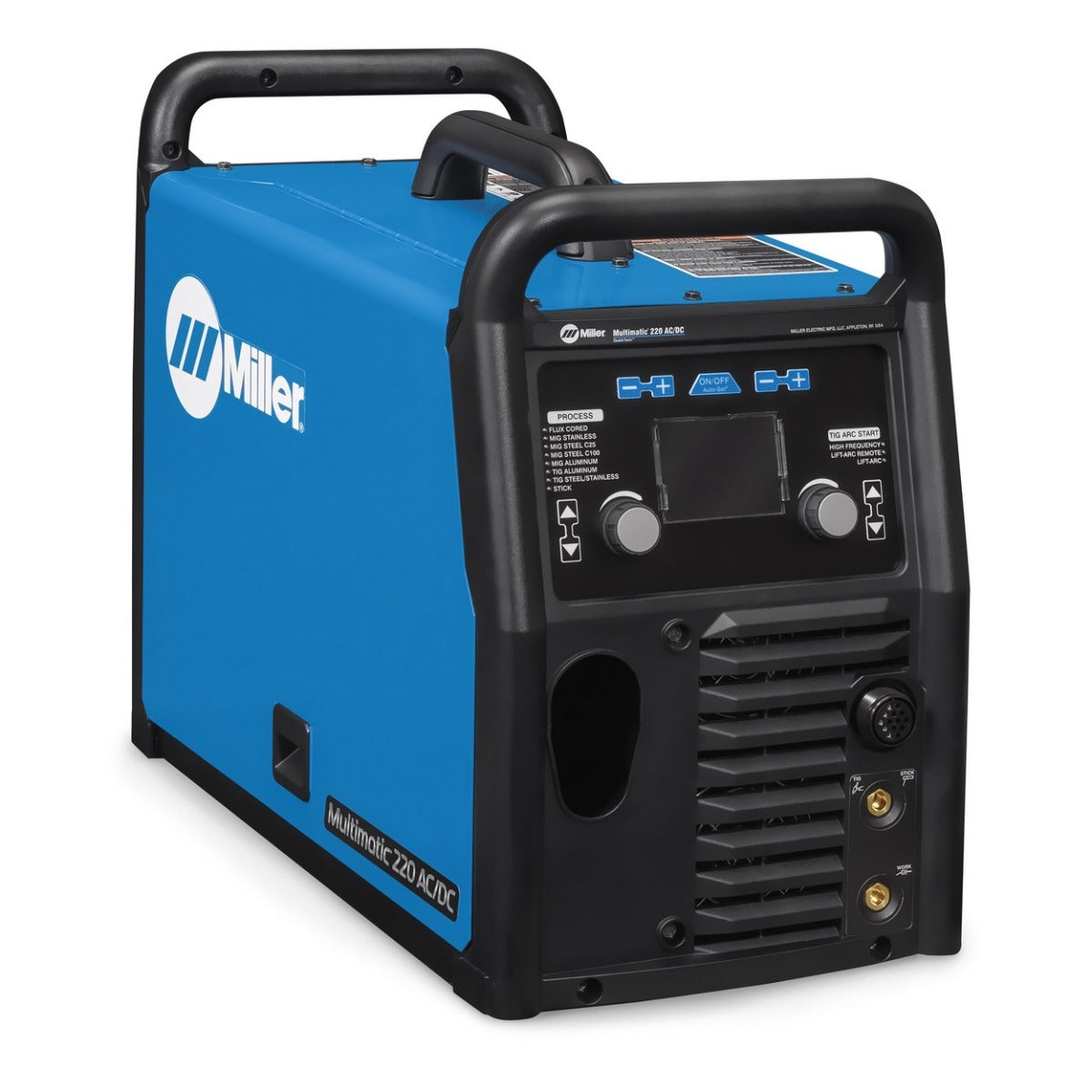

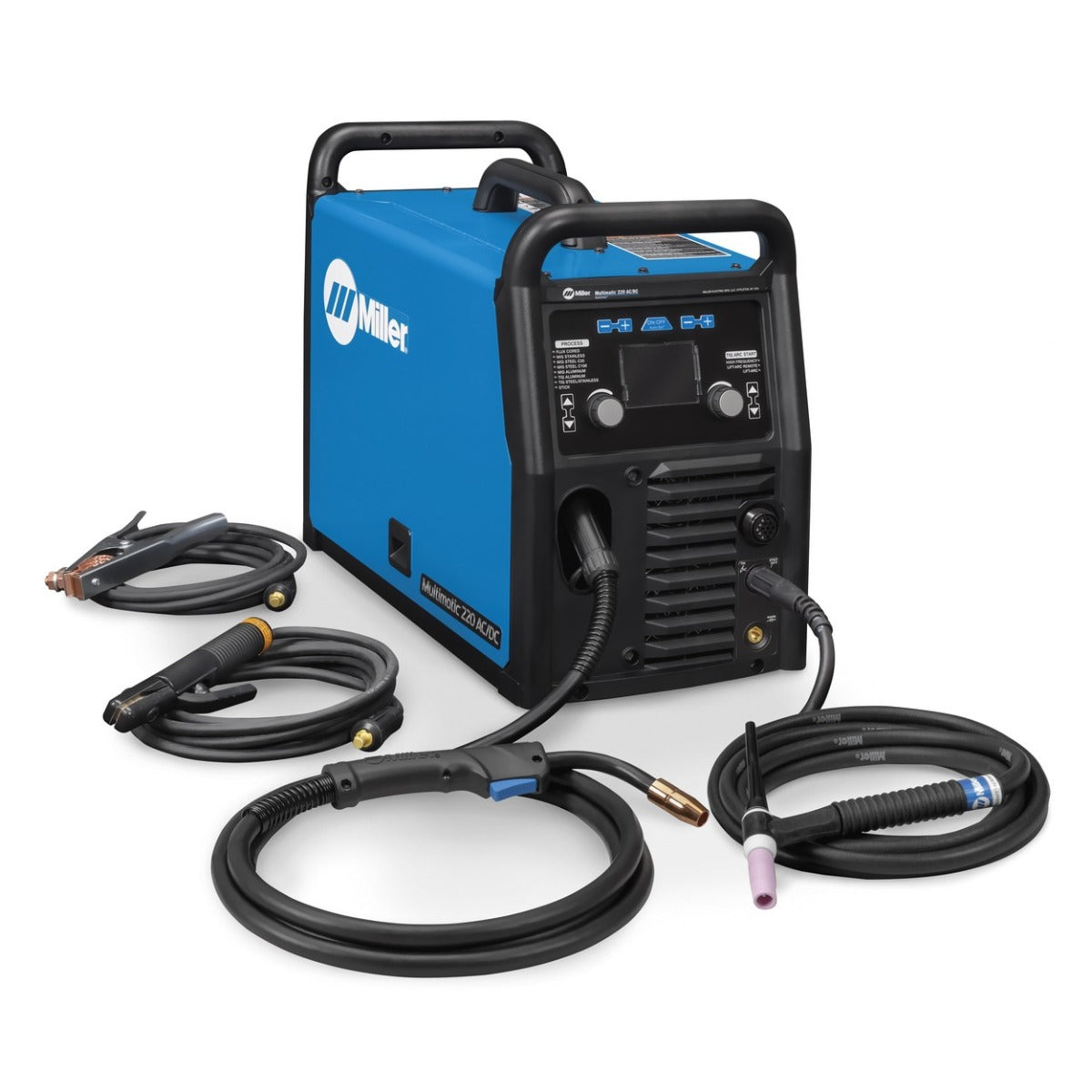

Miller Multimatic 220 AC/DC Multiprocess Welder (907757)

The Miller Multimatic 220 AC/DC Multiprocess Welder (907757) is set to disrupt the market with the combination of MIG, Stick, AC/DC TIG, and Miller's unparalleled reliability and craftsmanship. Building off the success of their Multimatic welders, Miller has combined AC capabilities for TIG with their trusted MIG/Stick technology. That means now you only need one Miller electric MIG machine for all the welding processes and all the metals.

Take on more projects with the Miller 220 MIG welder, which supports MIG, DC stick, and AC/DC TIG.  *** This welder package includes a wired foot control.  If you prefer the wireless foot control, you need part # 907757002. ***

• MIG:
24 ga.–3/8 in. steel
18 ga.–3/8 in. aluminum
• DC Stick:
16 ga.–3/8 in. steel
• AC/DC TIG:
24 ga.–1/4 in. steel and aluminum

The Multimatic 220 AC/DC comes equipped with all the accessories needed to weld any process, unlike other machines where you need to purchase additional accessories.

With Miller's innovative QuickTech technology, setup and changing processes are even easier.

• Automatically determines the polarity. Work is always connected to the bottom right receptacle. MIG gun and TIG torch can stay connected at the same time.
• Automatically switches to the right process. Just hit the trigger, or the foot control, and the machine automatically changes, eliminating the need to manually change processes.
• Automatically recalls the settings from the last process used.



Auto-Set Elite fast and easy predefined settings for multiple materials and processes to help you get welding quickly.

• Available for all processes (MIG, stick, AC TIG, DC TIG) with the ability to fine-tune your settings.
• Set weld parameters by selecting:

MIG – wire diameter and material thickness
Stick – electrode type, diameter and material thickness
AC/DC TIG – tungsten diameter and material thickness

Pro-Set (TIG and stick manual modes)

Pro-set eliminates the guesswork when setting weld parameters. Simply adjust the control until Pro-Set appears on the display and the number turns blue.

• AC Balance (AC TIG) — controls the cleaning action (Pro-Set 75%)
• AC Frequency (AC TIG) — controls the width of the arc cone (Pro-Set 120 Hz) • Pulse (DC TIG) — helps focus the arc for increased stability, penetration and travel speed (Pro-Set 100 Hz)
• DIG (Stick) — lets you tailor arc characteristics for a wide range of applications (Pro-Set 30% 7018 electrodes)

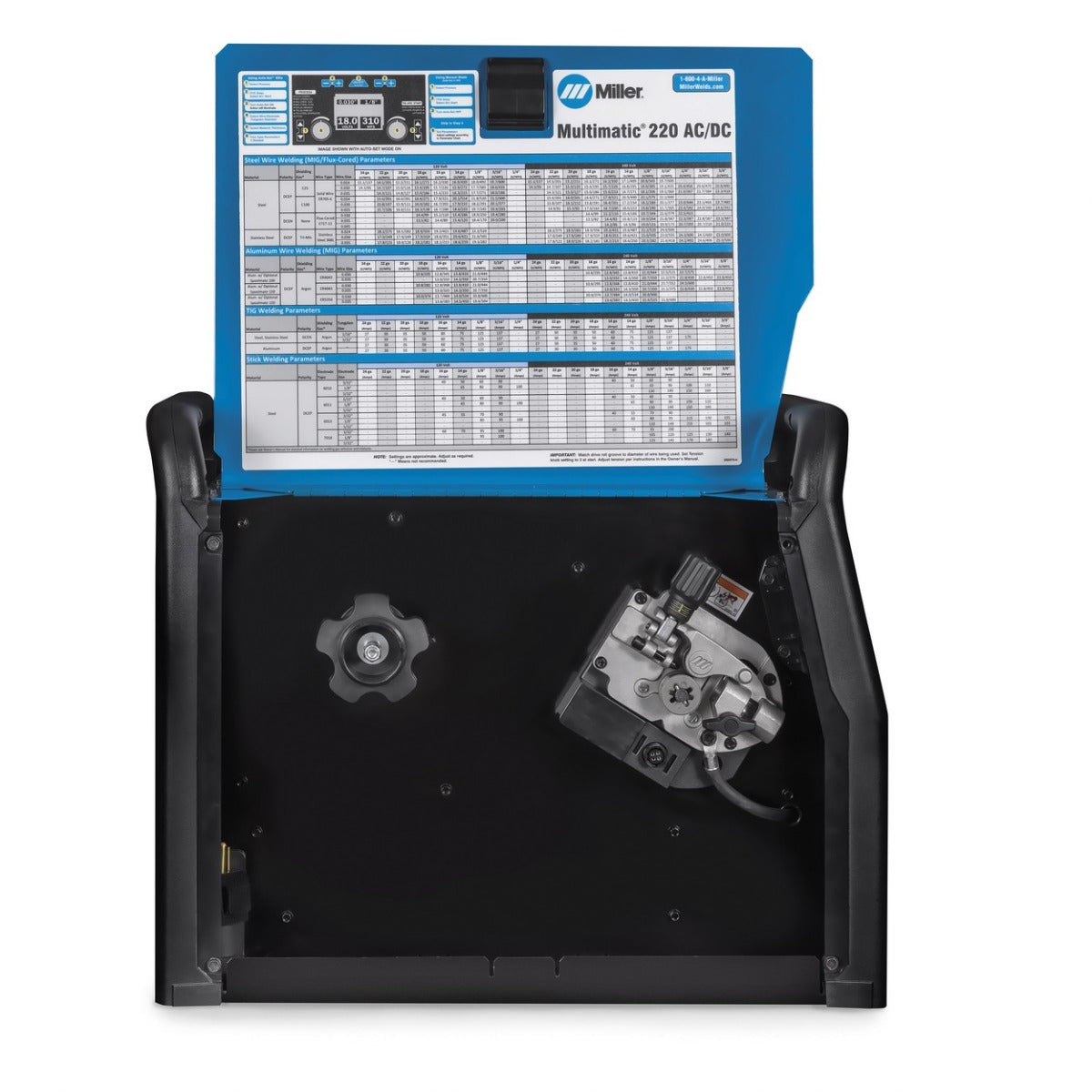

Robust, angled wire drive with Quick Select drive roll for easily changing one wire type/diameter to another. Quick Select drive roll offers three grooves; two for different-sized solid wires and a third for flux-cored wire.

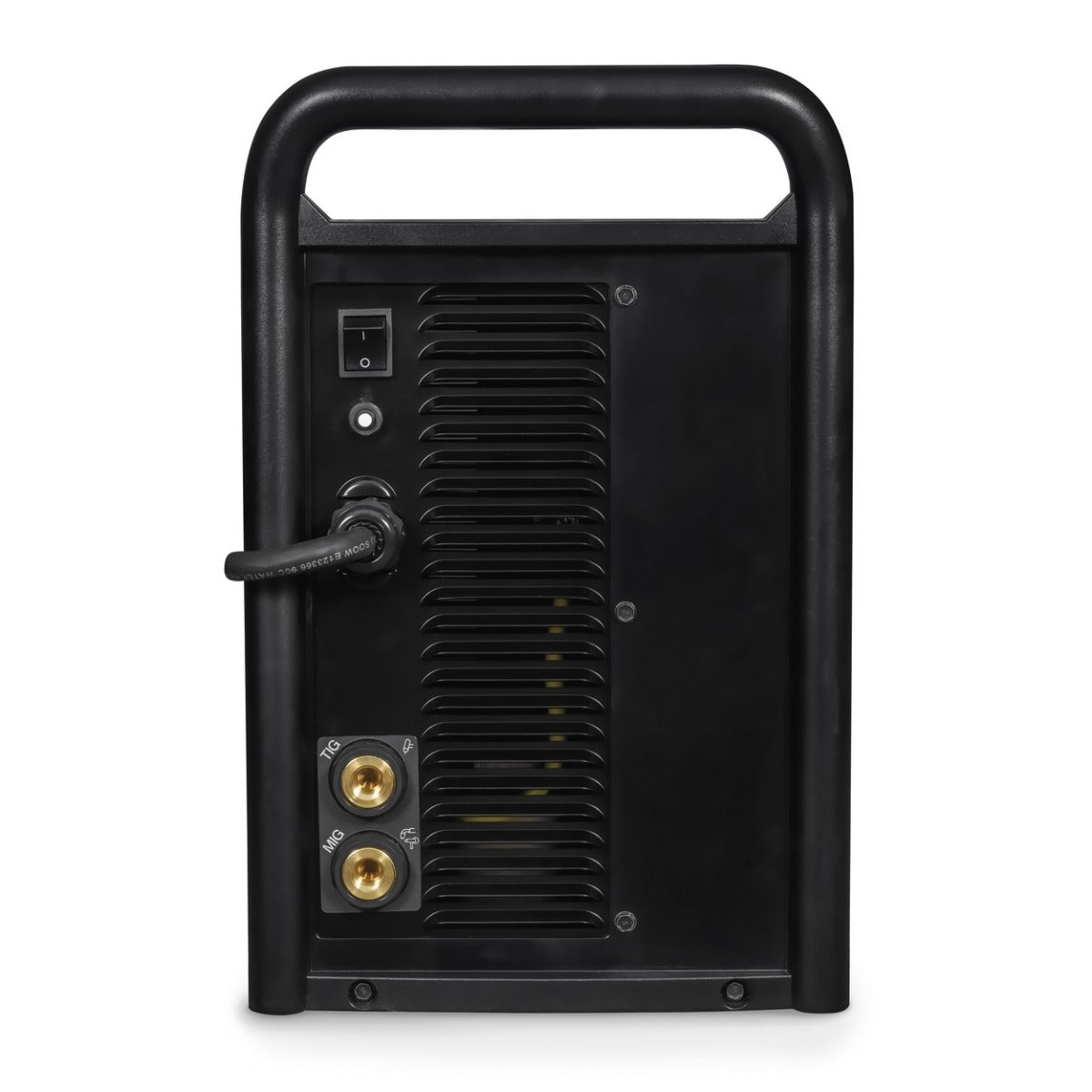

Two shielding gas connections so both gases can be left connected to the machine; no switching needed. One connection for MIG gas and one for TIG gas.

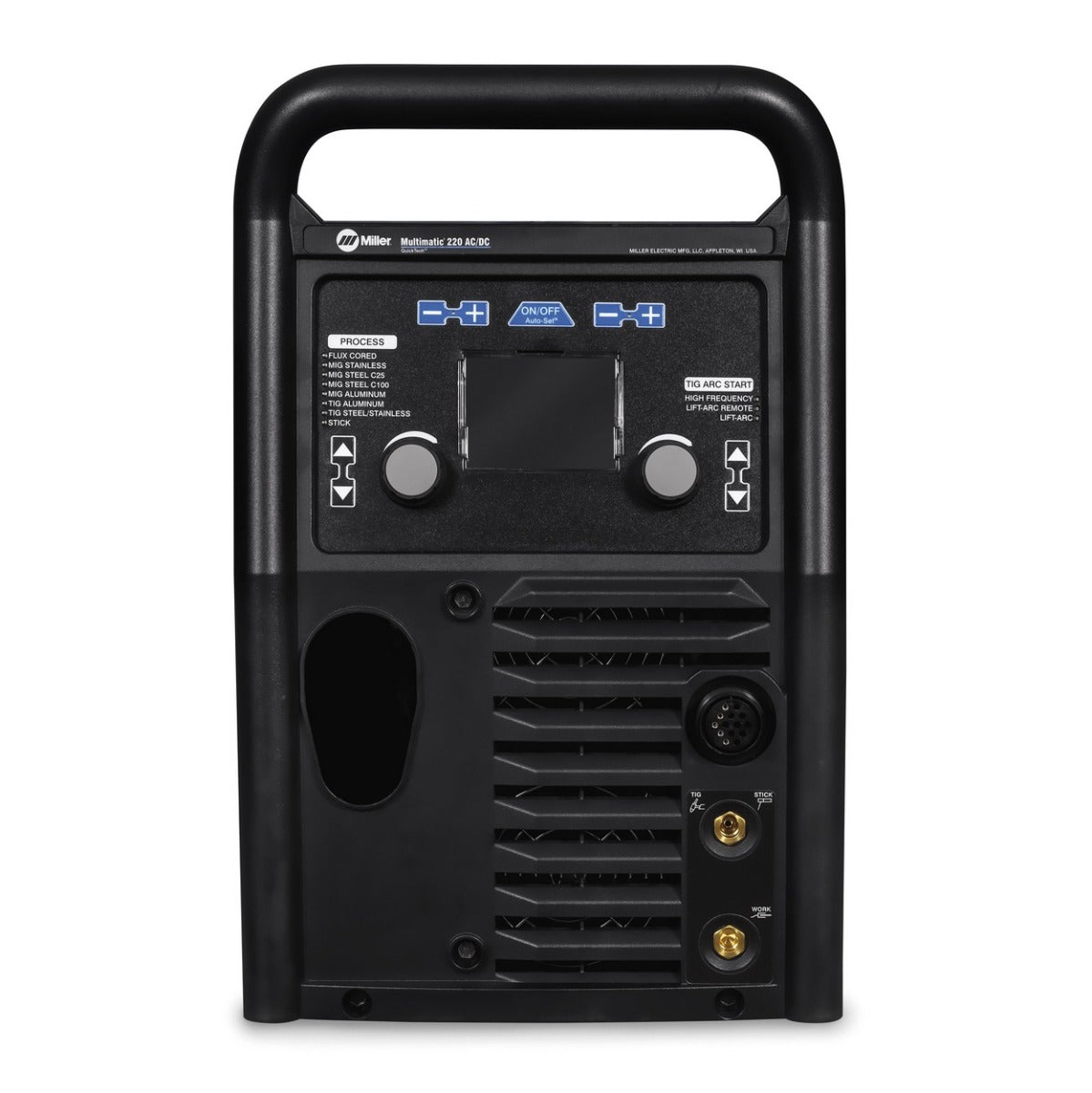

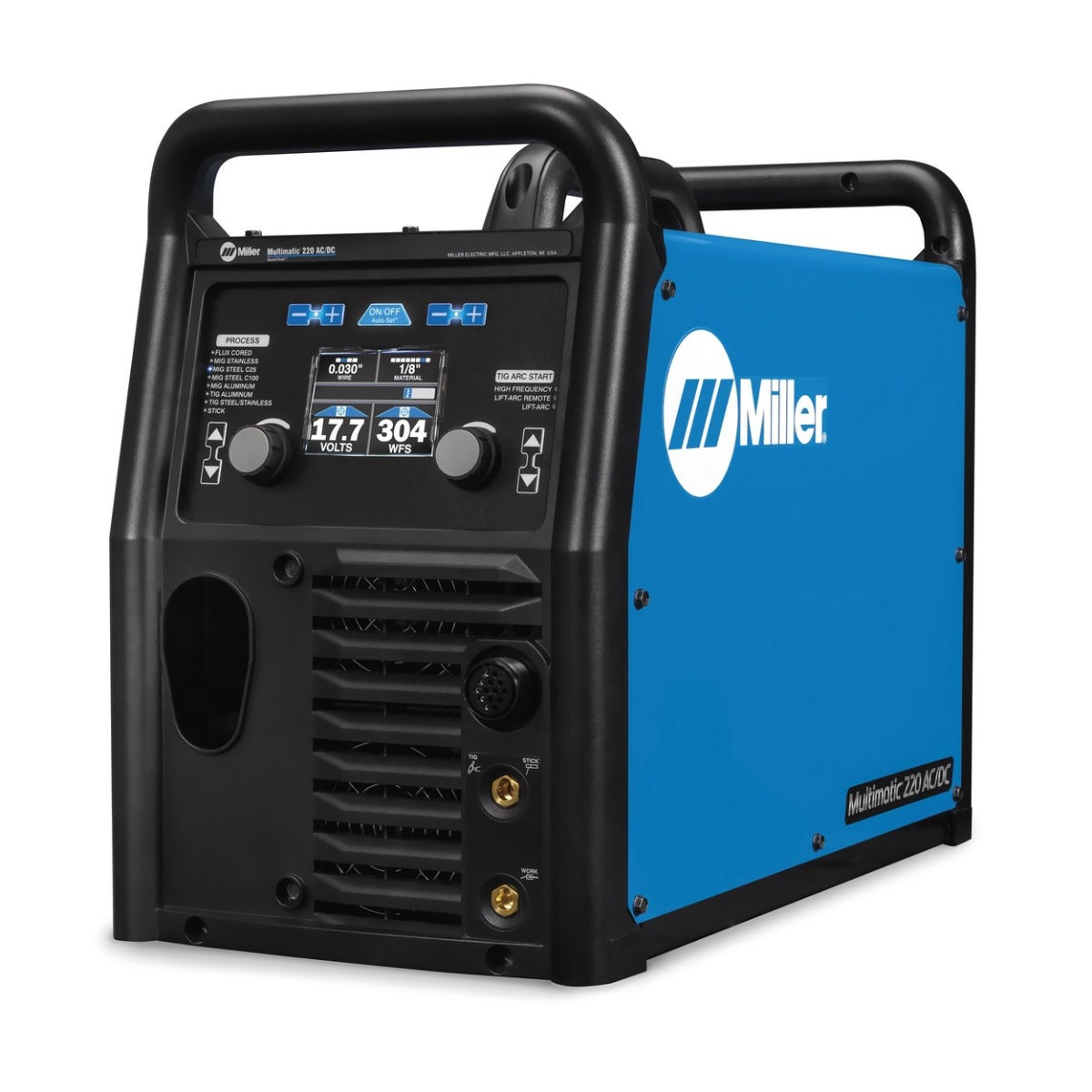

Easy-to-understand interface with a 3.5-inch LCD display and intuitive connection setup images.

Weighing only 56 pounds, the Multimatic 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.

The 220 Miller MIG Welder Operates on 120-volt or 240-volt power, letting you work virtually anywhere. Multi-voltage plug (MVP) easily connects to common 120-volt or 240-volt power outlets (no tools required to change). Choose the plug that fits the receptacle and connect it to the power cord.

14-pin controlled operator alternatives
The standard 14-pin connector on your Multimatic 220 AC/DC lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.

Wide range of TIG adjustability.
• AC Balance – adjustable from 60–80%
• AC Frequency – adjustable from 60–150 Hz
• DC Pulse – adjustable from Off–150 pulses per second (PPS)
• TIG Post-Flow – adjustable from Auto–25 seconds (accessible through service menu screen 12)
• Lift-Arc and high-frequency starts
• Tungsten size selection

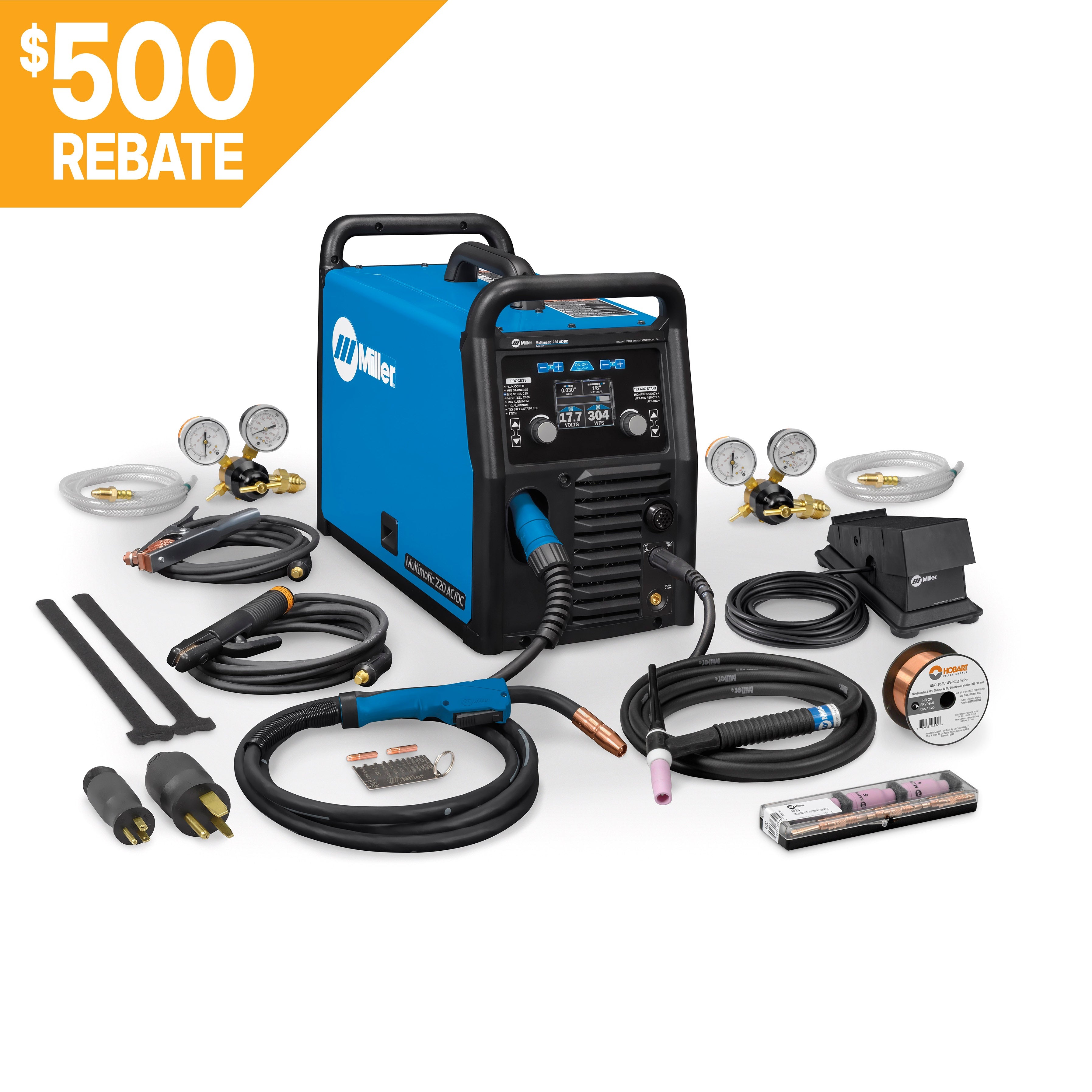

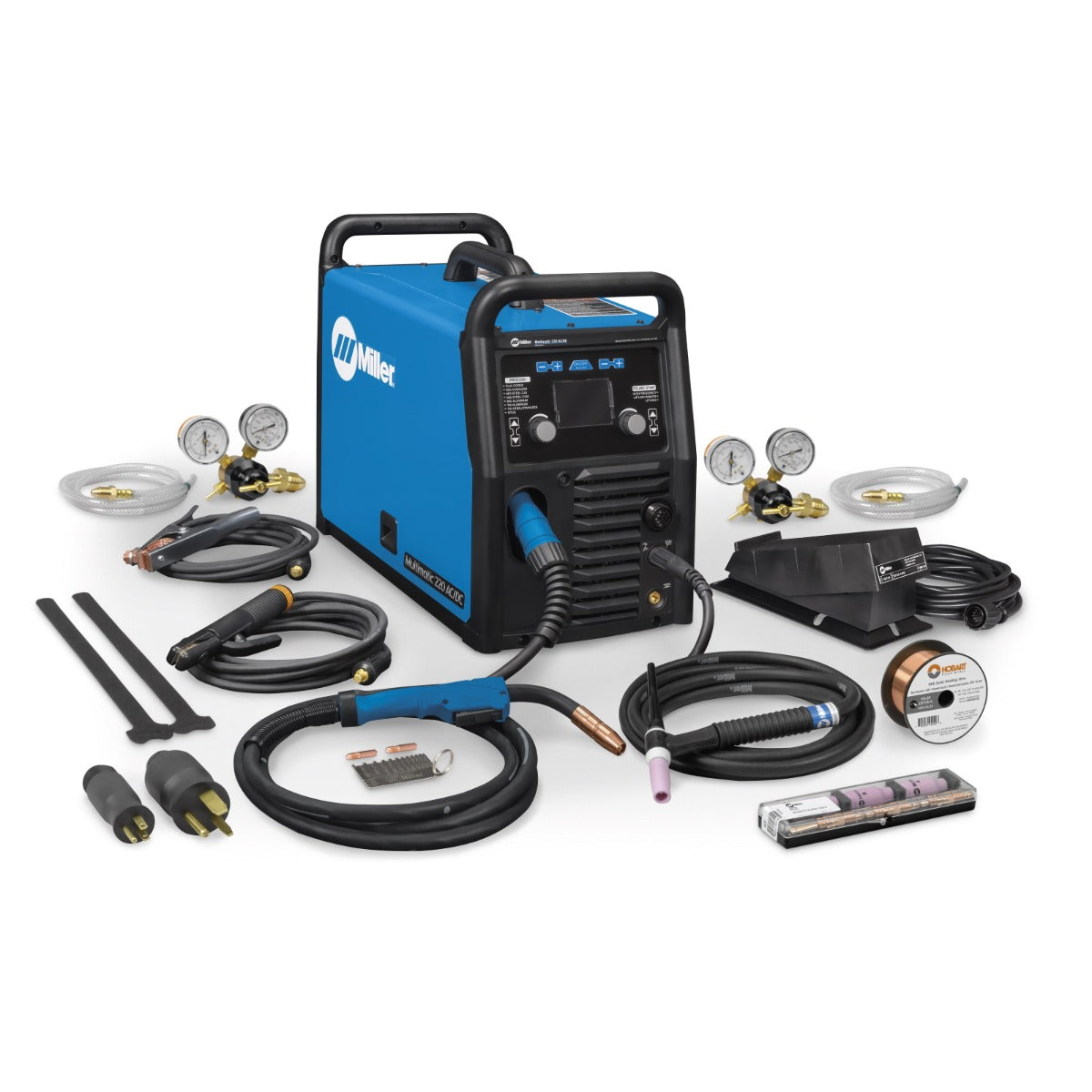

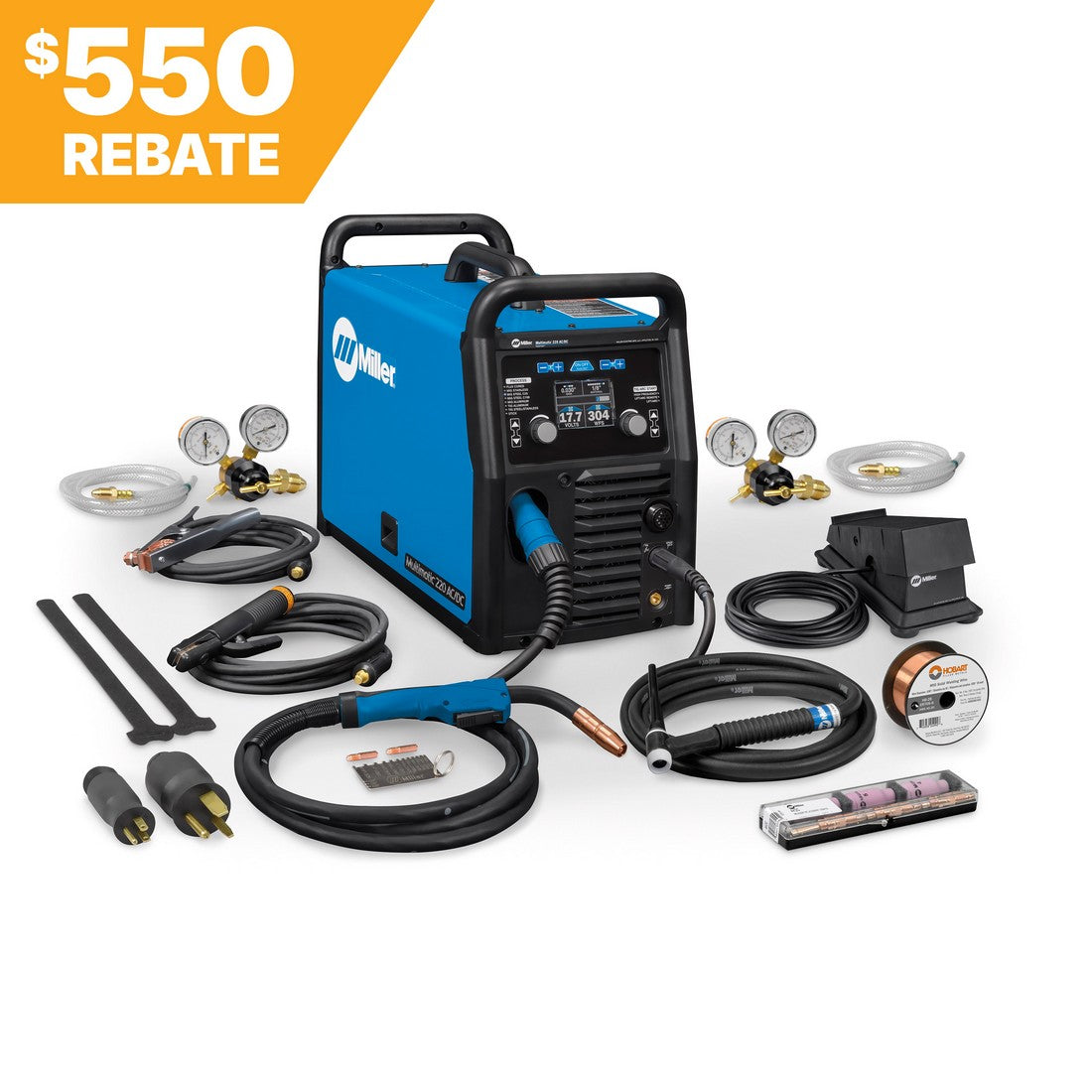

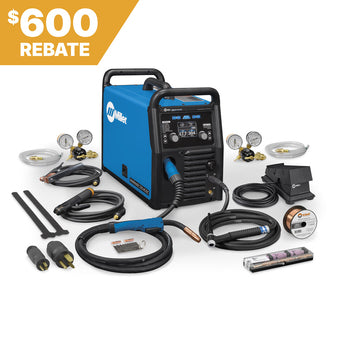

Comes complete with:
• Power source (907757)
• 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
• 10 ft. (3 m) MDX 100 MIG gun and cable assembly (Accepts Miller MDX Consumables)
• 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
• 12.5 ft. (3.8 m) Weldcraft A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
• RFCS-14 HD foot control with 20 ft. (6 m) cord
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• Two flow gauge regulators and gas hoses for argon and AR/CO2 mix
• Hobart spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• AK2C TIG torch accessory kit
• Material thickness gauge (229895)
• Hook-and-loop cord wraps

MPN: MIL907757

UPC: 715959669276

Phase: Single Phase
