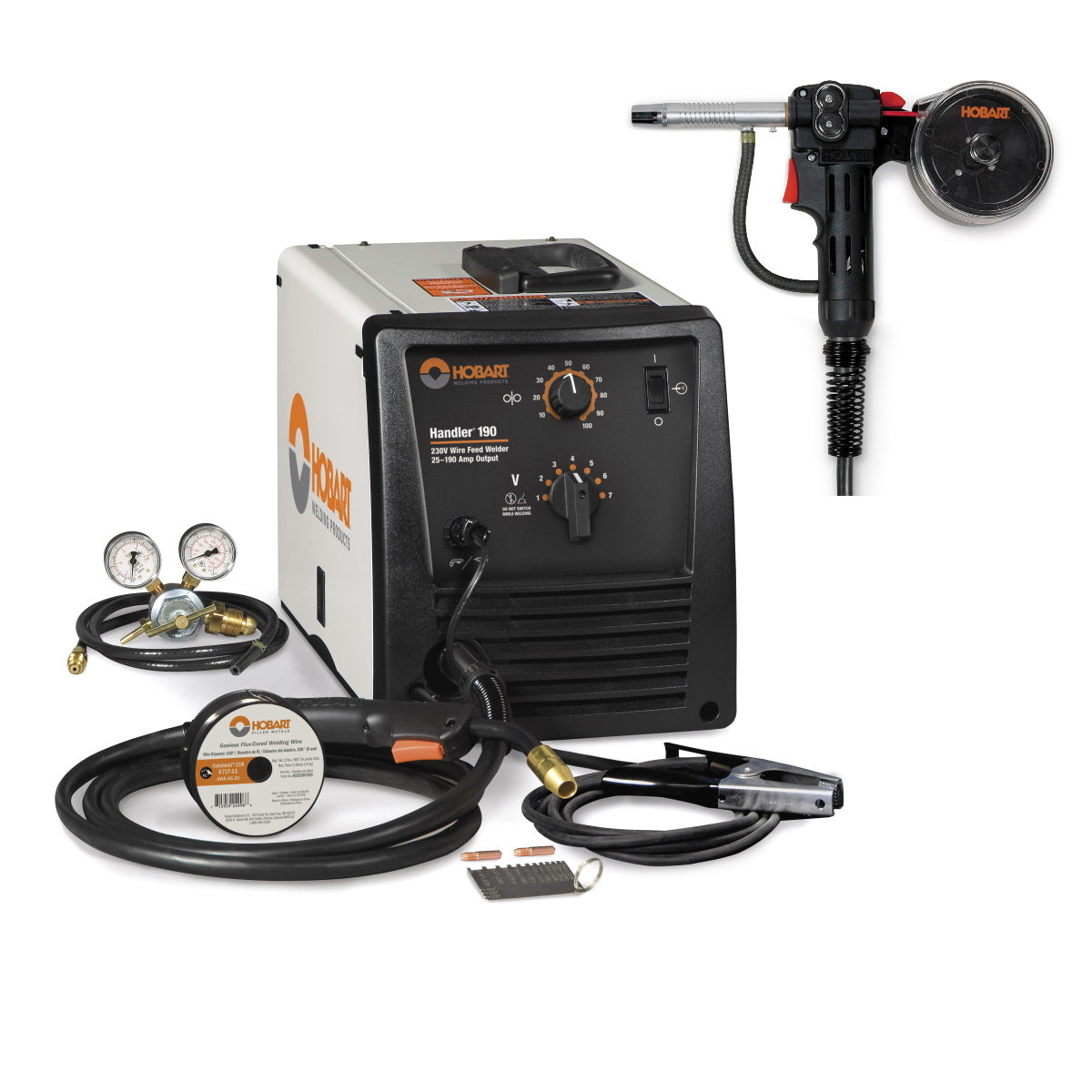

Hobart Handler 190 MIG Wire Welder with SpoolRunner 100 Spool Gun (500554001)
The Hobart Handler 190 MIG Wire Welder with SpoolRunner 100 Spool Gun (500554001) provides a low cost option to weld aluminum with a small frame MIG Welder. The spool gun circuitry is built in so no extra kits or controls are required. Simply plug in the SpoolRunner 100 spool gun and you eliminate feeding problems associated with aluminum wire; it can also be used with mild or stainless steel wire.
The Handler 190 features a seven-position voltage switch and and infinite wire feed speed control which creates a welding arc that more perfectly matches metal thickness and wire diameter than any competitor in its class; less spatter, professional bead appearance, excellent penetration and minimal post-weld cleanup. The Hobart Handler 190 operates on 230 volt input power and offers an output range of 25 to 190 amps, allowing users to weld materials as thin as 24 gauge and as thick as 5/16 inch.
Highlights:
• 7 voltage selections, enhanced magnetics and infinite wire feed speed control offers easier fine control of the output parameters for improved arc performance with less spatter for a better bead appearance and less cleanup
• Welds 24 gauge up to 5/16 inch steel
• Spool gun control circuitry is built-in to the Handler 190 for the optional SpoolRunner 100 direct plug-in spool gun. Alleviates feeding problems with soft aluminum wires. Also useable with mild or stainless steel welding wires.
• Proven built-in wire feeder with quick-release drive roll lever
• Built-in contactor eases use and is an excellent safety feature which makes wire electrically "cold" when not welding
• Easy access to polarity changeover includes storage holes for spare tips
• Dual groove drive rolls make it easy to switch from one wire size to another. One knurled groove and one smooth groove for .030-.035 in. (0.8-0.9 mm) wire.
• Self-resetting thermal overload and motor protection
Comes Complete With:
• Comfortable 10 ft. (3 m) H100S4-10 welding gun
• Built-in gas valve
• Dual gauge regulator and gas hose
• Power cord with plug
• 10 ft. (3 m) work cable with clamp
• Sample spool of .030 in. (0.8 mm) self-shielded flux cored welding wire
• 8 in (203 mm) wire spool adapter
• Extra .030 in. (0.8 mm) contact tips
• Weld set-up chart
• 5/3/1 Industrial Warranty. Five year warranty on transformers, stabilizers and generators; three years on electronics (drive motors, rectifiers); one year on guns (MIG and plasma torches)
The Handler 190 features a seven-position voltage switch and and infinite wire feed speed control which creates a welding arc that more perfectly matches metal thickness and wire diameter than any competitor in its class; less spatter, professional bead appearance, excellent penetration and minimal post-weld cleanup. The Hobart Handler 190 operates on 230 volt input power and offers an output range of 25 to 190 amps, allowing users to weld materials as thin as 24 gauge and as thick as 5/16 inch.
Highlights:
• 7 voltage selections, enhanced magnetics and infinite wire feed speed control offers easier fine control of the output parameters for improved arc performance with less spatter for a better bead appearance and less cleanup
• Welds 24 gauge up to 5/16 inch steel
• Spool gun control circuitry is built-in to the Handler 190 for the optional SpoolRunner 100 direct plug-in spool gun. Alleviates feeding problems with soft aluminum wires. Also useable with mild or stainless steel welding wires.
• Proven built-in wire feeder with quick-release drive roll lever
• Built-in contactor eases use and is an excellent safety feature which makes wire electrically "cold" when not welding
• Easy access to polarity changeover includes storage holes for spare tips
• Dual groove drive rolls make it easy to switch from one wire size to another. One knurled groove and one smooth groove for .030-.035 in. (0.8-0.9 mm) wire.
• Self-resetting thermal overload and motor protection
Comes Complete With:
• Comfortable 10 ft. (3 m) H100S4-10 welding gun
• Built-in gas valve
• Dual gauge regulator and gas hose
• Power cord with plug
• 10 ft. (3 m) work cable with clamp
• Sample spool of .030 in. (0.8 mm) self-shielded flux cored welding wire
• 8 in (203 mm) wire spool adapter
• Extra .030 in. (0.8 mm) contact tips
• Weld set-up chart
• 5/3/1 Industrial Warranty. Five year warranty on transformers, stabilizers and generators; three years on electronics (drive motors, rectifiers); one year on guns (MIG and plasma torches)
MPN: HOB500554001
UPC: 715959566636
Phase: Single Phase
