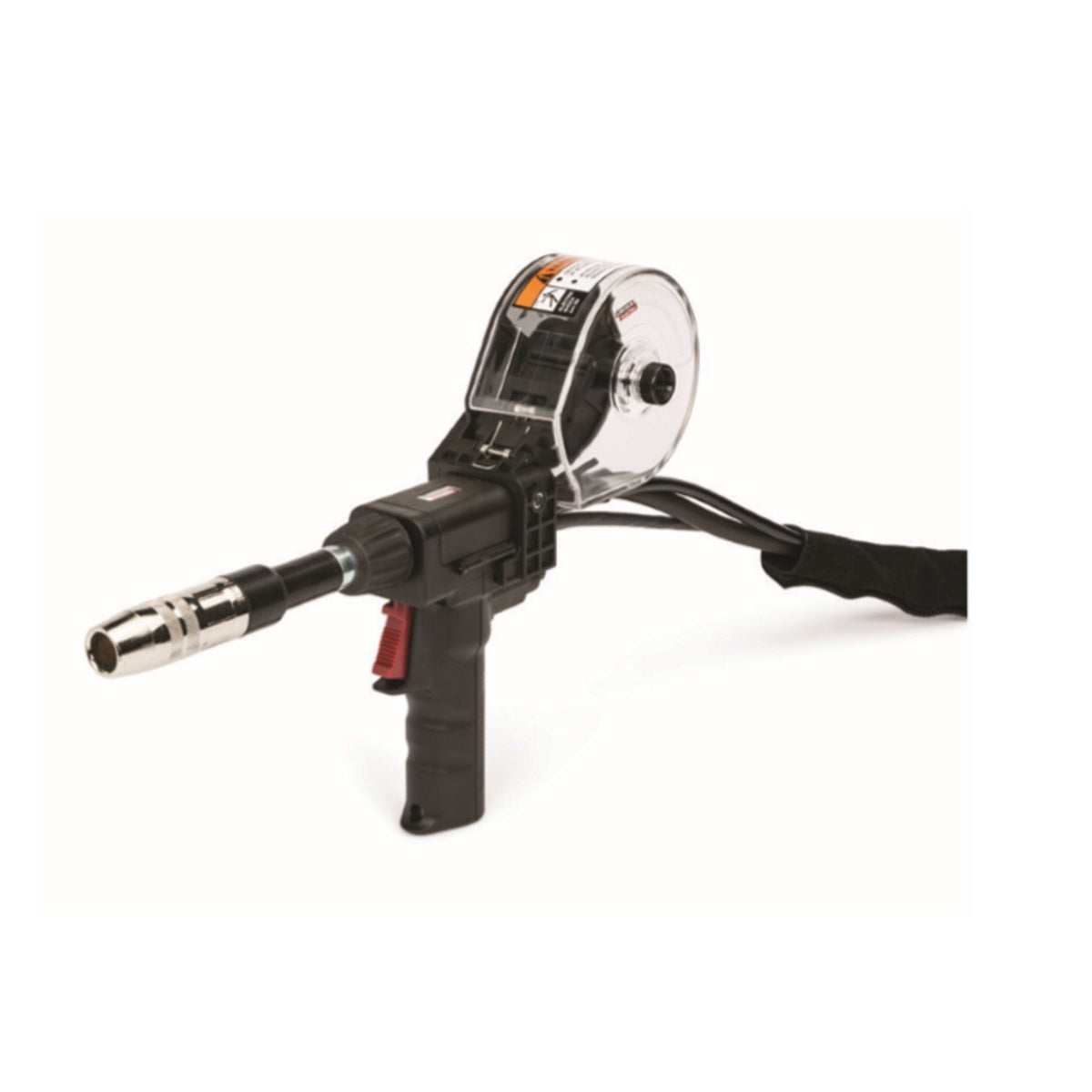

Lincoln Magnum Pro 250LX GT Spool Gun (K3569-2)
The Lincoln magnum pro 250lx gt spool gun comes with a 7-pin connector and is a direct-connect for the Ranger 330MPX generator. This gun comes with a 25-foot lead and uses Lincoln's Magnum PRO consumables for extended contact tip life, increasing the amount of arc-on time.
Key Features

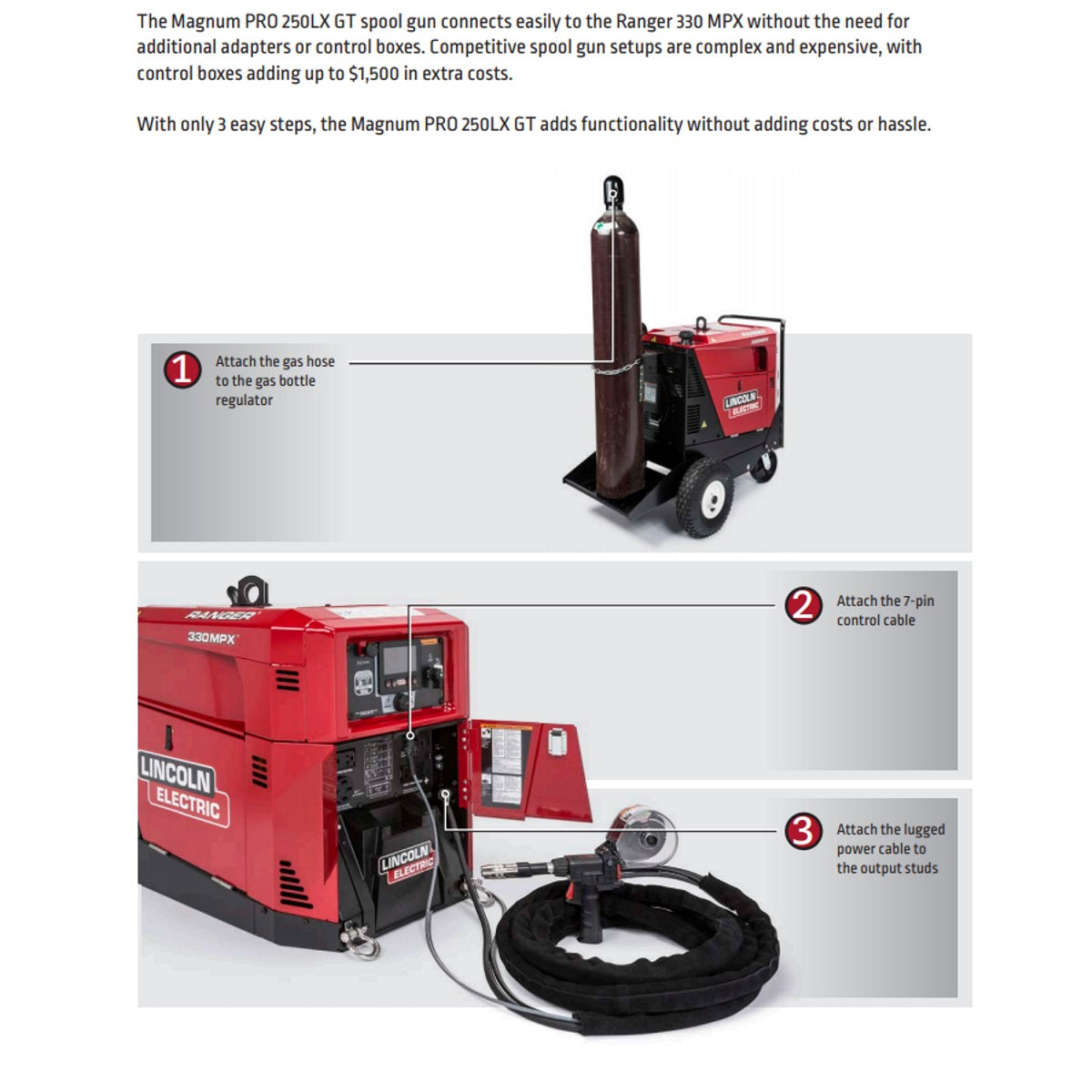

• Connects Easily and Effectively - plugs directly into Ranger 330MPX
• Magnum PRO Consumables - extended tip life
• Internal Gas Valve - built-in gas valve, compatible with machines without internal solenoids
• Synergic Wire Speed Adjustment - adjust wire speed at the gun, dials in parameters without going back to power source
• Tool-Less Drive Roll Tension - large thumbscrew makes fine adjustment of drive roll pressure effortless
Quick Specs
• Length: 25 Ft
• Wire Size Range: .030 - 3/64 Aluminum | .025-.035 Steel
• Duty Cycle: 60% @ 280A | 100% @ 200A
• Gun Weight: 3lbs
Includes
• Magnum 250LX GT
• Diffuser KP2747-1A
• 5/8" Nozzle KP2743-1-62RA
• 3/64 Tapered Contact Tip KP2745-364AT
• .030/.035 - 3/64 Aluminum Drive Roll KP2518-2
• Barrel Liner KP2879-5
• Insulator KP2773-1
Key Features
• Connects Easily and Effectively - plugs directly into Ranger 330MPX
• Magnum PRO Consumables - extended tip life
• Internal Gas Valve - built-in gas valve, compatible with machines without internal solenoids
• Synergic Wire Speed Adjustment - adjust wire speed at the gun, dials in parameters without going back to power source
• Tool-Less Drive Roll Tension - large thumbscrew makes fine adjustment of drive roll pressure effortless
Quick Specs
• Length: 25 Ft
• Wire Size Range: .030 - 3/64 Aluminum | .025-.035 Steel
• Duty Cycle: 60% @ 280A | 100% @ 200A
• Gun Weight: 3lbs
Includes
• Magnum 250LX GT
• Diffuser KP2747-1A
• 5/8" Nozzle KP2743-1-62RA
• 3/64 Tapered Contact Tip KP2745-364AT
• .030/.035 - 3/64 Aluminum Drive Roll KP2518-2
• Barrel Liner KP2879-5
• Insulator KP2773-1
MPN: LINK3569-2
UPC: 015082848891
