Lincoln Magnum Pro Curve HDE 350 Mig Gun Ready Pak (K4532)
Lead time: 3-5 Days
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
Quantity:

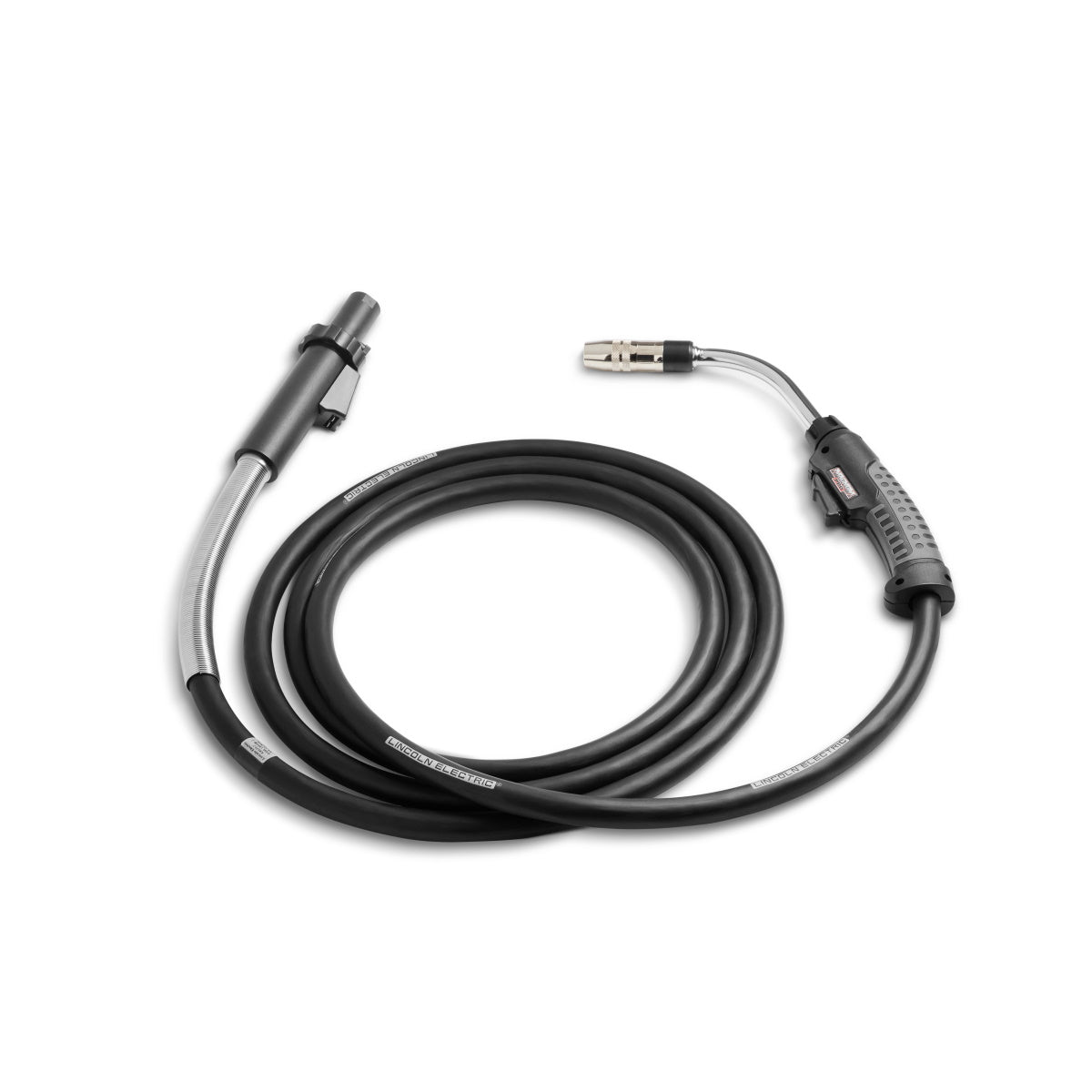

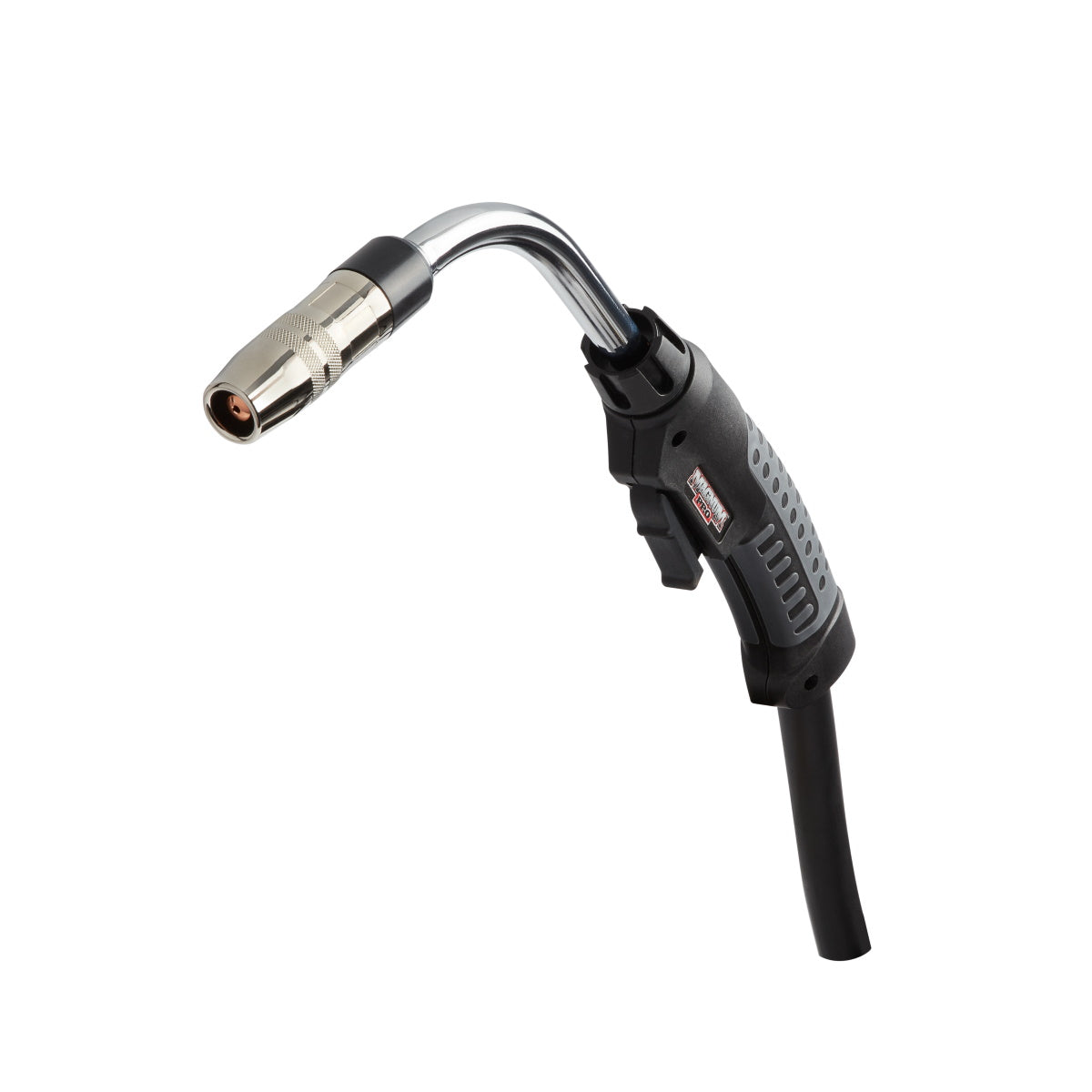

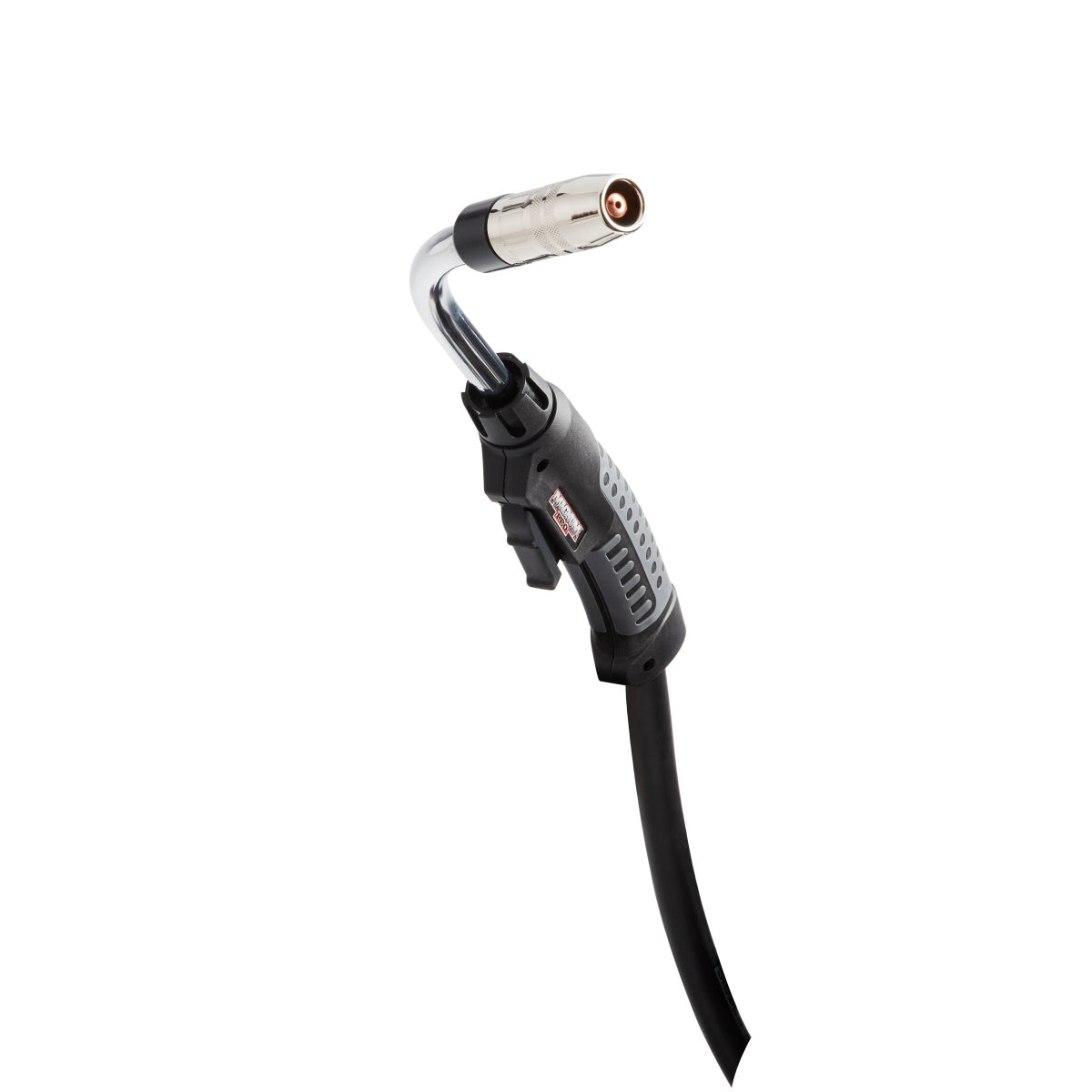

The Magnum Pro Curve HDE 350 series MIG guns feature a lightweight curved handle along with a rotating gun tube for those tight spaces. These guns are suitable for MIG, Flux-Cored (FCAW), and Pulsed MIG operations. These guns have the highest duty cycle rating in their class, boasting a 100% rating at 350 amps with mixed gas and CO2. The HDE guns have a 360 degree tool-less rotatable gun tube, and a soft rubber molded handle for greater comfort.

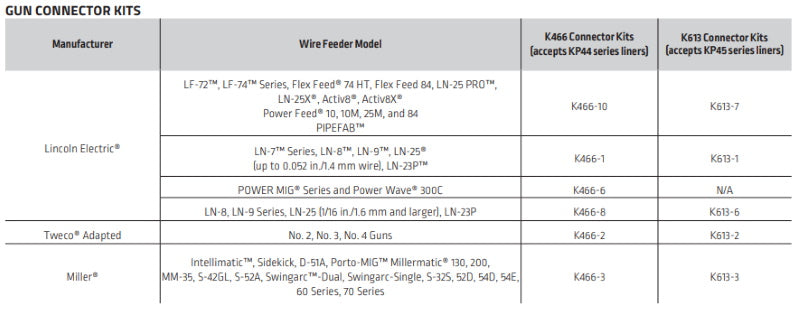

The HDE Ready-Pak MIG guns come with the liner and connector kit pre-installed for plug-n-play out of the box. Please choose the correct gun connector and desired liner for your machine. For example, K4532-2-10-45 comes with a K466-10 gun connector and .035-.045 liner. Please see "specs" tab for further breakdown.
Features
• Duty Cycle: 100% @ 350A (Mixed Gas) | 100% @ 350A (CO2)
• Wire Diameter: .035 - 5/64
• High Quality Copper Parts
• Curve Handle Design
• Tool-Less Rotating Gun Tube
Includes
• Magnum Pro Curve HDE 350 Gun
• Liner (chosen correct liner)
• Built-In Connector (choose correct gun connector)
• (1) KP2745-035 Contact Tip
• (1) 5/8" Thread On Nozzle with 1/8" Recess (KP2743-1-62R)
• (1) Thread-On-Diffuser (KP2747-1)
• (1) Insulator (KP2773-1)
The HDE Ready-Pak MIG guns come with the liner and connector kit pre-installed for plug-n-play out of the box. Please choose the correct gun connector and desired liner for your machine. For example, K4532-2-10-45 comes with a K466-10 gun connector and .035-.045 liner. Please see "specs" tab for further breakdown.
Features
• Duty Cycle: 100% @ 350A (Mixed Gas) | 100% @ 350A (CO2)
• Wire Diameter: .035 - 5/64
• High Quality Copper Parts
• Curve Handle Design
• Tool-Less Rotating Gun Tube
Includes
• Magnum Pro Curve HDE 350 Gun
• Liner (chosen correct liner)
• Built-In Connector (choose correct gun connector)
• (1) KP2745-035 Contact Tip
• (1) 5/8" Thread On Nozzle with 1/8" Recess (KP2743-1-62R)
• (1) Thread-On-Diffuser (KP2747-1)
• (1) Insulator (KP2773-1)
MPN: LINK4532
