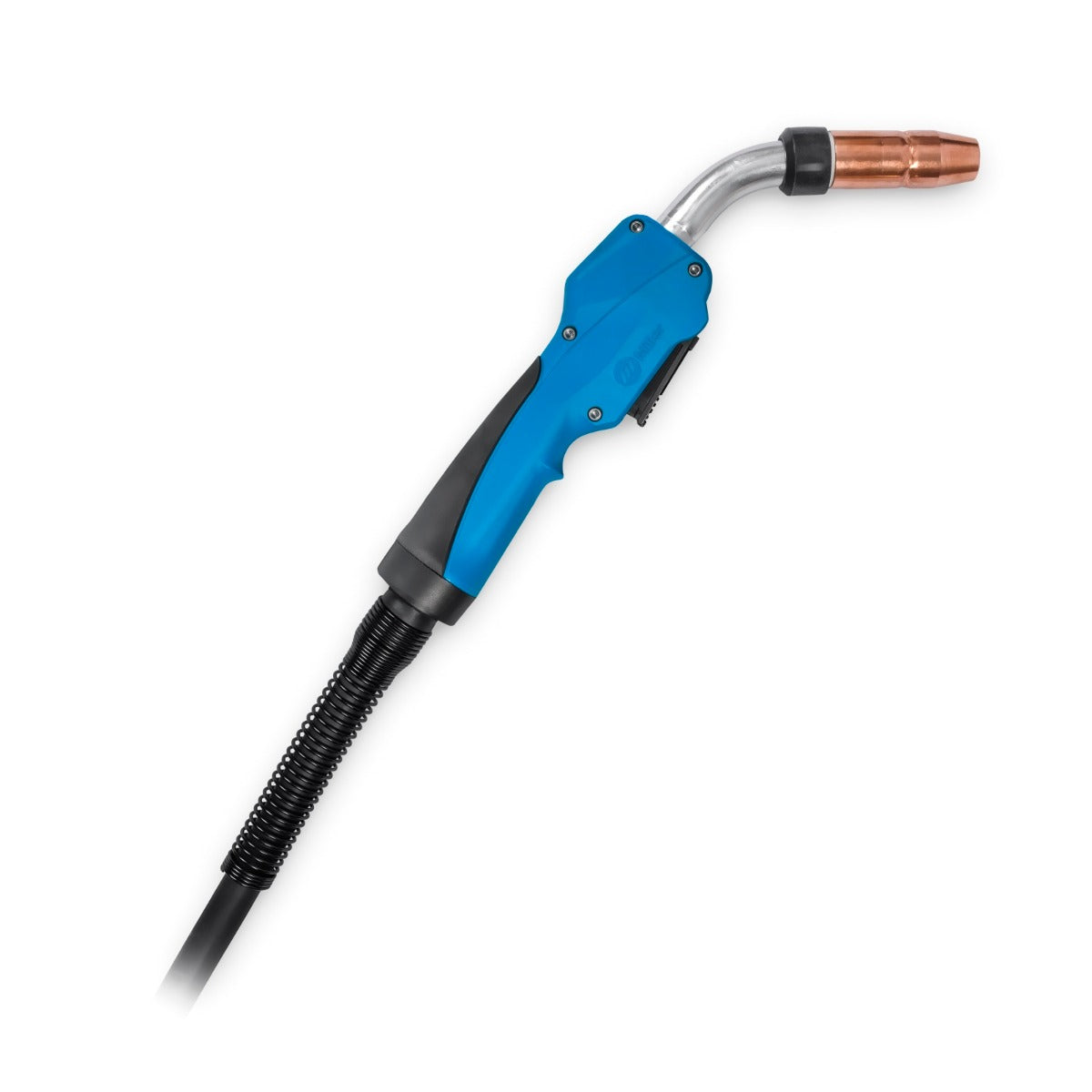

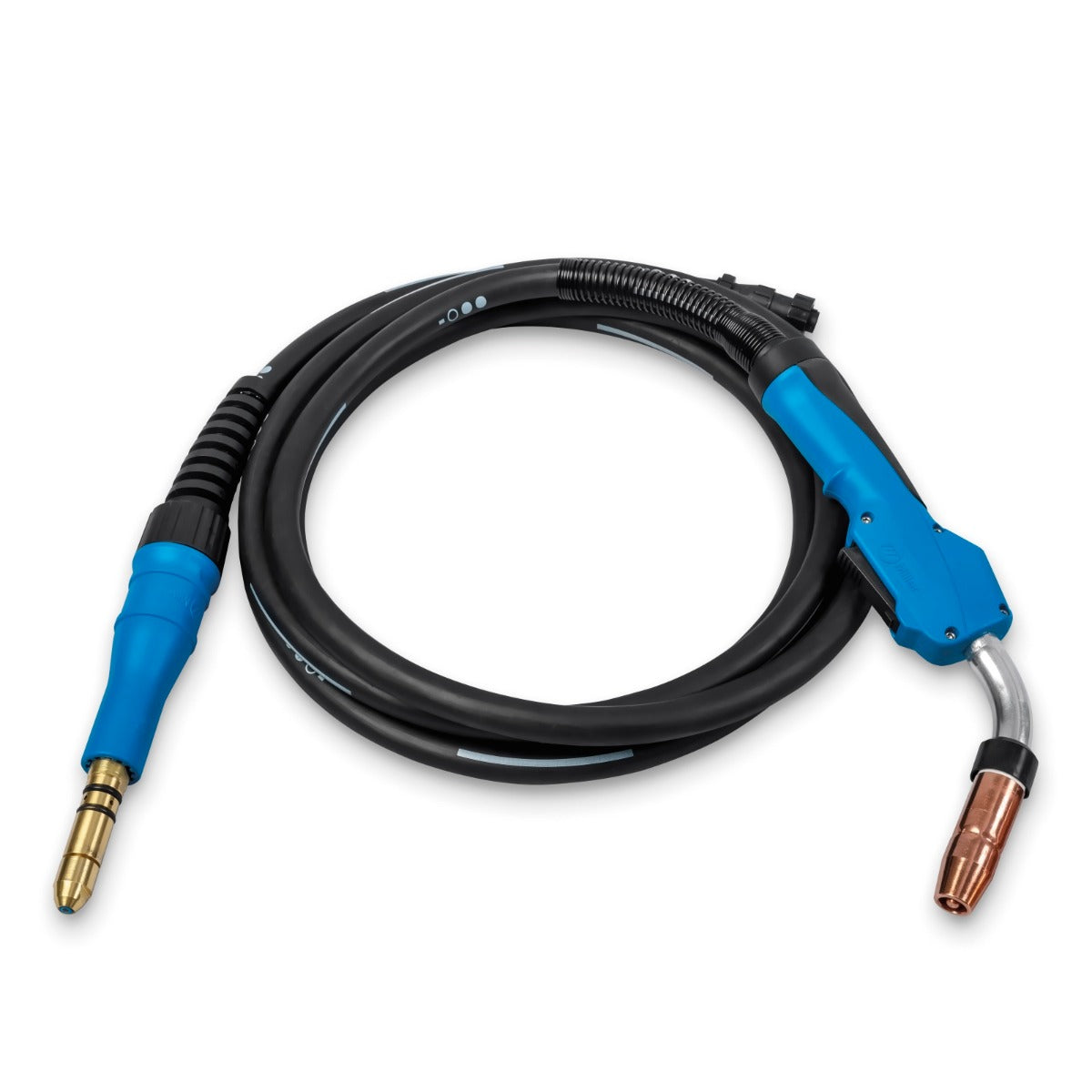

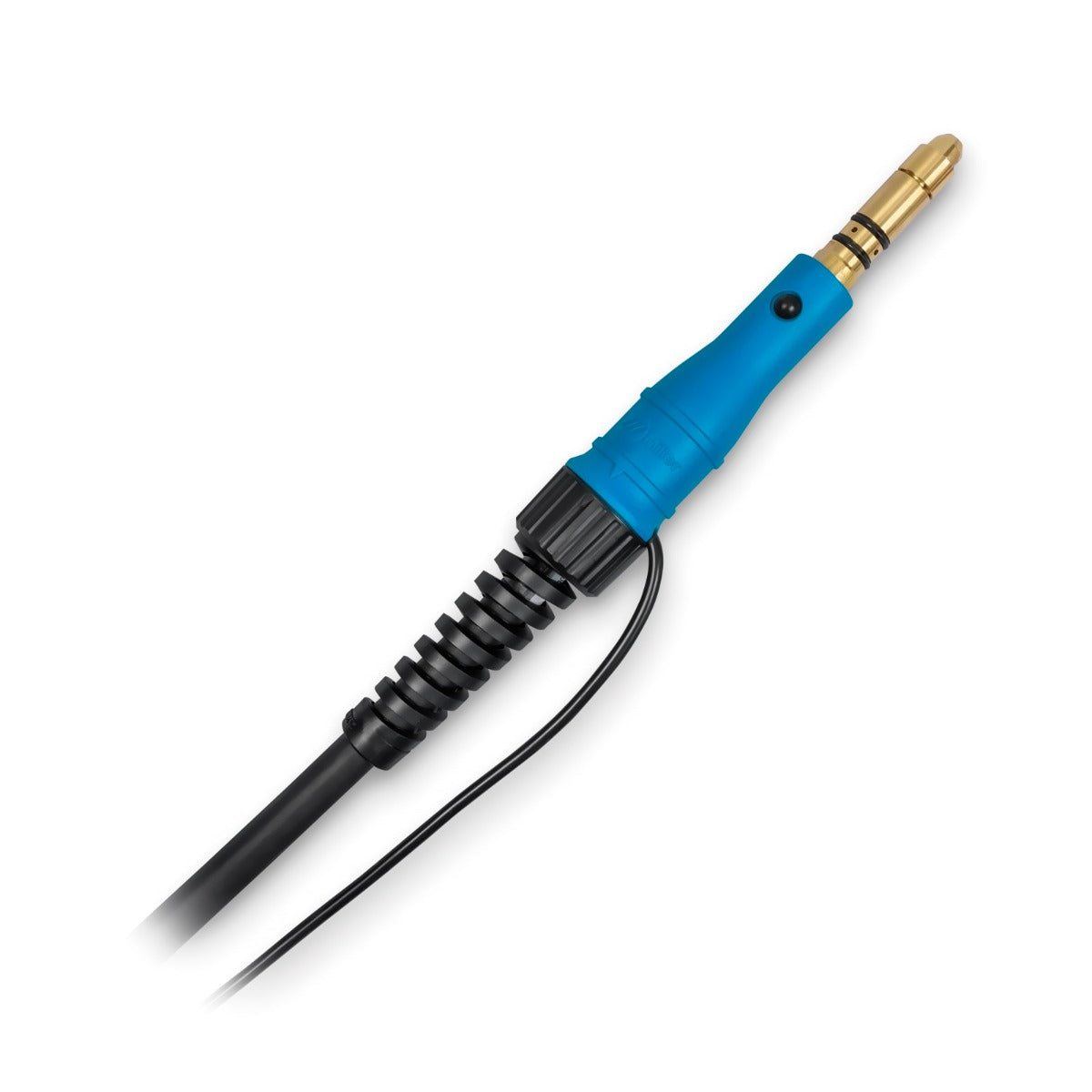

Miller AccuLock MDX 250 MIG Gun w/Bernard S Lock (1770043)
Select Size (Consumables):
Select Size (Consumables)
Quantity:
The Miller MDX 250 MIG gun has been redesigned with a few new features. The new ergonomic handle features and overmolding for improved grip and a rear swivel strain relief. The gun’s AccuLock consumables with dual-locked, front-loading liner ensures smooth, consistent wire feeding for reliable operation. This particular MIG gun utilizes Bernard's S Lock consumables, not Miller MDX AccuLock consumables. Miller AccuLock Lock consumables may be used, however you would need to swap out the diffuser, contact tip, and nozzle.
MDX 250 Features
• S Lock Consumables
• Pulse Welding Capable (With Pulse Machine)
• 100% Duty Cycle @ 250A CO2 | 60% With Mixed Gas
Compatible With
• Millermatic 212, 252, and 255
• Multimatic 200 and 255
Included
• MDX 250 Gun (Chosen Length)
• 5/8" Flush Nozzle (N-A5800C)
• 4 Contact Tips (2 Each of the Liner Chosen e.g. 1770043 Comes With (2) .035 and (2) .045)
• Owners Manual
Miller AccuLock MDX series consumables are designed to maximize wire feedability and simplify consumables replacement.
AccuLock MDX Features
Superior Feeding - The front-loading liner is centered and locked at both ends of the gun (without the use of set screws) to ensure smooth wire delivery to the contact tip. Plus, error-proof liner trimming ensures accurate replacement every time for reduced burnbacks, birdnests and erratic arc/wire chatter.
Long-Life Consumables - Tapered mating surfaces between the AccuLock contact tip and gas diffuser lock tips in place for maximized electrical conductivity and longer tip life.
Threaded Nozzle - Stays tight during use and cleaning due to the steel retaining ring on the diffuser.
MDX 250 Features
• S Lock Consumables
• Pulse Welding Capable (With Pulse Machine)
• 100% Duty Cycle @ 250A CO2 | 60% With Mixed Gas
Compatible With
• Millermatic 212, 252, and 255
• Multimatic 200 and 255
Included
• MDX 250 Gun (Chosen Length)
• 5/8" Flush Nozzle (N-A5800C)
• 4 Contact Tips (2 Each of the Liner Chosen e.g. 1770043 Comes With (2) .035 and (2) .045)
• Owners Manual
Miller AccuLock MDX series consumables are designed to maximize wire feedability and simplify consumables replacement.
AccuLock MDX Features
Superior Feeding - The front-loading liner is centered and locked at both ends of the gun (without the use of set screws) to ensure smooth wire delivery to the contact tip. Plus, error-proof liner trimming ensures accurate replacement every time for reduced burnbacks, birdnests and erratic arc/wire chatter.
Long-Life Consumables - Tapered mating surfaces between the AccuLock contact tip and gas diffuser lock tips in place for maximized electrical conductivity and longer tip life.
Threaded Nozzle - Stays tight during use and cleaning due to the steel retaining ring on the diffuser.
MPN: MIL1770043
UPC: 662991614514
