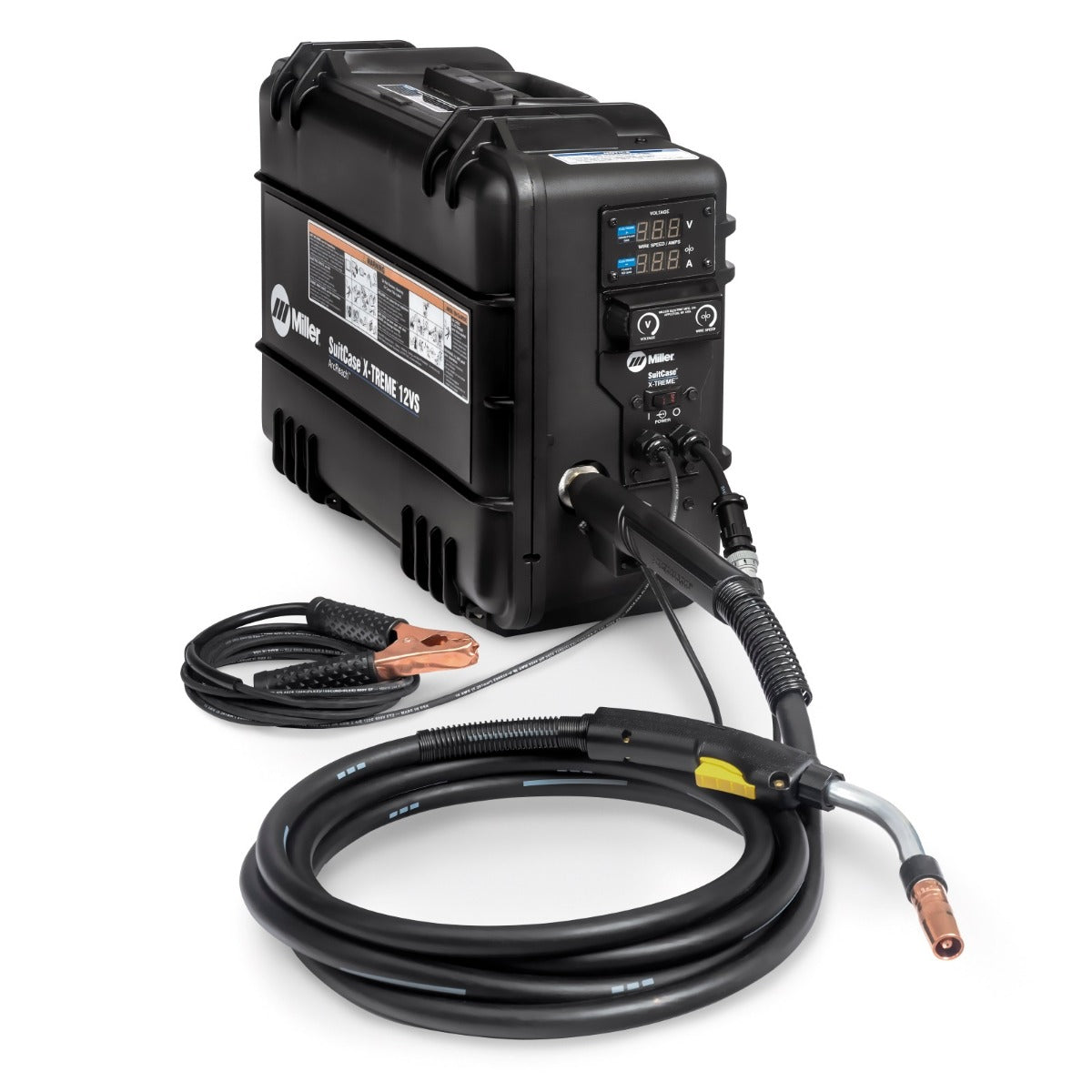

Miller ArcReach Suitcase 12 w/Bernard Q3 Gun (951729001)
The Miller ArcReach Suitcase 12 feeder allows the operator to adjust the output voltage at the feeder, saving a trip back to the power supply - no extra control cable to purchase. ArcReach equipped power sources and wire feeders work with non-ArcReach equipment, however the complete benefits are only realized with the ArcReach system.
Suitcase Features
• Electronic wire feed speed with control tachometer
• Digital meters with sunvision technology
• Front panel has trigger hold, wire jog, and gas purge
• Ability to change wire with feeder in upright position
• Dual schedule capable (dual schedule switch sold separately)
• Gun locking tab prevents gun from being pulled out prematurely
• Recessed gas inlet on rear of case

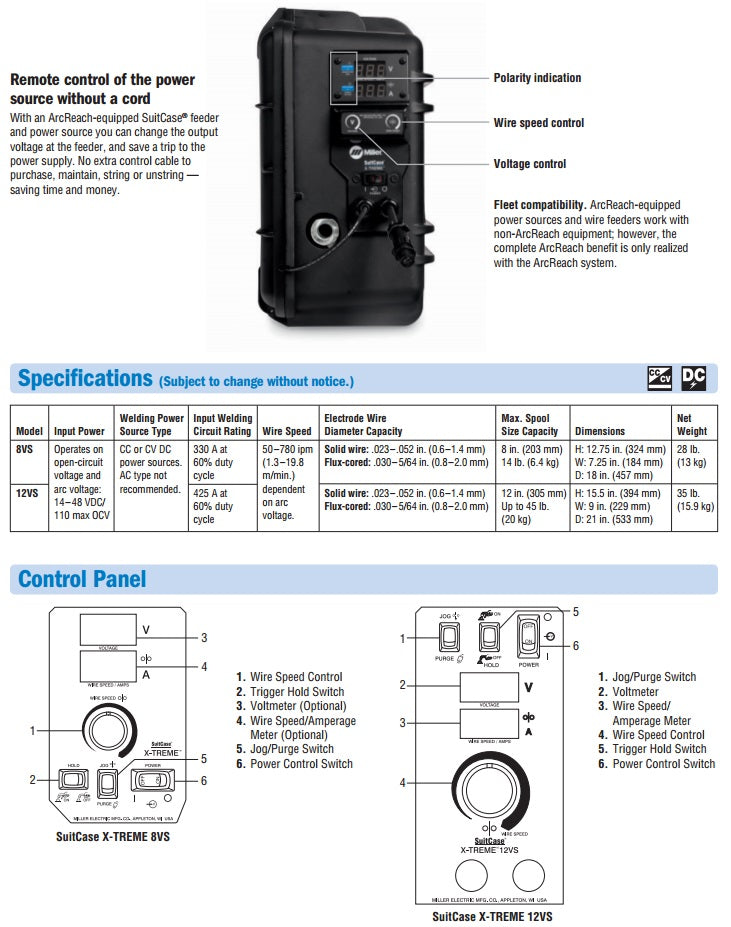

Quick Specs
• Input Power: 14-48 VDC operating range
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter Capacity: .023 - .052 Solid Wire | .030 - 5/64 Flux Cored
• Max Wire Diameter: 12" or 45lb Spool
• Dims: 15.5" H x 9" W x 21" D
• Weight: 35lbs
Includes
• 12 ArcReach feeder (12-Inch Spool Capacity)
• 15' Bernard 300A Q gun (Accepts Acculock "S" Consumables)
• Acculock S contact tips: (3) .045 | (2) .052
• .045-1/16 V-Knurled drive roll kit (Guides already installed on feeder)
Suitcase Features
• Electronic wire feed speed with control tachometer
• Digital meters with sunvision technology
• Front panel has trigger hold, wire jog, and gas purge
• Ability to change wire with feeder in upright position
• Dual schedule capable (dual schedule switch sold separately)
• Gun locking tab prevents gun from being pulled out prematurely
• Recessed gas inlet on rear of case
Quick Specs
• Input Power: 14-48 VDC operating range
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter Capacity: .023 - .052 Solid Wire | .030 - 5/64 Flux Cored
• Max Wire Diameter: 12" or 45lb Spool
• Dims: 15.5" H x 9" W x 21" D
• Weight: 35lbs
Includes
• 12 ArcReach feeder (12-Inch Spool Capacity)
• 15' Bernard 300A Q gun (Accepts Acculock "S" Consumables)
• Acculock S contact tips: (3) .045 | (2) .052
• .045-1/16 V-Knurled drive roll kit (Guides already installed on feeder)
MPN: MIL951729001
UPC: 715959701365
