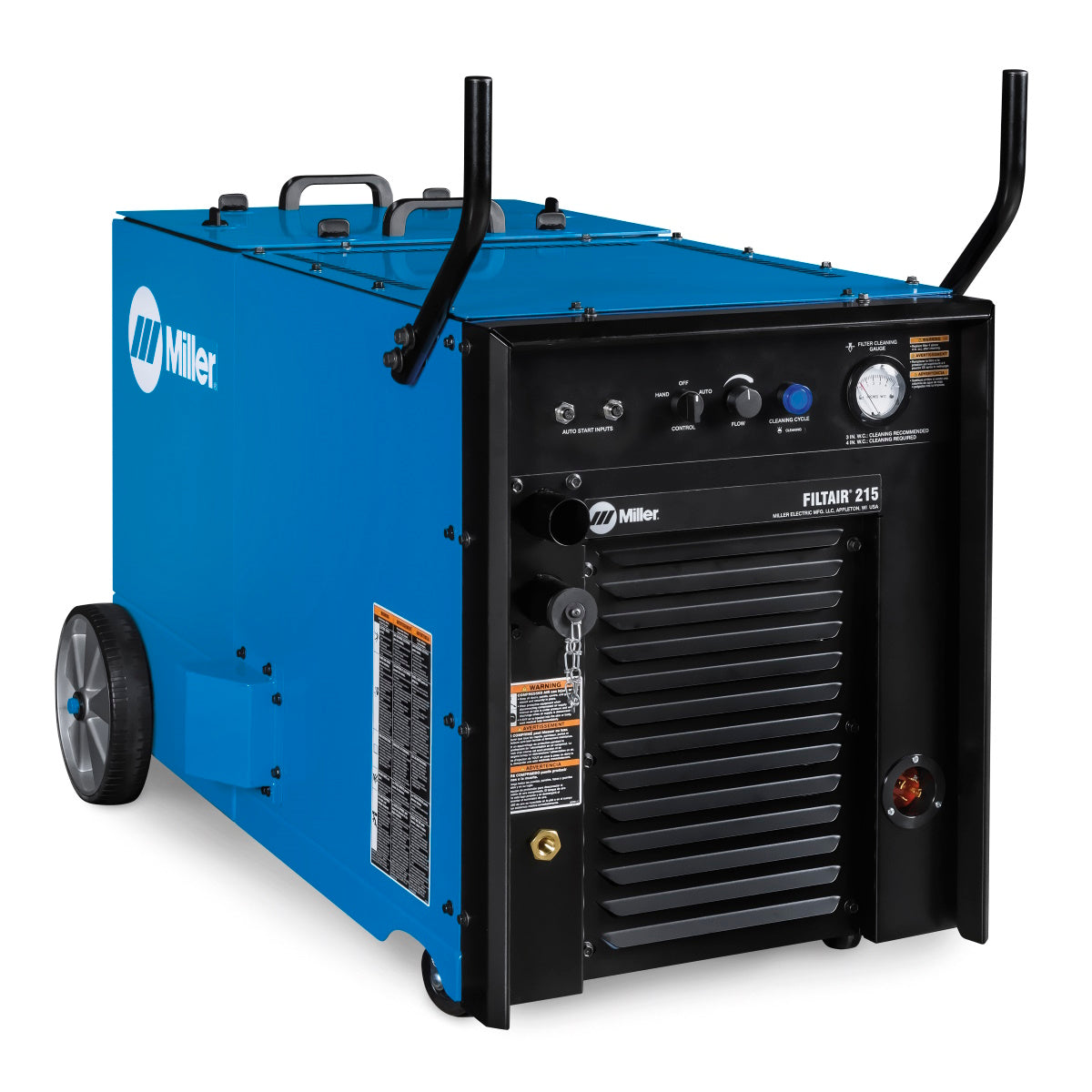

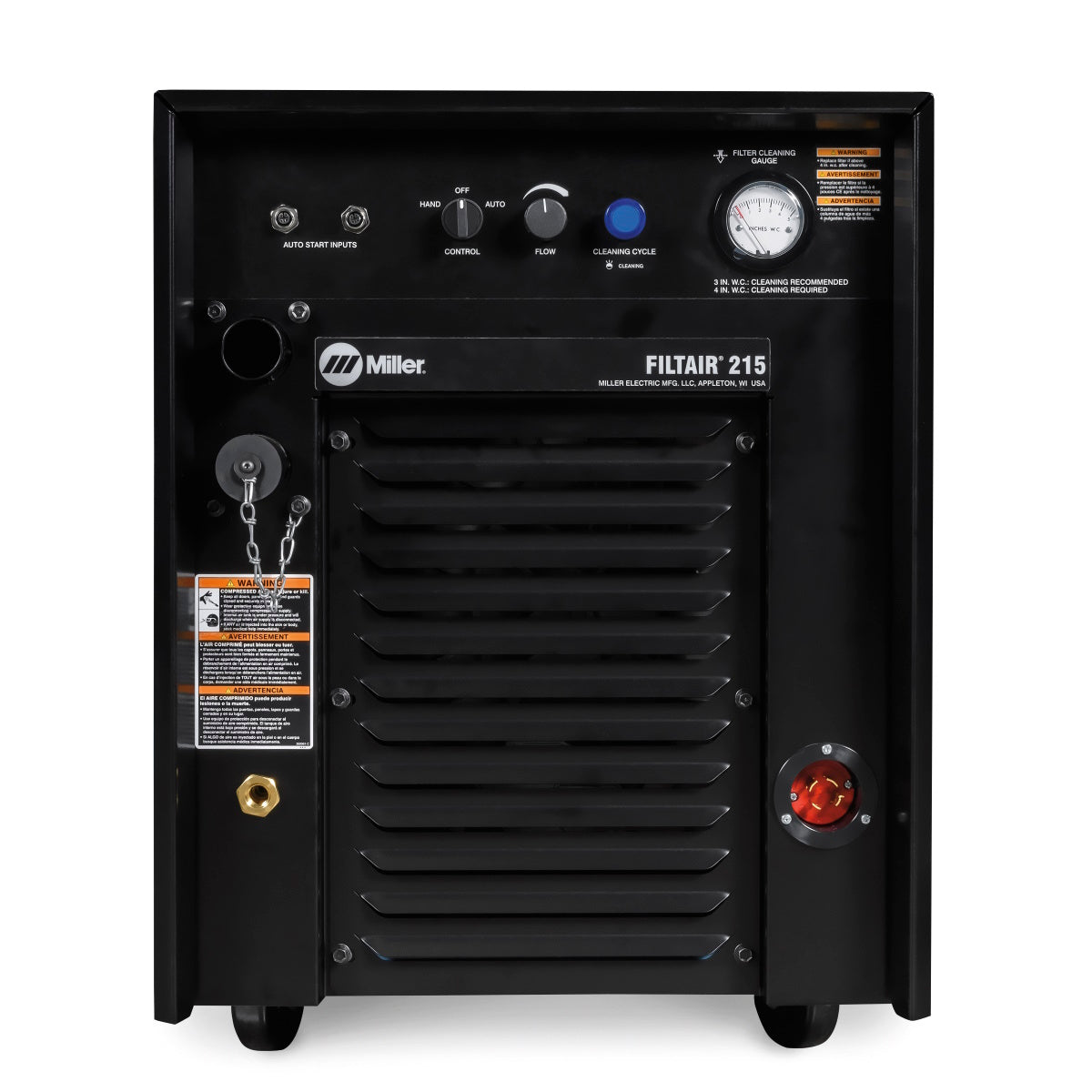

Miller Filtair 215 Industrial Fume Extractor (301674)
The Filtair 215 is a versatile, high-vacuum system that maximizes flow capacity for multiple operators using portable extraction attachments such as nozzles and fume guns for efficient multi-use weld fume capture at the source. This extractor requires 3-phase, 460V power.
Features
• 215 cfm airflow rating provides effective fume capture with multiple attachments
• MERV 16 rated filter captures 95 percent or more of weld fume
• Over 130-foot reach between attachments

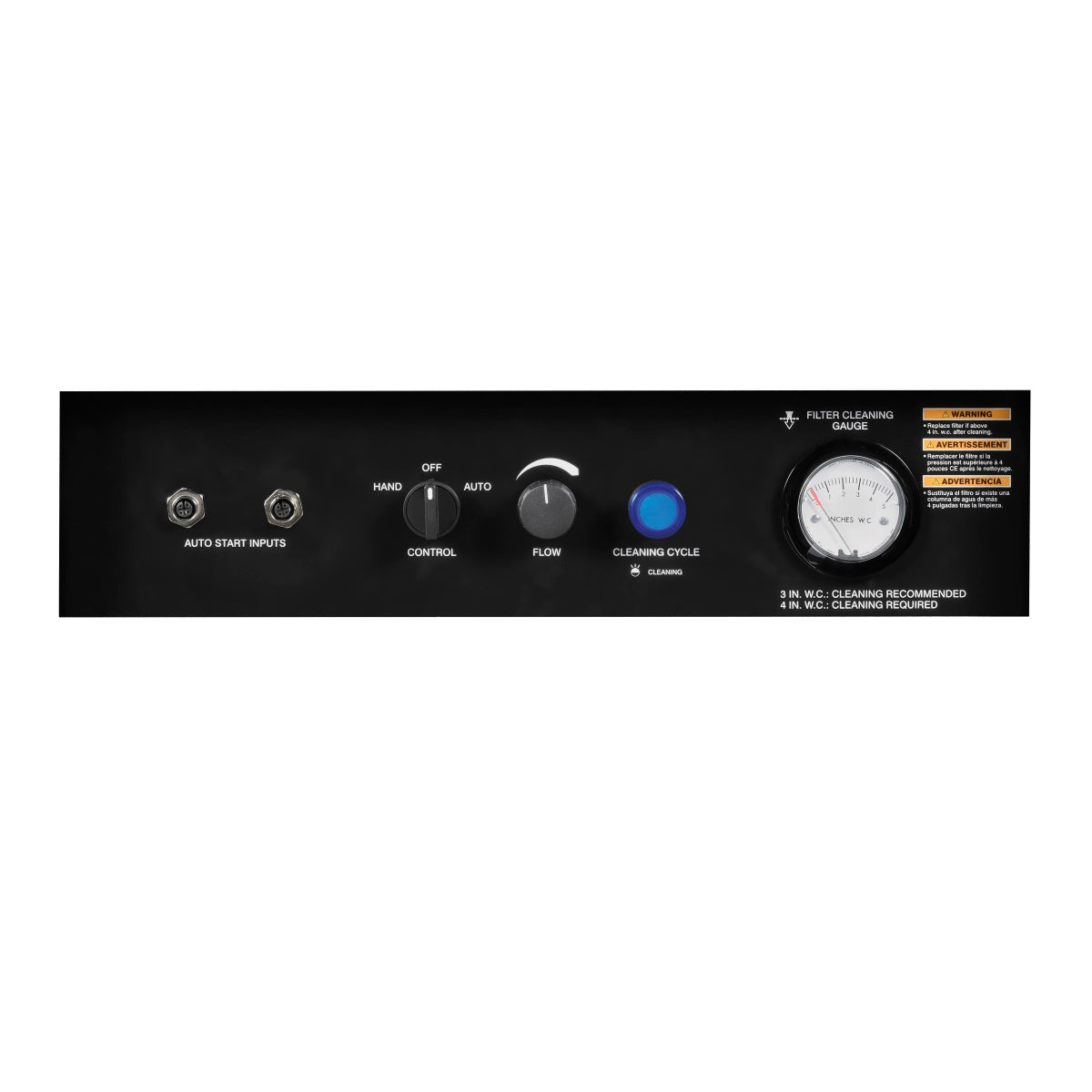

• Variable flow control adjust to the proper airflow for any application
• Variety of accessories compatible with fume extraction guns, funnel nozzles and slotted nozzles
• Self-cleaning filter mechanism a pulse cleaning cycle is automatically activated when needed, extending filter life by up to eight times. (Compressed air supply of 80–100 psi (3.8–4.8 kPa) is required to activate self-cleaning mechanism)
• Particulate disposal bin is easy to access with handles that release drawer located on back of machine
•Bag-out filter change provides a clean and convenient filter replacement process
• Flat top design capable of holding dual wire feeder, with storage handles for fume guns and hoses
• Large rear wheels allow for easy movement over weld cables
• Auto start-stop (optional part # 292774) remains off until the sensor detects torch activity
Quick Specs
• Filter Media: 75 Sq Ft
• Airflow: 215 CFM
• Sound Level at 5 Ft: 67-70 db (Low) | 78-80 db (High)
• Motor: 5.5 Hp | 4.0 Kw
• Input Power: 460V, 3-Phase Only
• Dims: 30" H x 22" W x 46" D
• Weight 390 lbs
• Warranty: 2 Years
Includes
• Filtair 215 Extractor

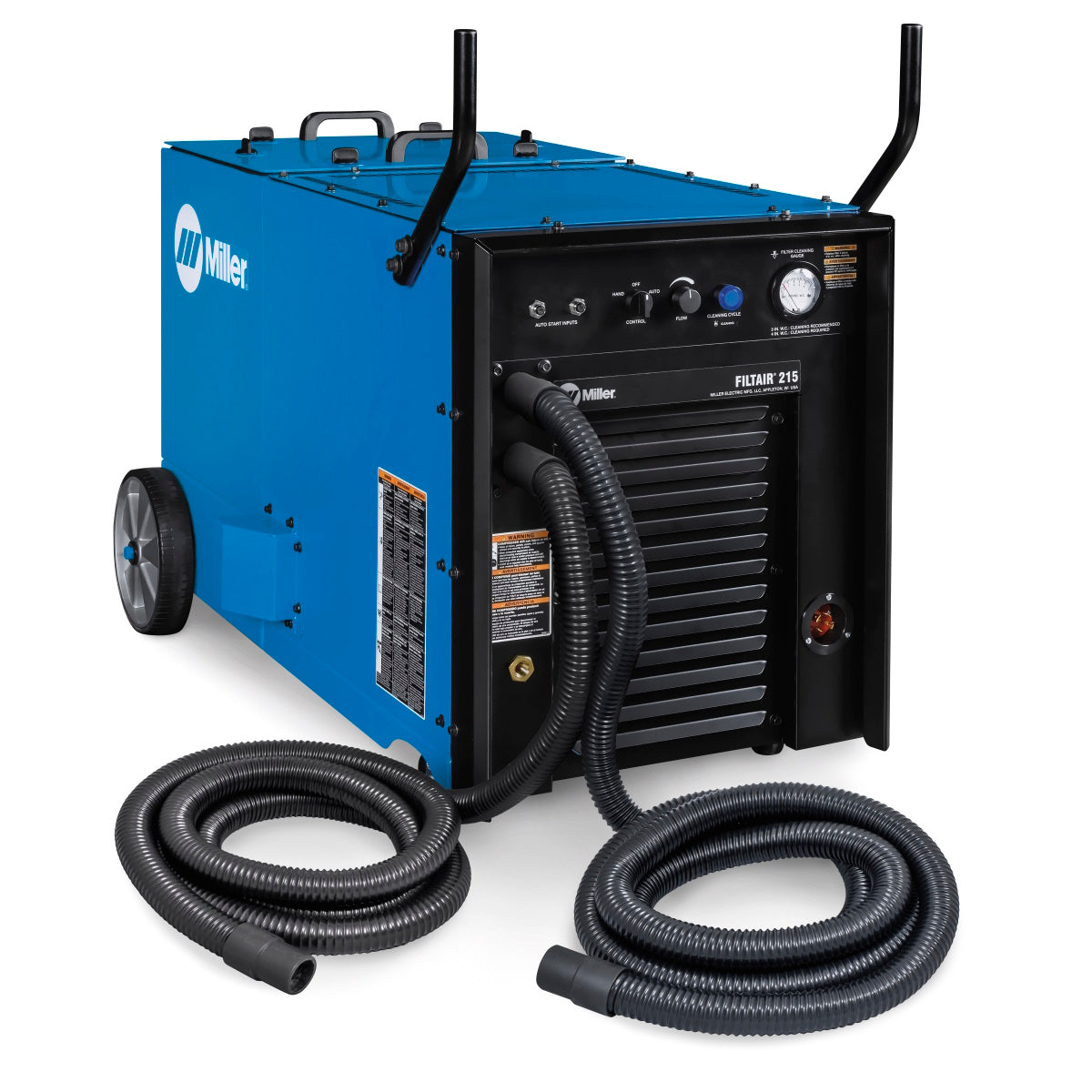

• (1) 8 Ft Collection Hose
Features
• 215 cfm airflow rating provides effective fume capture with multiple attachments
• MERV 16 rated filter captures 95 percent or more of weld fume
• Over 130-foot reach between attachments
• Variable flow control adjust to the proper airflow for any application
• Variety of accessories compatible with fume extraction guns, funnel nozzles and slotted nozzles
• Self-cleaning filter mechanism a pulse cleaning cycle is automatically activated when needed, extending filter life by up to eight times. (Compressed air supply of 80–100 psi (3.8–4.8 kPa) is required to activate self-cleaning mechanism)
• Particulate disposal bin is easy to access with handles that release drawer located on back of machine
•Bag-out filter change provides a clean and convenient filter replacement process
• Flat top design capable of holding dual wire feeder, with storage handles for fume guns and hoses
• Large rear wheels allow for easy movement over weld cables
• Auto start-stop (optional part # 292774) remains off until the sensor detects torch activity
Quick Specs
• Filter Media: 75 Sq Ft
• Airflow: 215 CFM
• Sound Level at 5 Ft: 67-70 db (Low) | 78-80 db (High)
• Motor: 5.5 Hp | 4.0 Kw
• Input Power: 460V, 3-Phase Only
• Dims: 30" H x 22" W x 46" D
• Weight 390 lbs
• Warranty: 2 Years
Includes
• Filtair 215 Extractor
• (1) 8 Ft Collection Hose
MPN: MIL301674
UPC: 715959700948
