Miller Filtair SWX Add-On Fume Extraction Arm (951519-951521)
Lead time: 1-2 Weeks
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
Quantity:

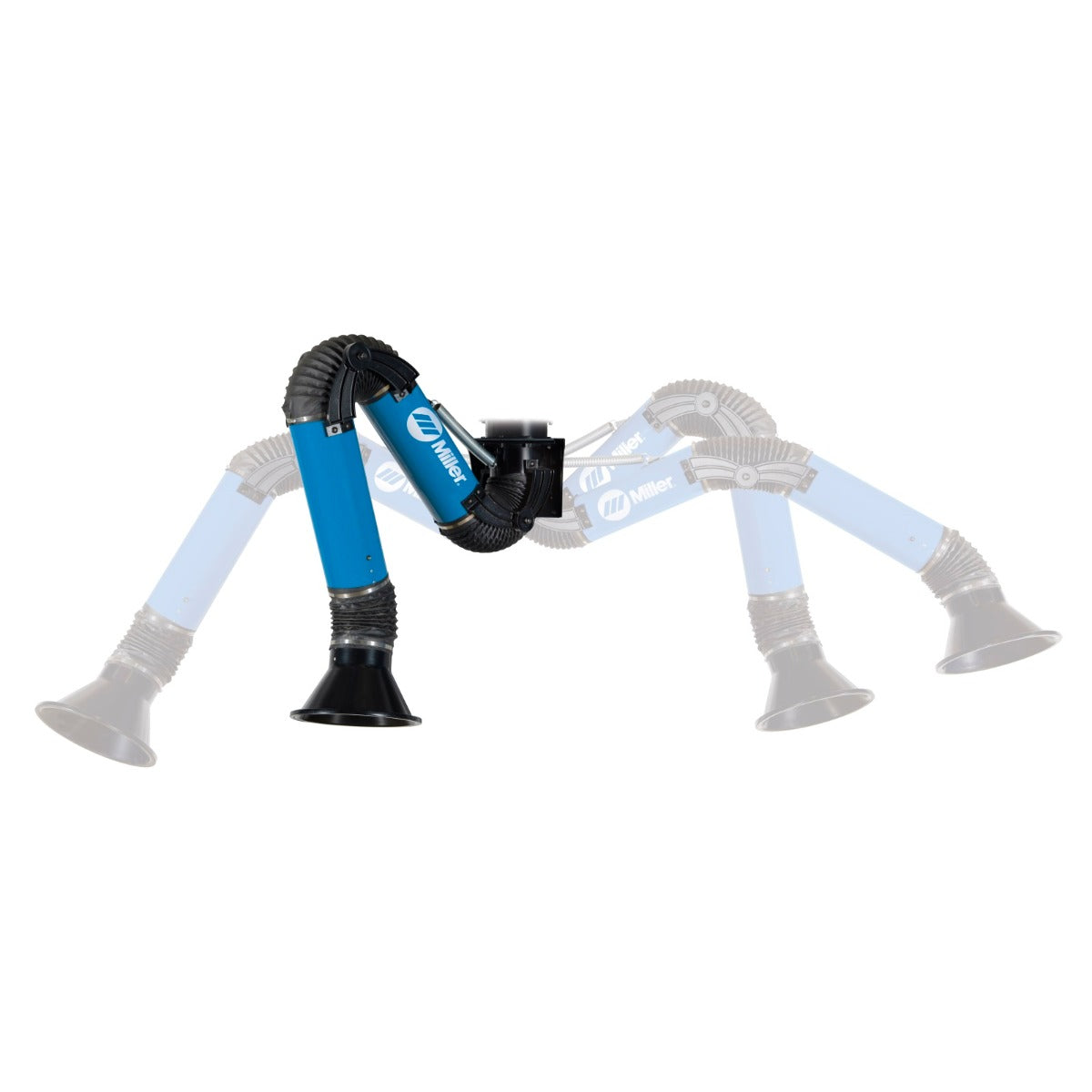

The Filtair SWX add-on extraction arm comes in 7, 10, or 12 foot lengths. These items include a blower, mounting bracket, duct and dampers, and an on/off control box. This item does not include the fume extractor cabinet, simply an add-on arm for a dual-arm setup.
Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.
Quick Specs:
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Arm Dims: 8-inch diameter (7, 10, or 12 foot lengths)

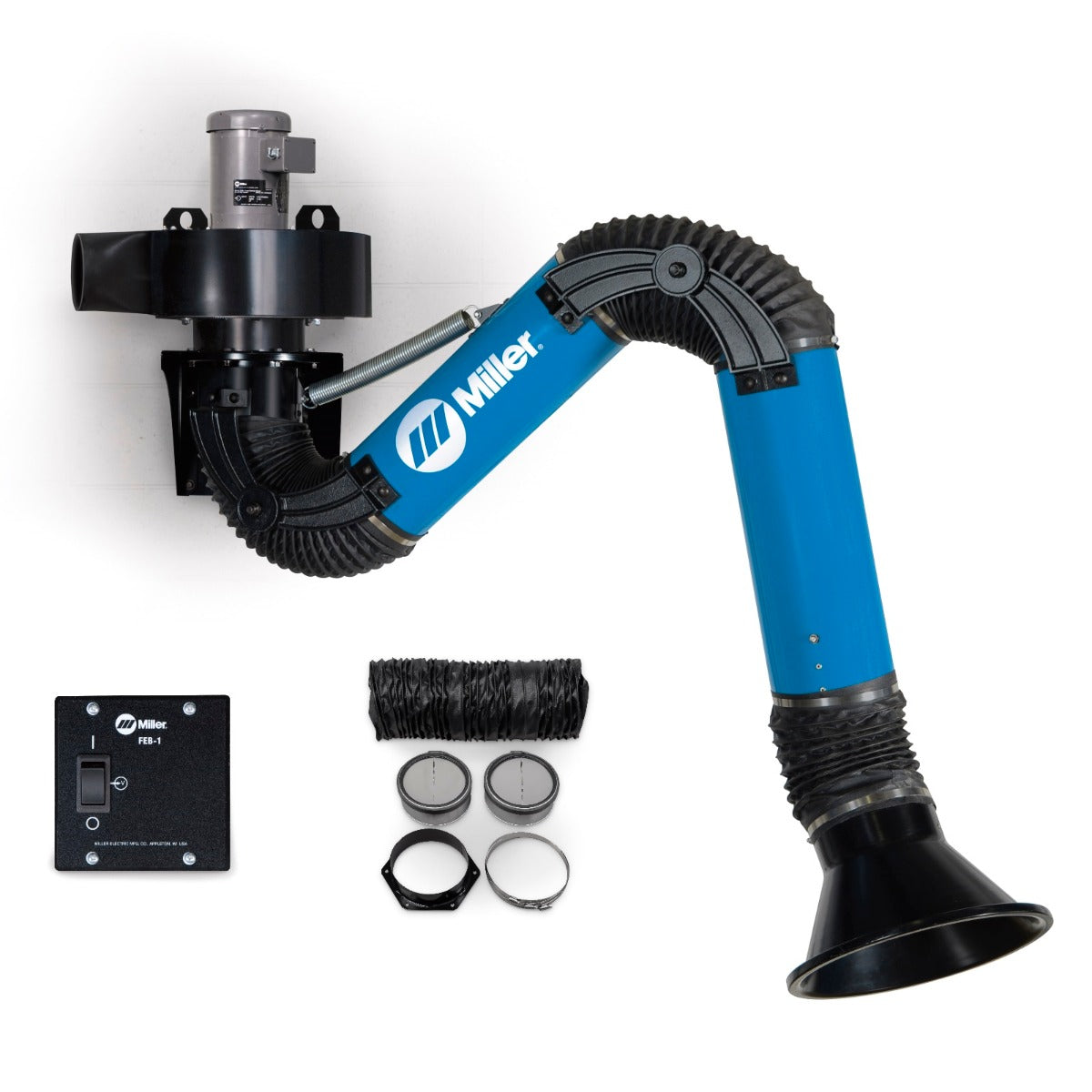

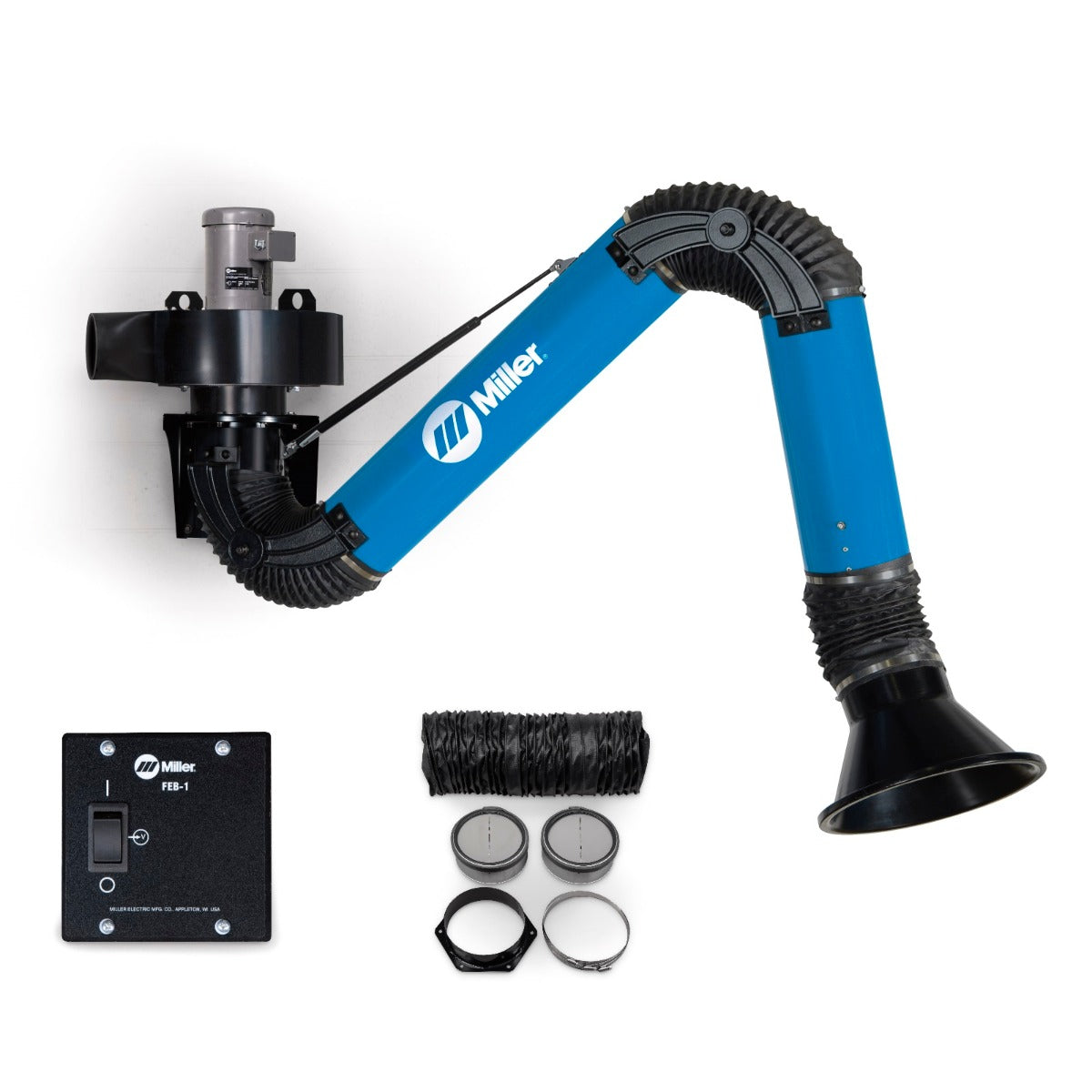

Comes With:
• Extraction arm (8-inch diameter) (chosen length)
• Mounting bracket for blower/arm
• 115V Blower

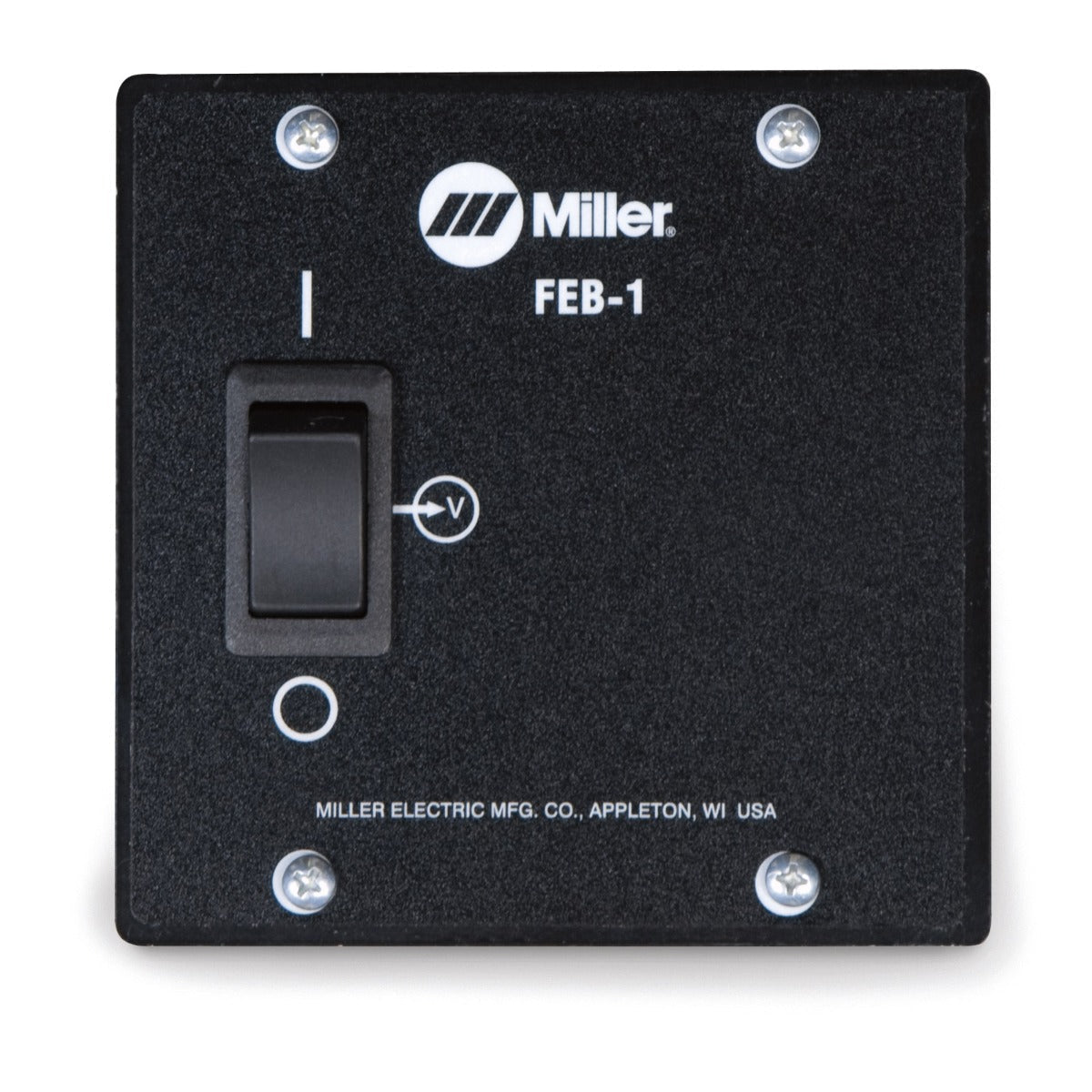

• 115V On/Off control box
• Duct and Backdraft dampers
• 115V Wiring Not Included
