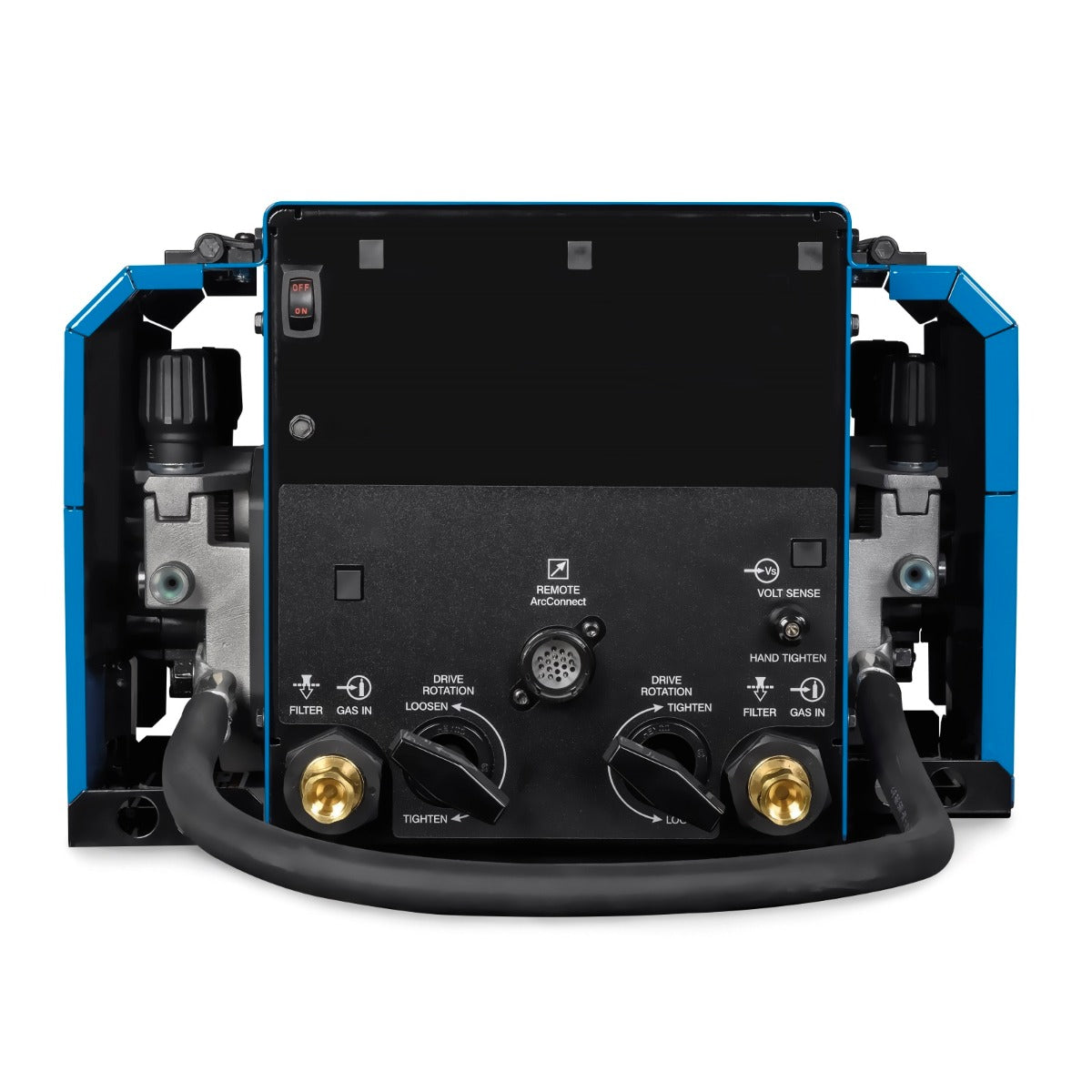

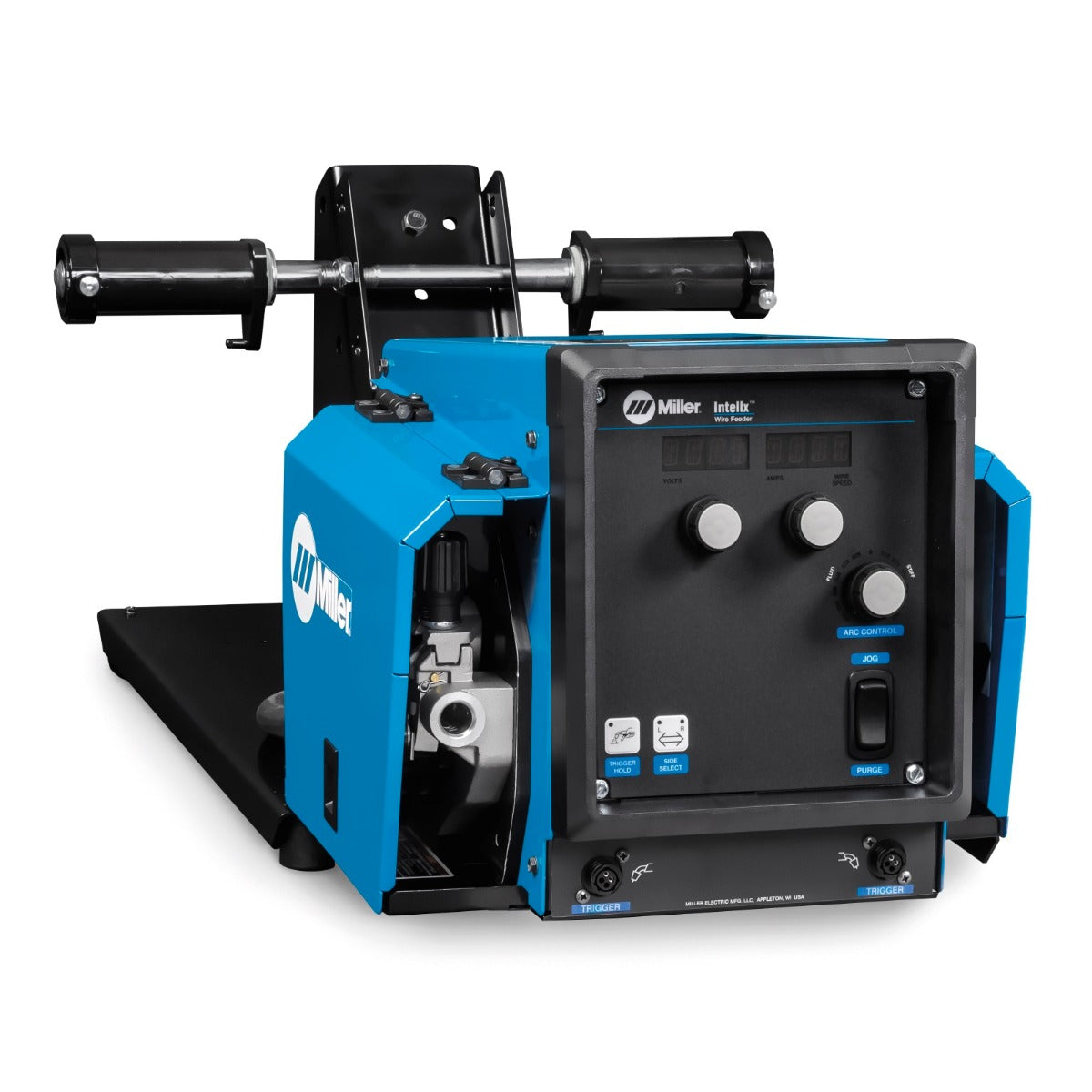

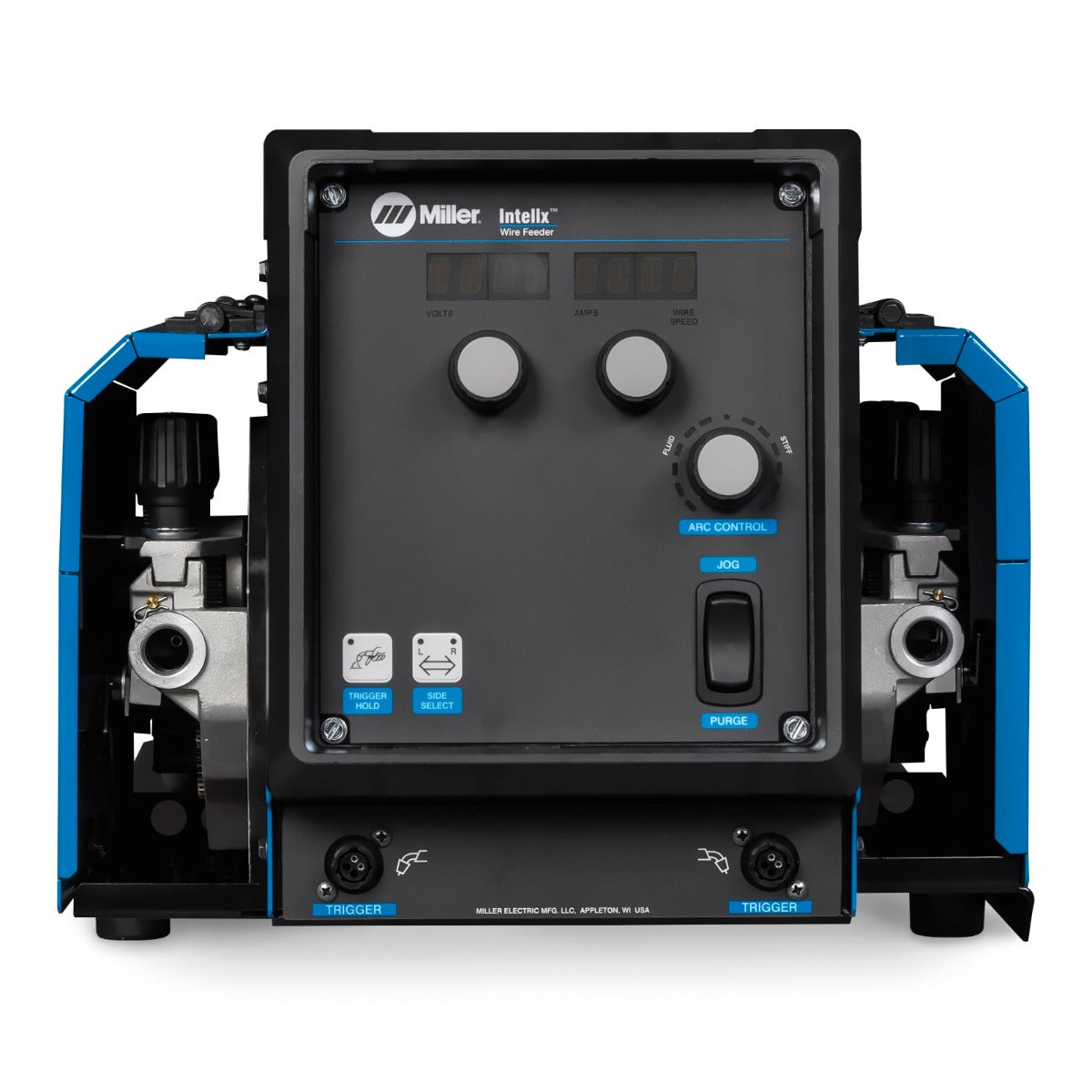

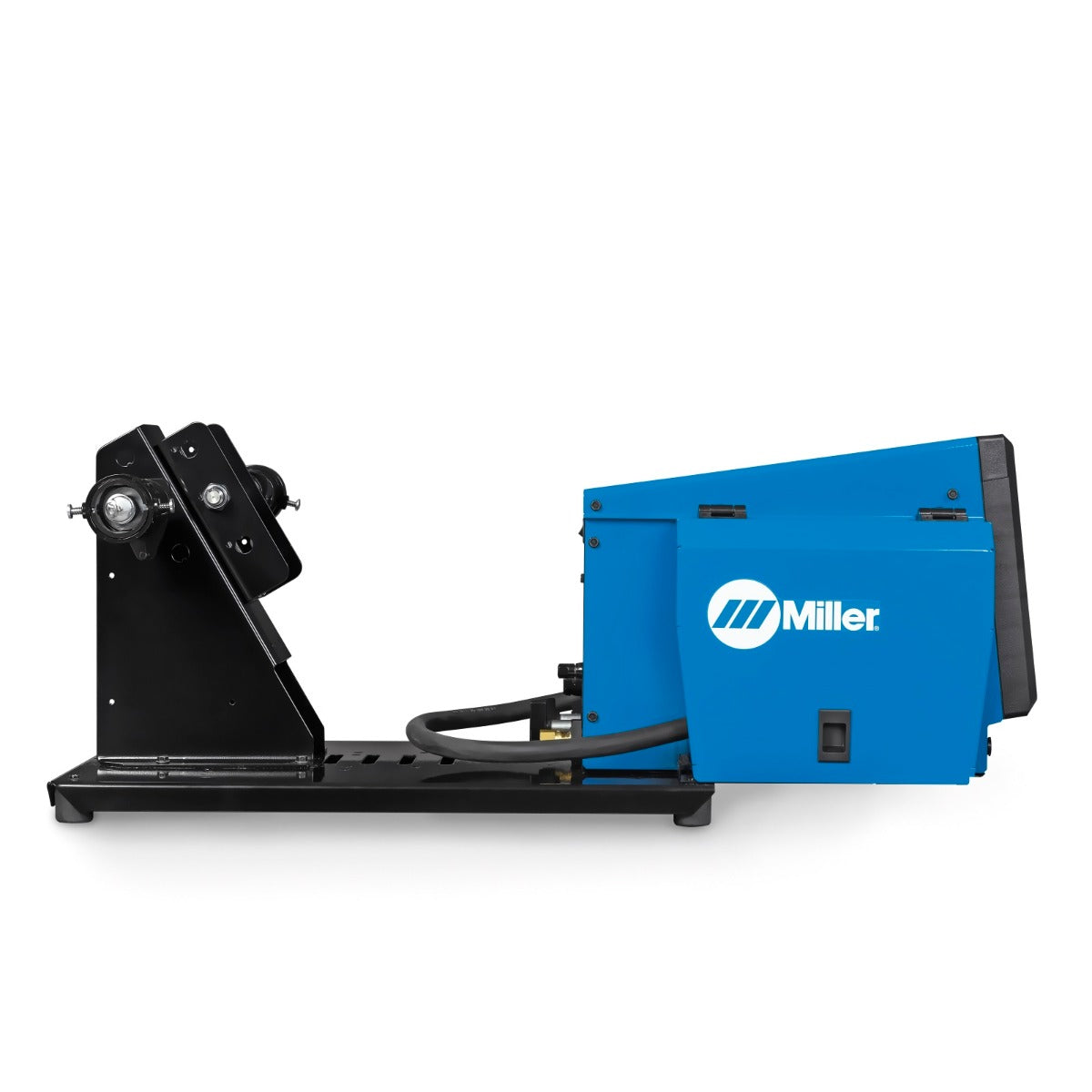

Miller Intellx Dual Wire Feeder w/15 Ft Bernard MIG Guns (951815001)
The Miller Intellx wire feeder is designed to be used with the Deltaweld 350 power source. The Intellx feeders come with digital meters, remote voltage, arc control, and jog/purge control. The drive system comes with a balanced-pressure drive roll design that feeds wire in its truest and straightest form for consistent performance. The accu-mate connection aligns gun perfectly in the drive-roll carrier, preventing the gun from being pulled loose and providing consistent wire feeding.

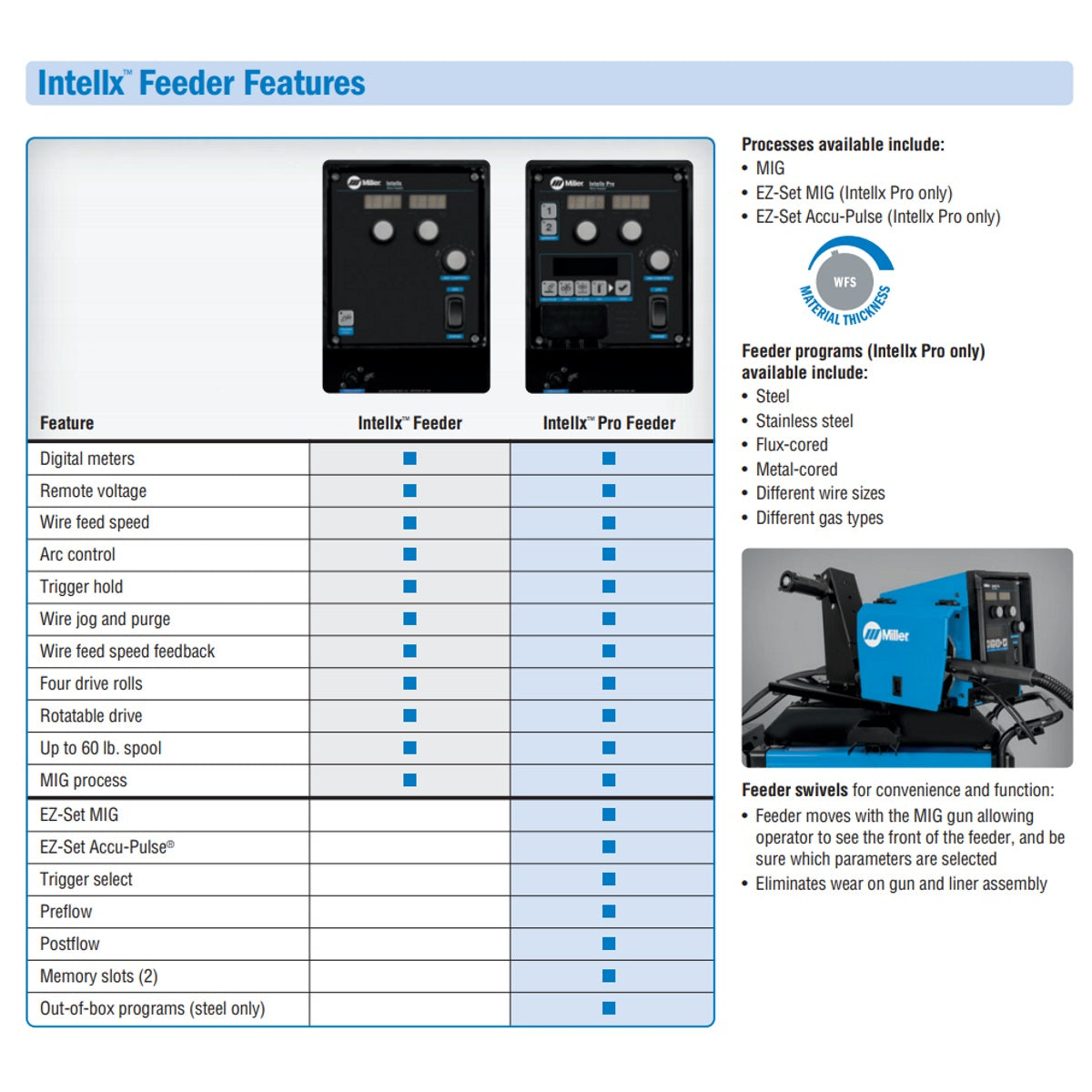

Features
• Digital Display
• Arc Control for fine tuning
• Jog and Purge Button

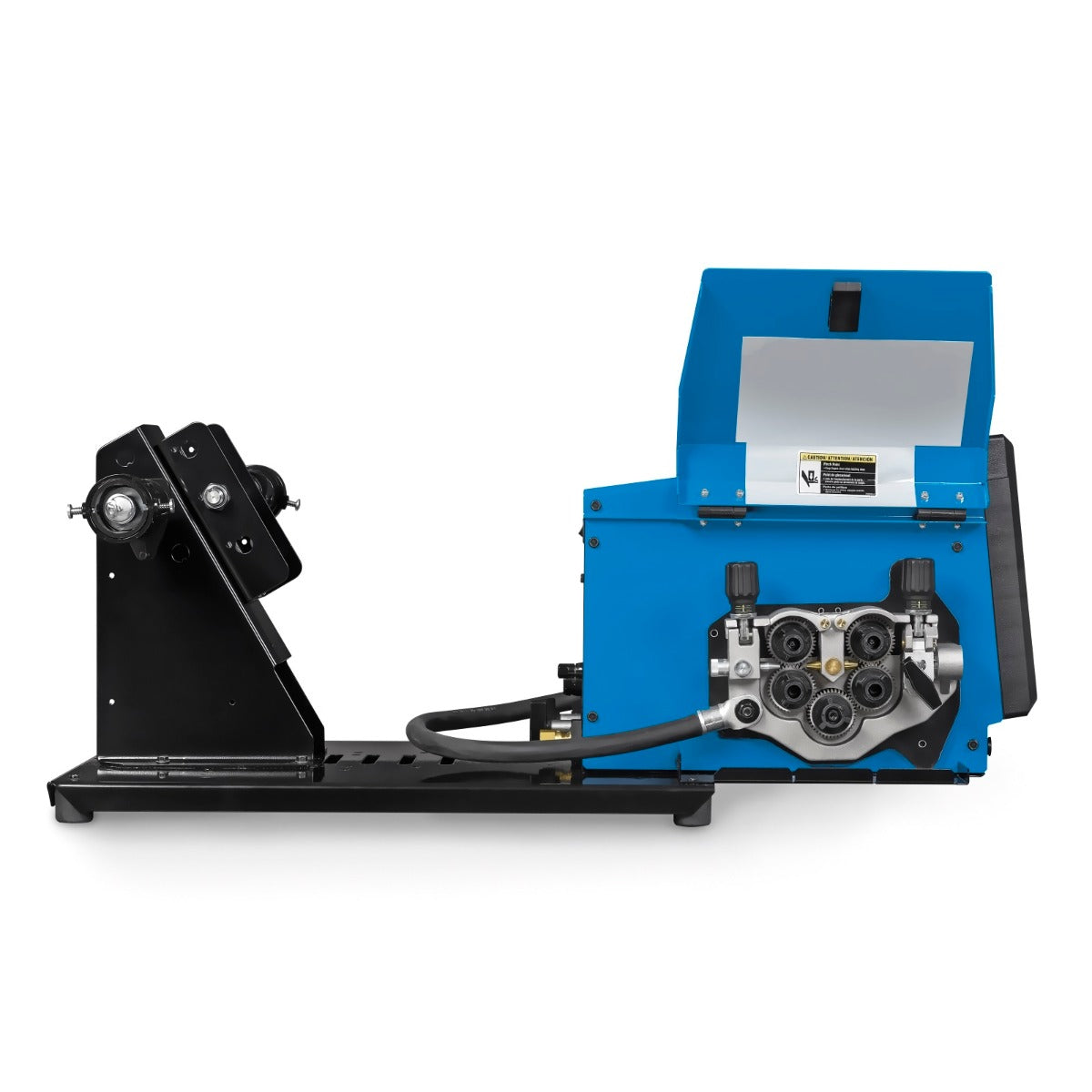

• Balanced-pressure drive roll design and tensioners
• Rotatable drive assembly
Quick Specs
• Duty Cycle: 60% @ 600A
• Wire Feed Speed: 50-780 IPM
• Wire Diameter: .023-5/64
• Max Spool Size: 18 inches | 60 lbs
• Weight: 44.8 lbs
• Dimensions: 16.25"H x 12.38"W x 27.88"L

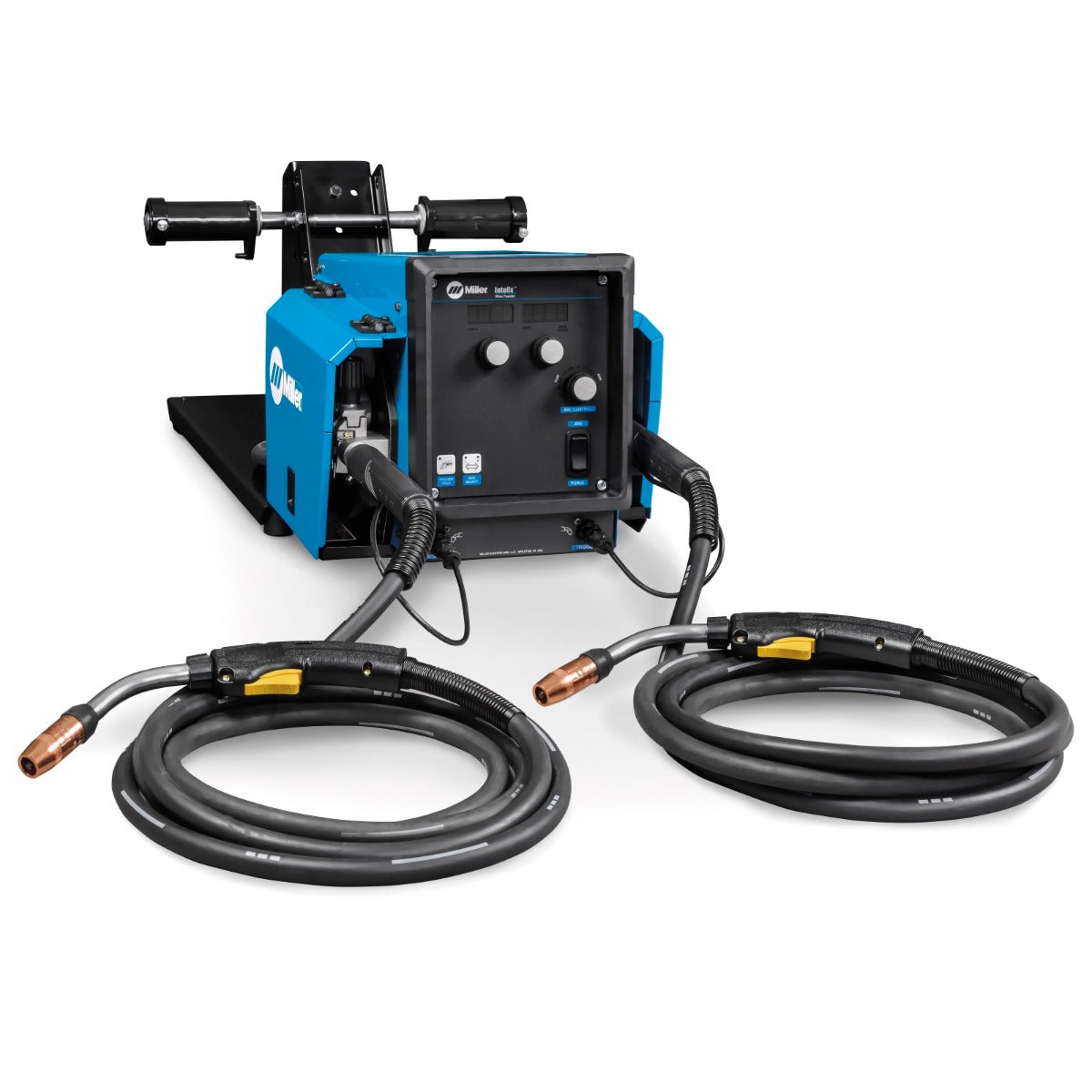

Includes
• Intellx Wire Feeder
• (2) 15 Ft 300A Bernard BTB Gun
• (2) .035/.045 V-Groove Drive Rolls
• (2 Sets) Centerfire Contact Tips (3) .035 | (2) .045
Features
• Digital Display
• Arc Control for fine tuning
• Jog and Purge Button
• Balanced-pressure drive roll design and tensioners
• Rotatable drive assembly
Quick Specs
• Duty Cycle: 60% @ 600A
• Wire Feed Speed: 50-780 IPM
• Wire Diameter: .023-5/64
• Max Spool Size: 18 inches | 60 lbs
• Weight: 44.8 lbs
• Dimensions: 16.25"H x 12.38"W x 27.88"L
Includes
• Intellx Wire Feeder
• (2) 15 Ft 300A Bernard BTB Gun
• (2) .035/.045 V-Groove Drive Rolls
• (2 Sets) Centerfire Contact Tips (3) .035 | (2) .045
MPN: MIL951815001
UPC: 715959674584
