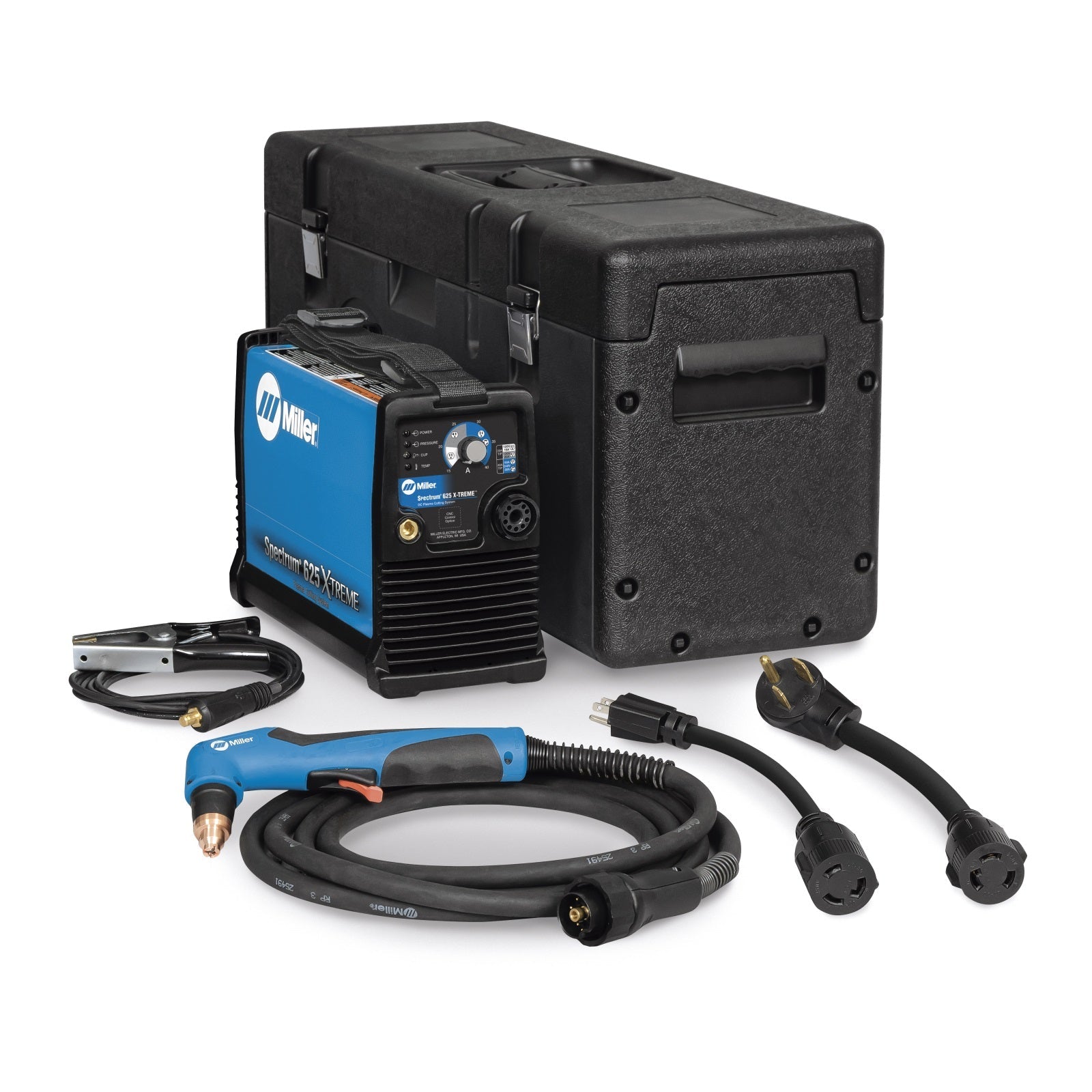

Miller Spectrum 625 X-Treme Plasma Cutter with 20 ft. Torch (907579001)
The Miller Spectrum 625 X-Treme with 20 ft. Torch packs big cutting power in a small package. The industry's most portable and powerful 40-amp plasma cutter offers 5/8 in. mild steel cutting, easy connection to 120V or 240V input with Auto-Line technology and MVP Adapters.
Ultra-Quick Connect XT40 Torch
Connect and disconnect at your leisure. The old Spectrum's were hard-wired so the torch cable was subjected to added wear and tear and storage was a pain. The Ultra-Quick Connect solves that problem; allowing you to quickly disconnect the torch cable for easy storage.
Rated Cutting Capacity
The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
Auto-Line and MVP (multi-voltage plug)
Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Miller’s multi-voltage plug (MVP) allows connection to 120 or 240 V receptacles without tools—choose the plug that fits the receptacle and connect it to the power cord.
Automatic Air Regulation
The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting performance.
Protective X-CASE
Miller's X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plugs, consumable box, as well as gloves, eye protection, etc.
XT40 Torch
Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy.
Auto-Refire Technology
Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
Portability
Portable in the shop or at the job site—at 23 lbs the shoulder strap allows the end user to easily move from location to location.
Ultra-Quick Connect XT40 Torch
Connect and disconnect at your leisure. The old Spectrum's were hard-wired so the torch cable was subjected to added wear and tear and storage was a pain. The Ultra-Quick Connect solves that problem; allowing you to quickly disconnect the torch cable for easy storage.
Rated Cutting Capacity
The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
Auto-Line and MVP (multi-voltage plug)
Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Miller’s multi-voltage plug (MVP) allows connection to 120 or 240 V receptacles without tools—choose the plug that fits the receptacle and connect it to the power cord.
Automatic Air Regulation
The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting performance.
Protective X-CASE
Miller's X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plugs, consumable box, as well as gloves, eye protection, etc.
XT40 Torch
Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy.
Auto-Refire Technology
Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
Portability
Portable in the shop or at the job site—at 23 lbs the shoulder strap allows the end user to easily move from location to location.
MPN: MIL907579001
UPC: 715959601689
Phase: Single Phase
