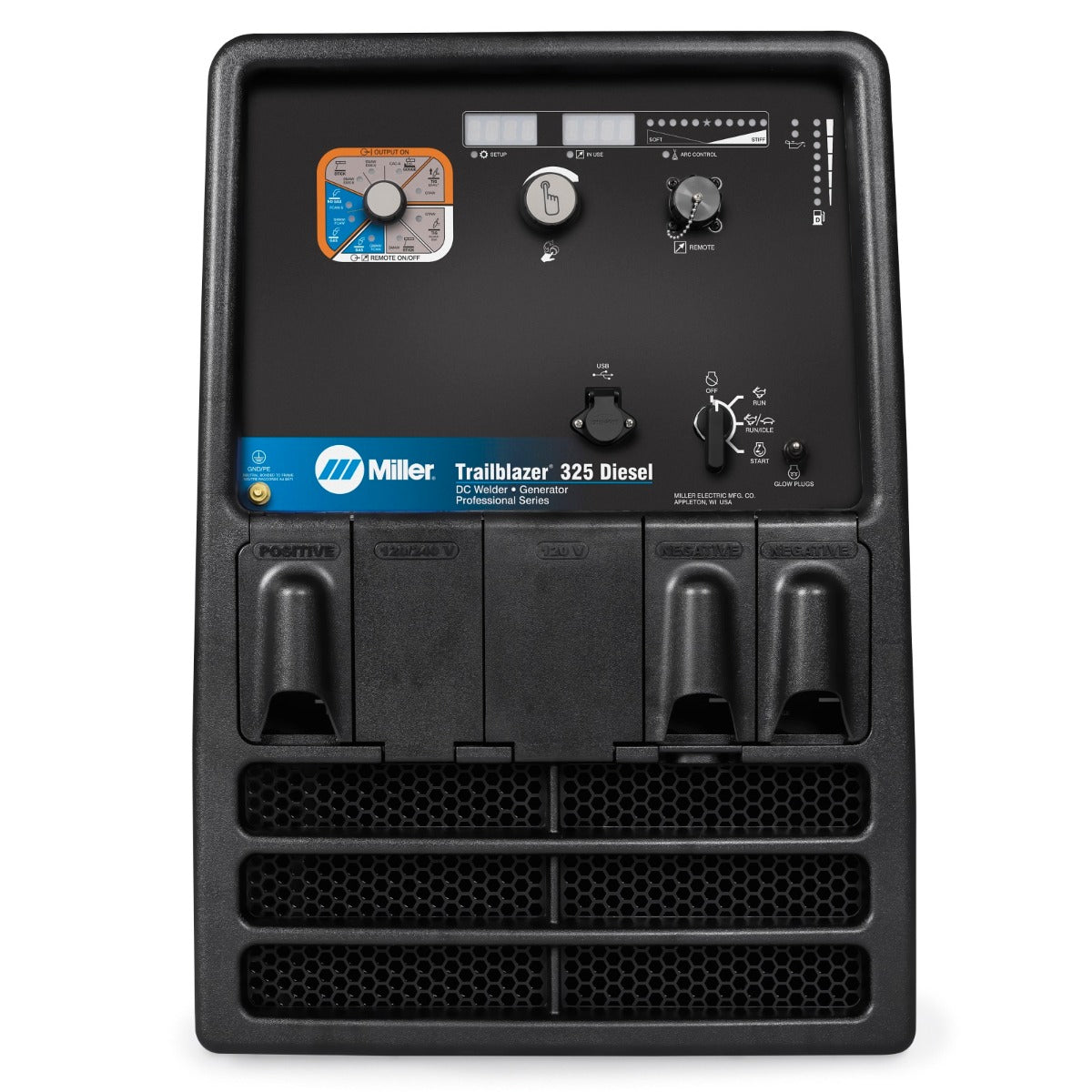

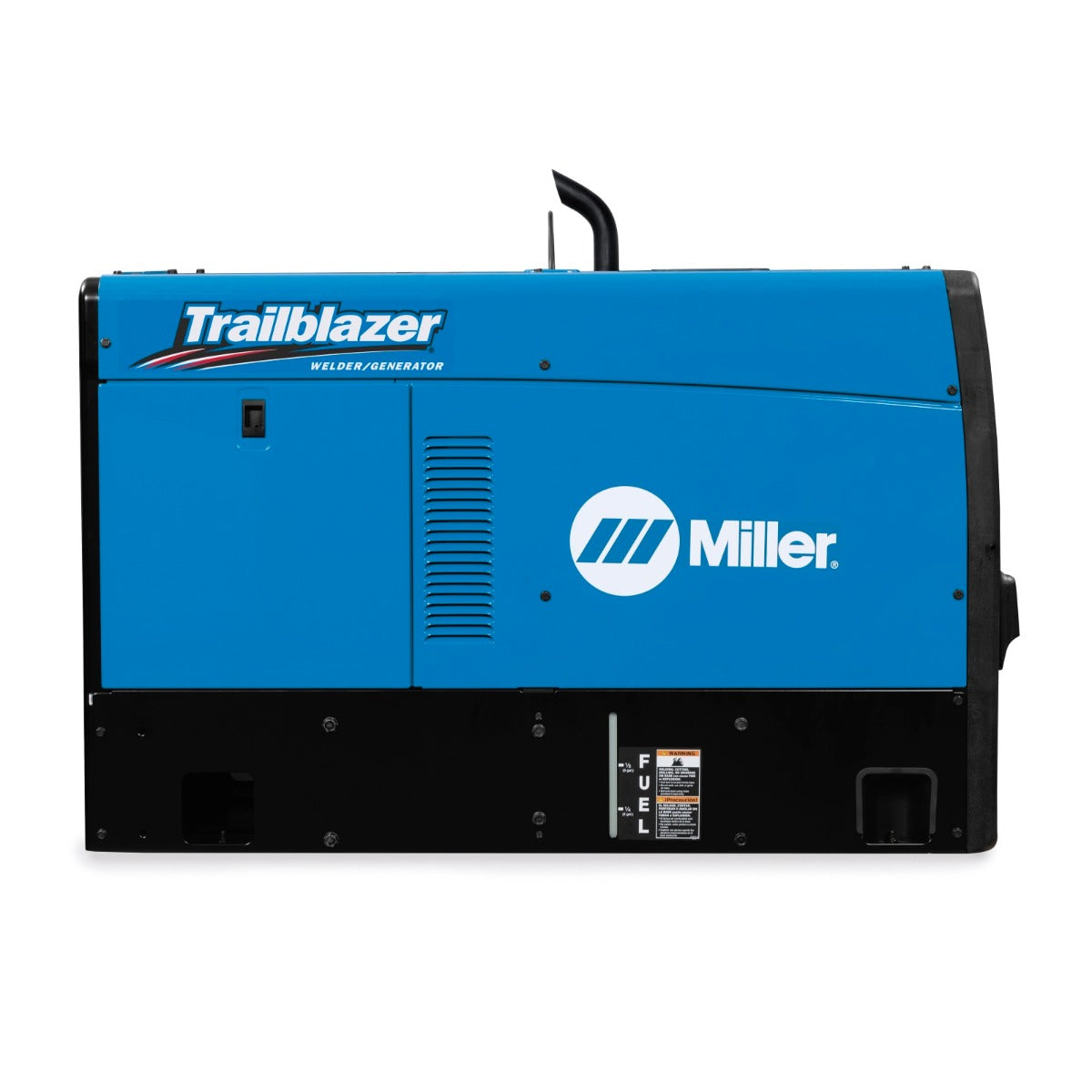

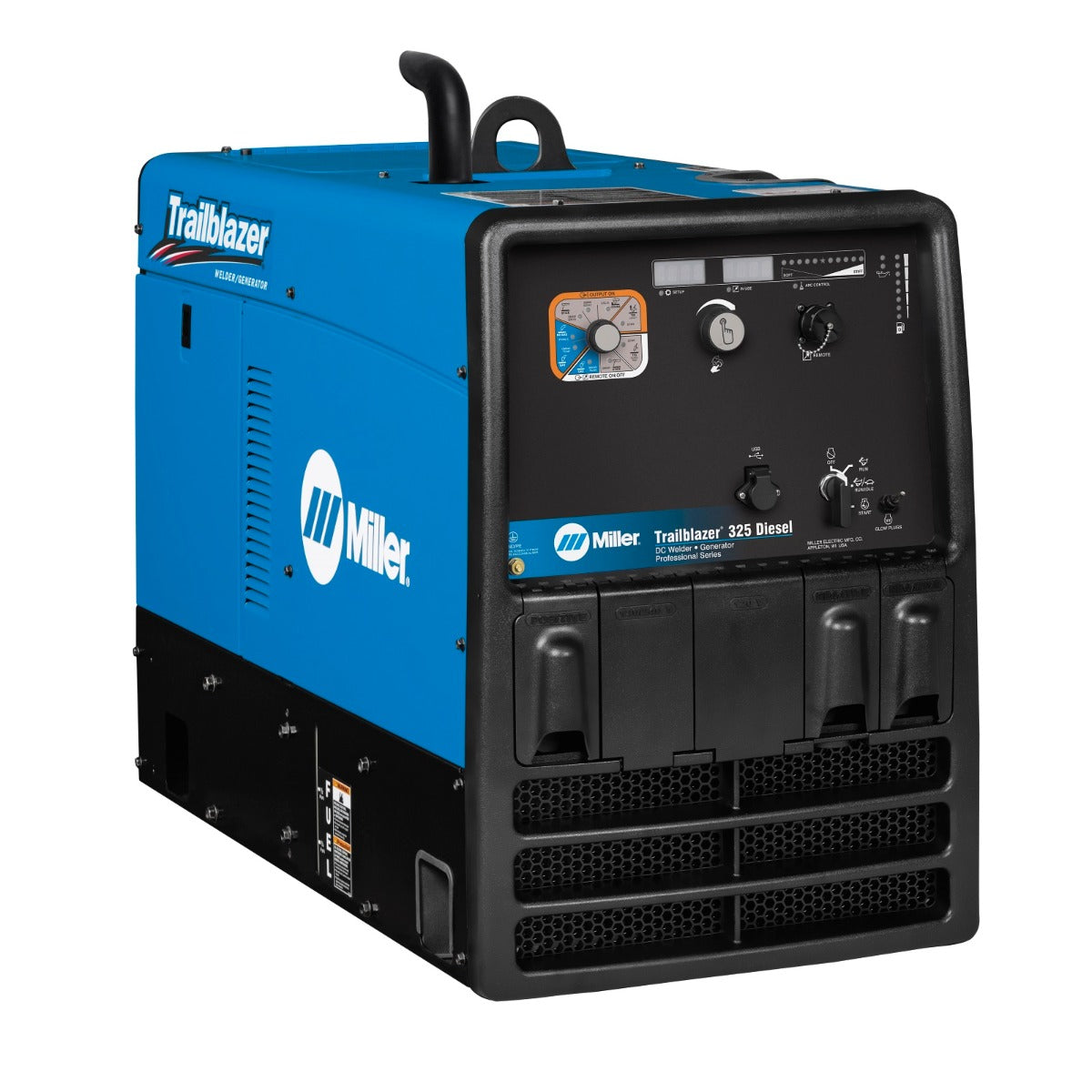

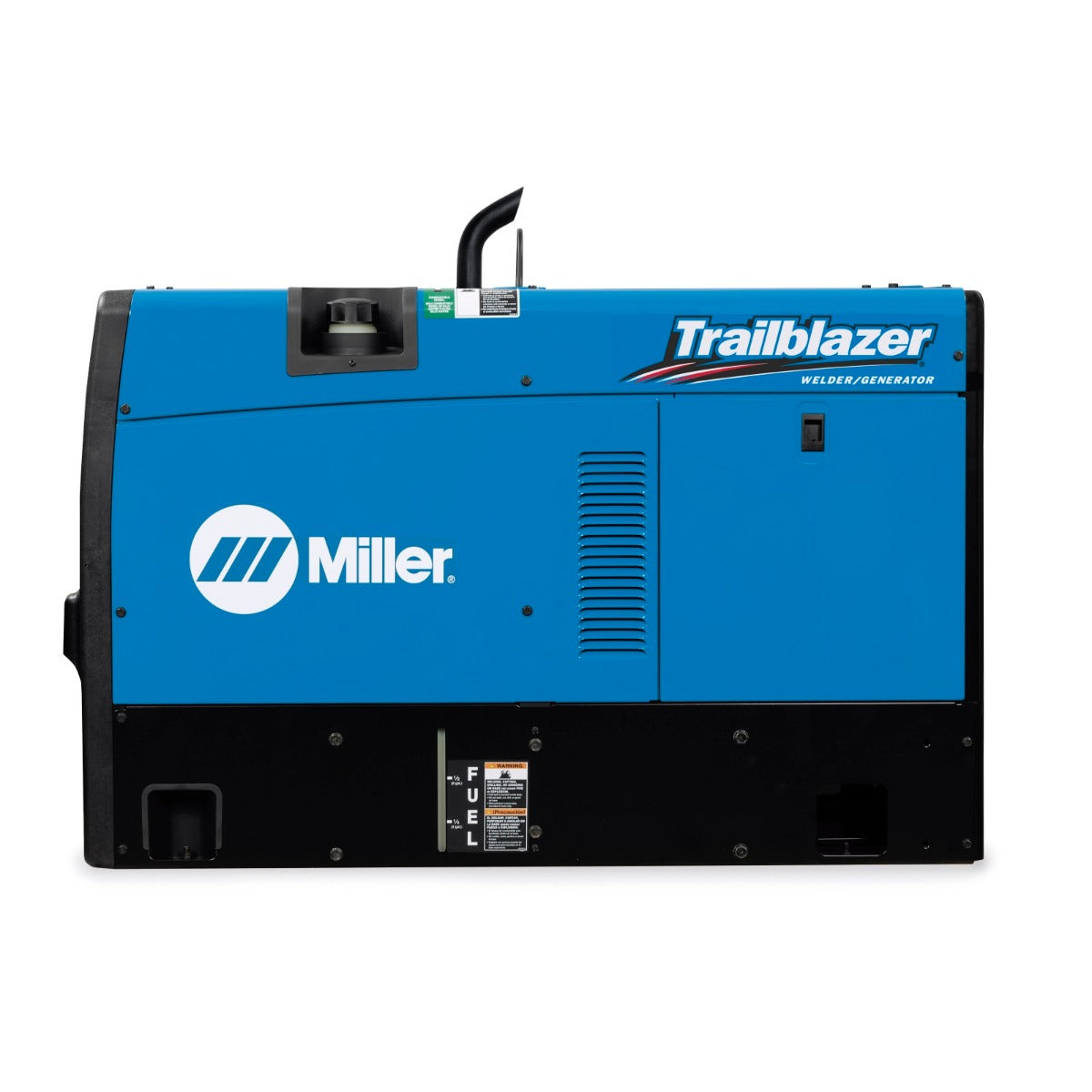

Miller Trailblazer 325 Kubota Diesel Welder/Generator w/ArcReach (907799)
The Miller Trailblazer 325 Kubota diesel engine drive delivers unbeatable arc performance with 325 amps and 12,000 watt peak output. The trailblazers offer an exclusive "Auto-Speed" technology whereby the generator responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary.
Features
• Auto-Speed Technology - Matches Engine Speed to Weld Load
• Excel Power (Optional) - Full 2,400 Watts of 120V Inverter Based Sine Wave Power at All Speed, Including Idle
• ArcReach Technology (Optional) - Remote Control of the Power Source/Feeder Without a Control Cord
• More Portable - Trailblazers are up to 24 Percent Smaller and 10 Percent Lighter than Competitive Machines
• Cleaner and Stronger - 25 HP Kubota Diesel Engine and 12,000 Watts of Accu-Rated Generator Power
Quick Specs
• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output Range: 30-325A DC Stick | 10-35V MIG | 10-325A DC TIG
• Generator Output: 12,000W Peak | 10,500W Continuous
• Sound Levels: 75 dB @ 150A Load | 81.5 dB @ 325A Load
• Dimensions: 28" H x 20" W x 45.4" L
• Weight: 620 lbs
• Engine: Kubota D902 Diesel (2 Year Warranty)
• Horsepower: 24.8 @ 3,600 RPM
• Fuel Capacity: 12 Gallons
Features
• Auto-Speed Technology - Matches Engine Speed to Weld Load
• Excel Power (Optional) - Full 2,400 Watts of 120V Inverter Based Sine Wave Power at All Speed, Including Idle
• ArcReach Technology (Optional) - Remote Control of the Power Source/Feeder Without a Control Cord
• More Portable - Trailblazers are up to 24 Percent Smaller and 10 Percent Lighter than Competitive Machines
• Cleaner and Stronger - 25 HP Kubota Diesel Engine and 12,000 Watts of Accu-Rated Generator Power
Quick Specs
• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output Range: 30-325A DC Stick | 10-35V MIG | 10-325A DC TIG
• Generator Output: 12,000W Peak | 10,500W Continuous
• Sound Levels: 75 dB @ 150A Load | 81.5 dB @ 325A Load
• Dimensions: 28" H x 20" W x 45.4" L
• Weight: 620 lbs
• Engine: Kubota D902 Diesel (2 Year Warranty)
• Horsepower: 24.8 @ 3,600 RPM
• Fuel Capacity: 12 Gallons
MPN: MIL907799
UPC: 715959678452
Phase: Single Phase
