Miller XMT 304 CC/CV MigRunner Package (951343)
This package is no longer available from Miller. You can view similar XMT packages here.
The XMT multi-process welders offer portability, auto-line technology, and excellent arc performance. The XMT 304 CC/CV models are the most popular due to the flexibility of a 14-pin connection for spool guns, feeders, and remote controls.
Features
• Auto-Line voltage hookup (208-460V)
• 1 or 3-Phase Capable
• Adaptive Hot Start
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
The Dinse or Tweco-style Disconnects provide high-quality weld cable connections. (Two dinse connectors are supplied with each Dinse machine)
XMT Quick Specs
• Voltage Range: 10-35V
• Amperage Range: 5-400A
• Duty Cycle: 60% @ 300A 3-Phase | 60% @ 225A 1-Phase
• Weight: 80 lbs
• Dims: 17" H x 12.5" W x 24" D
22A Feeder Specs
• Power: 24V | 7A | 50/60Hz
• Wire Diameter Capacity: .023 - 5/64"
• Wire Speed: 75-750 ipm
• Weight: 36 lbs

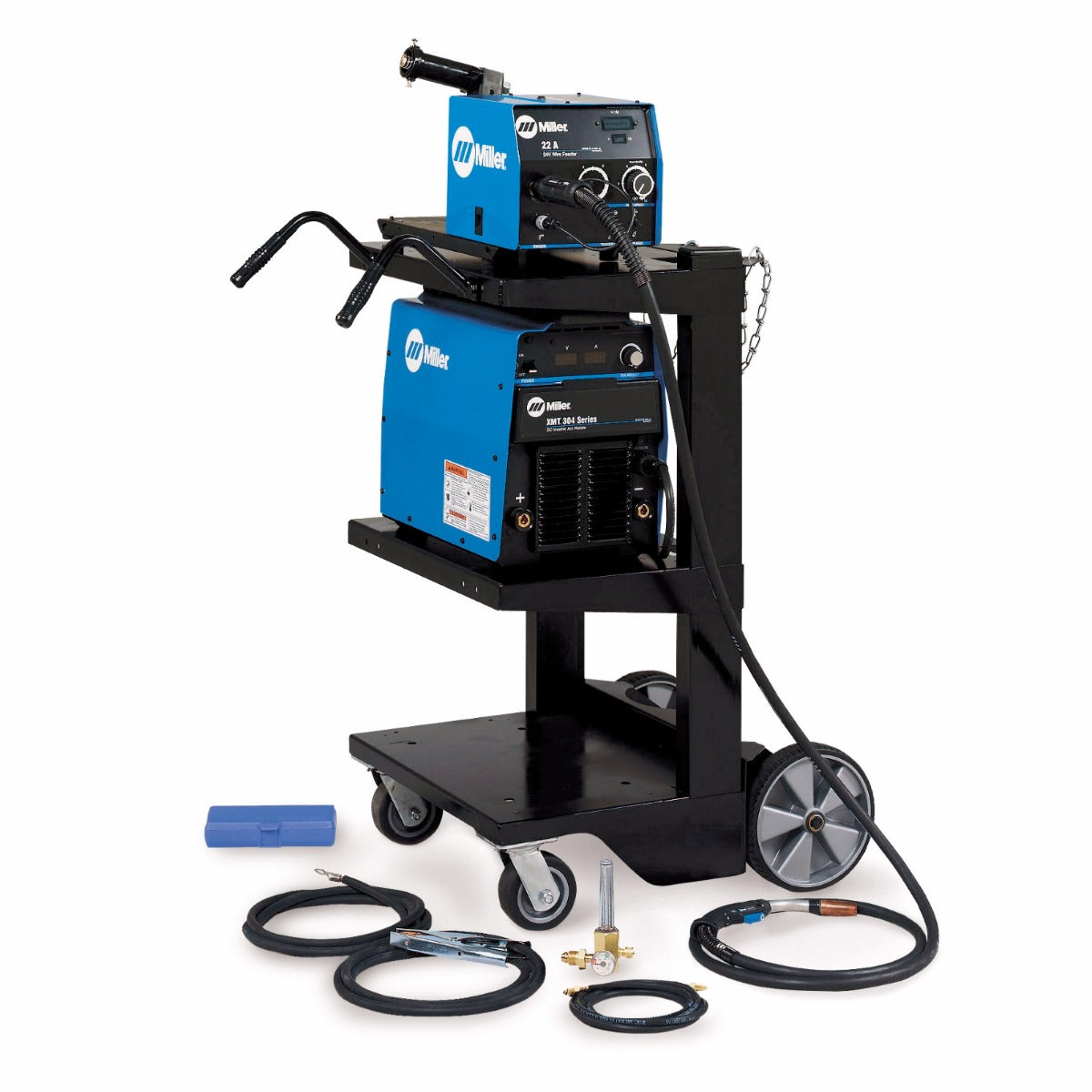

Package Includes
• XMT 304 Power Source
• 22A Wire Feeder
• MigRunner Cart
• 15' 300A Bernard Mig Gun
• .035/.045 V-Groove Drive Rolls
• (3) .035 and (2) .045 Contact Tips
MPN: MIL951343
UPC: 715959553001
Phase: Both
