Steelmax 115V BM16 Portable Beveling Machine (SM-BM16)
Required Beveling or Radius Head:
Required Beveling or Radius Head
Required Beveling or Radius Inserts:
Required Beveling or Radius Inserts
Optional Anti-Abrasion Plate for Aluminum:
Optional Anti-Abrasion Plate for Aluminum
Quantity:

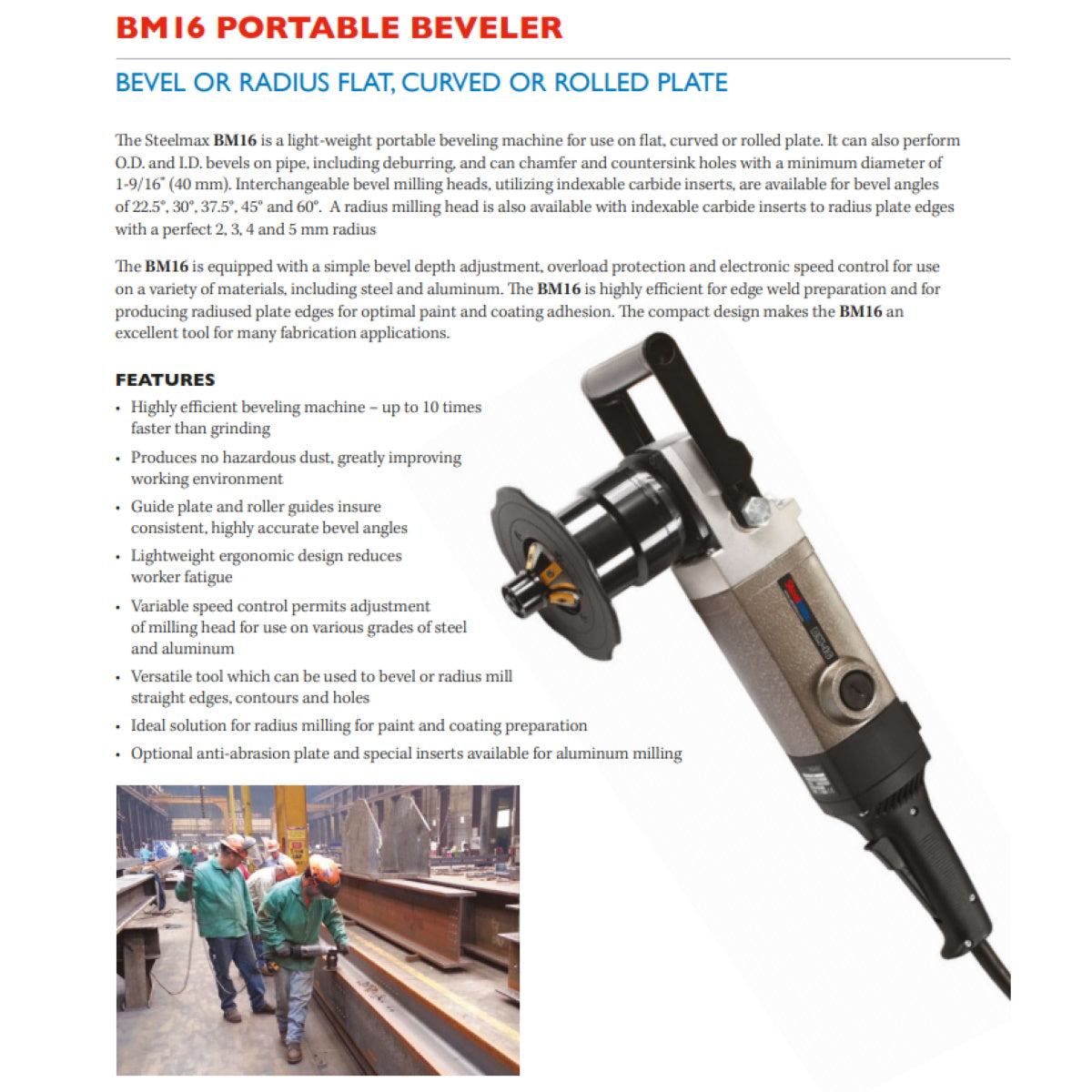

The Steelmax BM16 is a light weight, portable beveling machine for use on flat, curved, or rolled plate. It can perform O.D. and I.D. bevels on pipe, including deburring, and can chamfer, and countersink holes as small as 1-9/16 inch diameter. Interchangeable bevel milling heads, utilizing indexable carbide inserts are available for bevel angles of 22.5°, 30°, 37.5°, 45°, and 60°. A radius milling head is also available with indexable carbide inserts to radius plate edges with a perfect 2, 3, 4, or 5 mm radius.
The BM16 is equipped with a simple bevel depth adjustment, overload protection and electronic speed control for use on a variety of materials, including steel and aluminum. The BM16 is highly efficient for edge weld preparation and for producing radiused plate edges for optimal paint and coating adhesion. The compact design makes the BM16 and excellent tool for many fabrication applications.
Please choose your desired beveling or radius head, then the corresponding inserts. E.g. 45° Bevel head, then select bevel inserts for steel or aluminum. If choosing a radius head, then select your desired R2-R5 radius inserts. R2 would give you a 2 mm radius, and R5 would give you a 5 mm radius.
Ideal Uses
• Beveled Edges for Weld Preparation
• Rounding Off Edges for Paint Preparation
• Removing Burrs and Sharp Edges
• Cleaning Out Holes and Cut Outs
Benefits
• Increased Production - up to 10x faster than grinding
• Consistent High-Quality Finish
• Improved Safety over Grinding Wheels
• Produces No Hazardous Dust
• No Distortion or Heat Input to Workpiece
• Variable Speed Control Permits Adjustment of Milling Head
• Requires No Secondary Grinding to Remove Heat Affected Zones
Features
• Rotary Milling Head with 4 Piece Tool Holder for Indexable TiN Coated Carbide Inserts
• 45-Degree Bevel with Variable Width up to 1/4-Inch (7mm)
• Radius Milling Inserts Available in Sizes 2, 3, 4, and 5 mm
• Compact Ergonomic Design with Cushioned Handle
• Special Anti-Loading Inserts Available for Beveling Aluminum
• Optional Anti-Abrasion Guide Plate for Smoother Aluminum Milling
Quick Specs
• Voltage: 110-120V | 50-60 Hz
• Spindle Speed: 1800 - 5850 RPM
• Max Bevel Width: 5/8" (16 mm)
• Min Material Thickness: 1/8" (1.5 mm)
• Min Diameter for Countersinking: 1-9/16" (40 mm)
• Weight: 22 lbs (10 kg)
• Dims: 23" x 6.1" x 9.4" (585 x 156 x 238 mm)
Includes
• BM16 Beveler (Heads and Inserts Must be Purchased Separately)
• Metal Carry Box
• 32 mm Flat Wrench
• Allen Wrench Hex S=5
• Allen Wrench Hex S=14
• Operators Manual
The BM16 is equipped with a simple bevel depth adjustment, overload protection and electronic speed control for use on a variety of materials, including steel and aluminum. The BM16 is highly efficient for edge weld preparation and for producing radiused plate edges for optimal paint and coating adhesion. The compact design makes the BM16 and excellent tool for many fabrication applications.
Please choose your desired beveling or radius head, then the corresponding inserts. E.g. 45° Bevel head, then select bevel inserts for steel or aluminum. If choosing a radius head, then select your desired R2-R5 radius inserts. R2 would give you a 2 mm radius, and R5 would give you a 5 mm radius.
Ideal Uses
• Beveled Edges for Weld Preparation
• Rounding Off Edges for Paint Preparation
• Removing Burrs and Sharp Edges
• Cleaning Out Holes and Cut Outs
Benefits
• Increased Production - up to 10x faster than grinding
• Consistent High-Quality Finish
• Improved Safety over Grinding Wheels
• Produces No Hazardous Dust
• No Distortion or Heat Input to Workpiece
• Variable Speed Control Permits Adjustment of Milling Head
• Requires No Secondary Grinding to Remove Heat Affected Zones
Features
• Rotary Milling Head with 4 Piece Tool Holder for Indexable TiN Coated Carbide Inserts
• 45-Degree Bevel with Variable Width up to 1/4-Inch (7mm)
• Radius Milling Inserts Available in Sizes 2, 3, 4, and 5 mm
• Compact Ergonomic Design with Cushioned Handle
• Special Anti-Loading Inserts Available for Beveling Aluminum
• Optional Anti-Abrasion Guide Plate for Smoother Aluminum Milling
Quick Specs
• Voltage: 110-120V | 50-60 Hz
• Spindle Speed: 1800 - 5850 RPM
• Max Bevel Width: 5/8" (16 mm)
• Min Material Thickness: 1/8" (1.5 mm)
• Min Diameter for Countersinking: 1-9/16" (40 mm)
• Weight: 22 lbs (10 kg)
• Dims: 23" x 6.1" x 9.4" (585 x 156 x 238 mm)
Includes
• BM16 Beveler (Heads and Inserts Must be Purchased Separately)
• Metal Carry Box
• 32 mm Flat Wrench
• Allen Wrench Hex S=5
• Allen Wrench Hex S=14
• Operators Manual
MPN: SMTSM-BM16
