Steelmax 115V BM7 Portable Beveler w/45 Deg Milling Head (SM-BM7)
Required Beveling or Radius Inserts:
Required Beveling or Radius Inserts
Optional 30° Milling Head:
Optional 30° Milling Head
Optional Anti-Abrasion Plate for Aluminum:
Optional Anti-Abrasion Plate for Aluminum
Quantity:

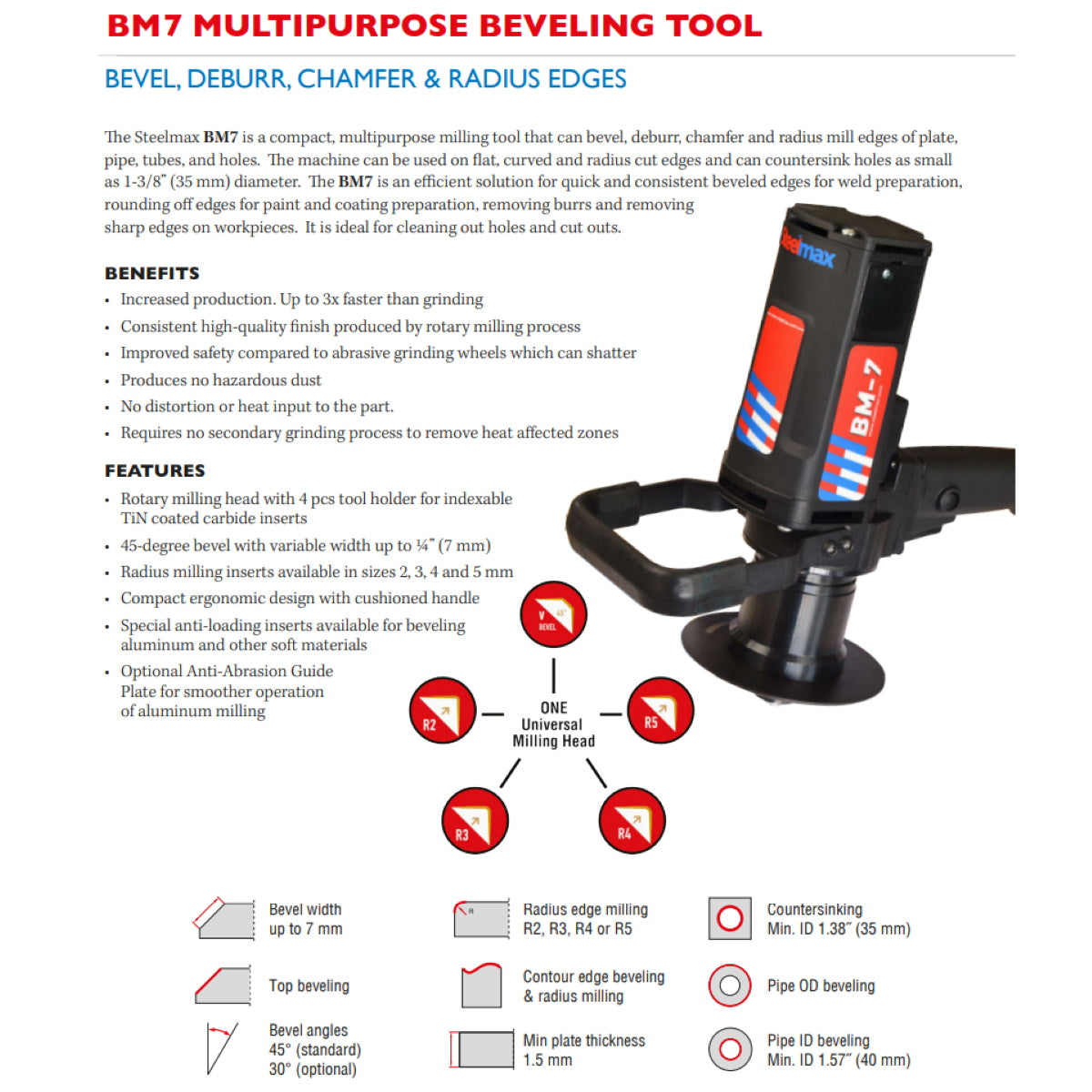

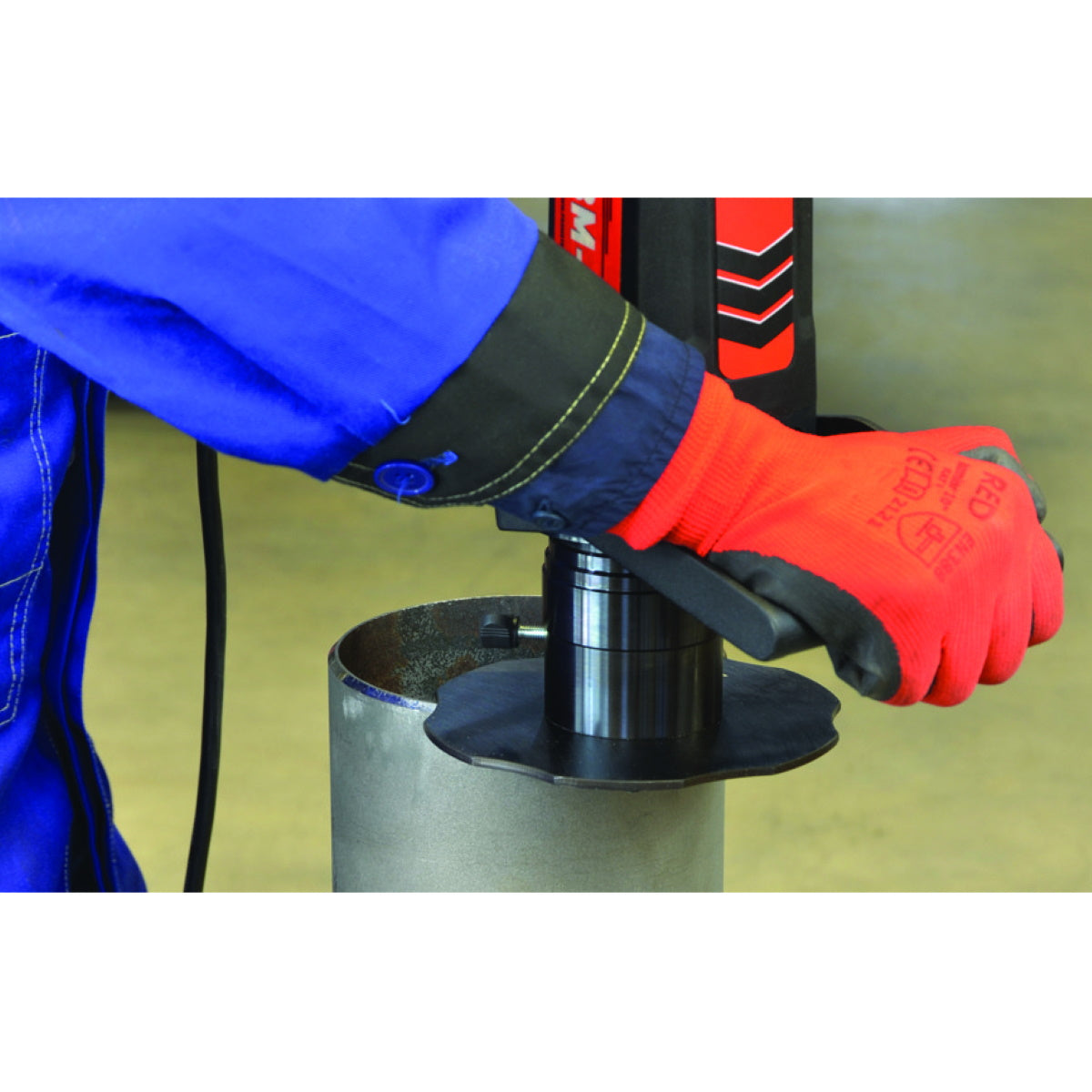

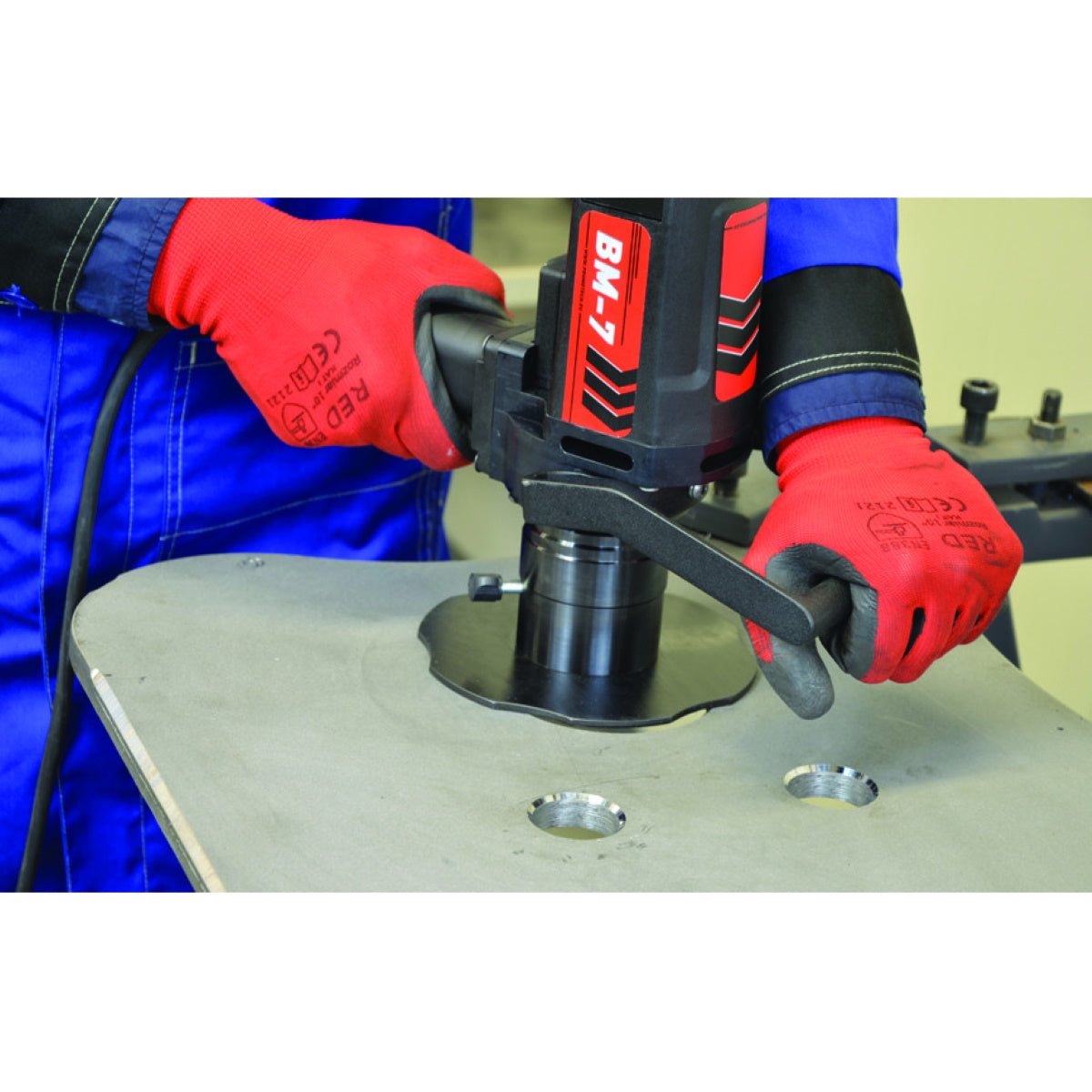

The Steelmax BM7 is a compact, multi-purpose milling tool that can bevel, deburr, chamfer, and radius mill edges of plate, pipe, tubes, and holes. The BM7 can be used on flat, curved, and radius cut edges and can coutersink holes as small as 1-3/8 inch diameter. This beveler is an efficient solution for quick and consistent beveled edges for weld preparation, rounding edges, and removing burrs.

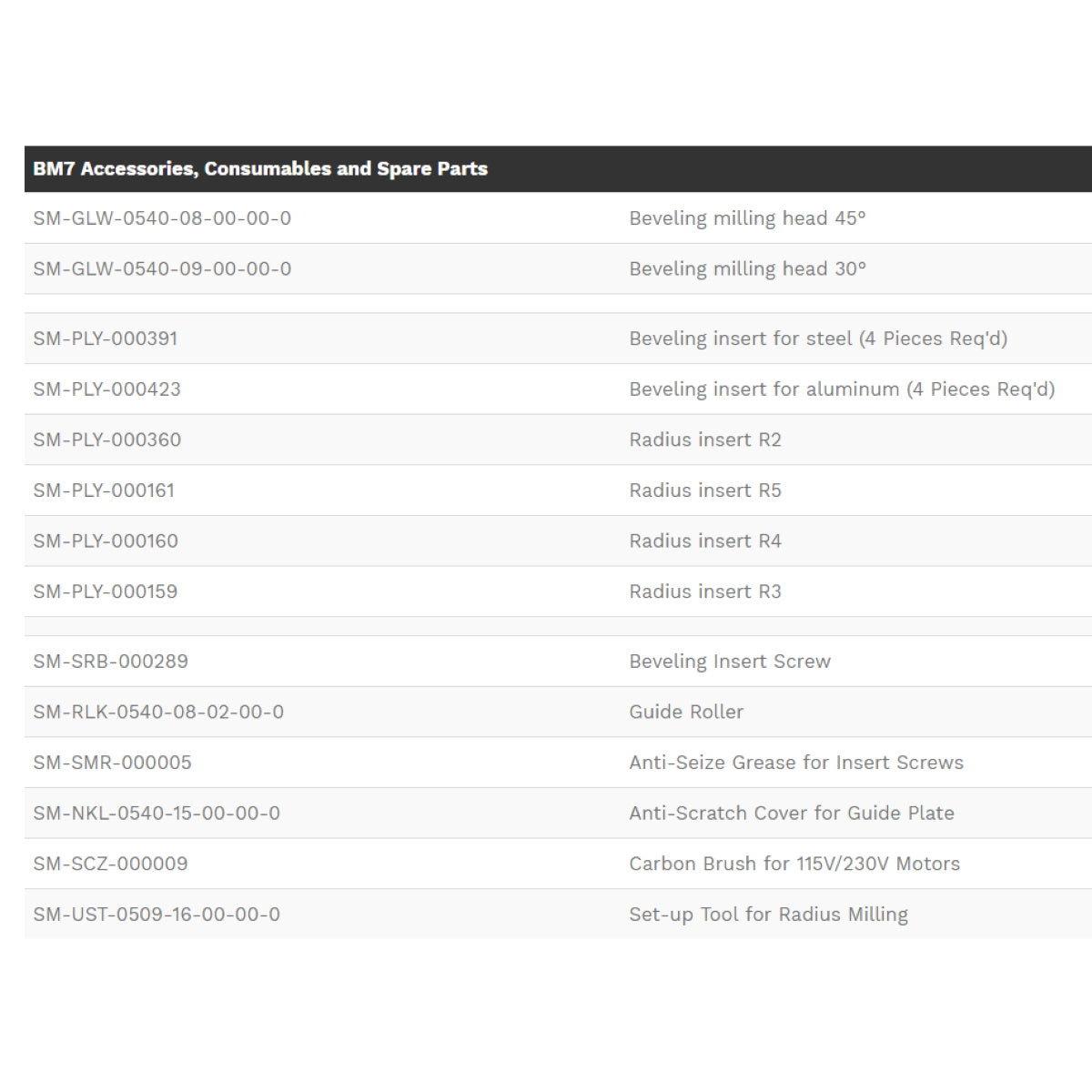

The BM7 comes with a 45° milling head. Inserts for beveling or radius milling must be purchased separately. Please see "specs" tab for parts breakdown and see "video" tab for Steelmax's 3 minute video on the BM7 beveler.
Ideal Uses

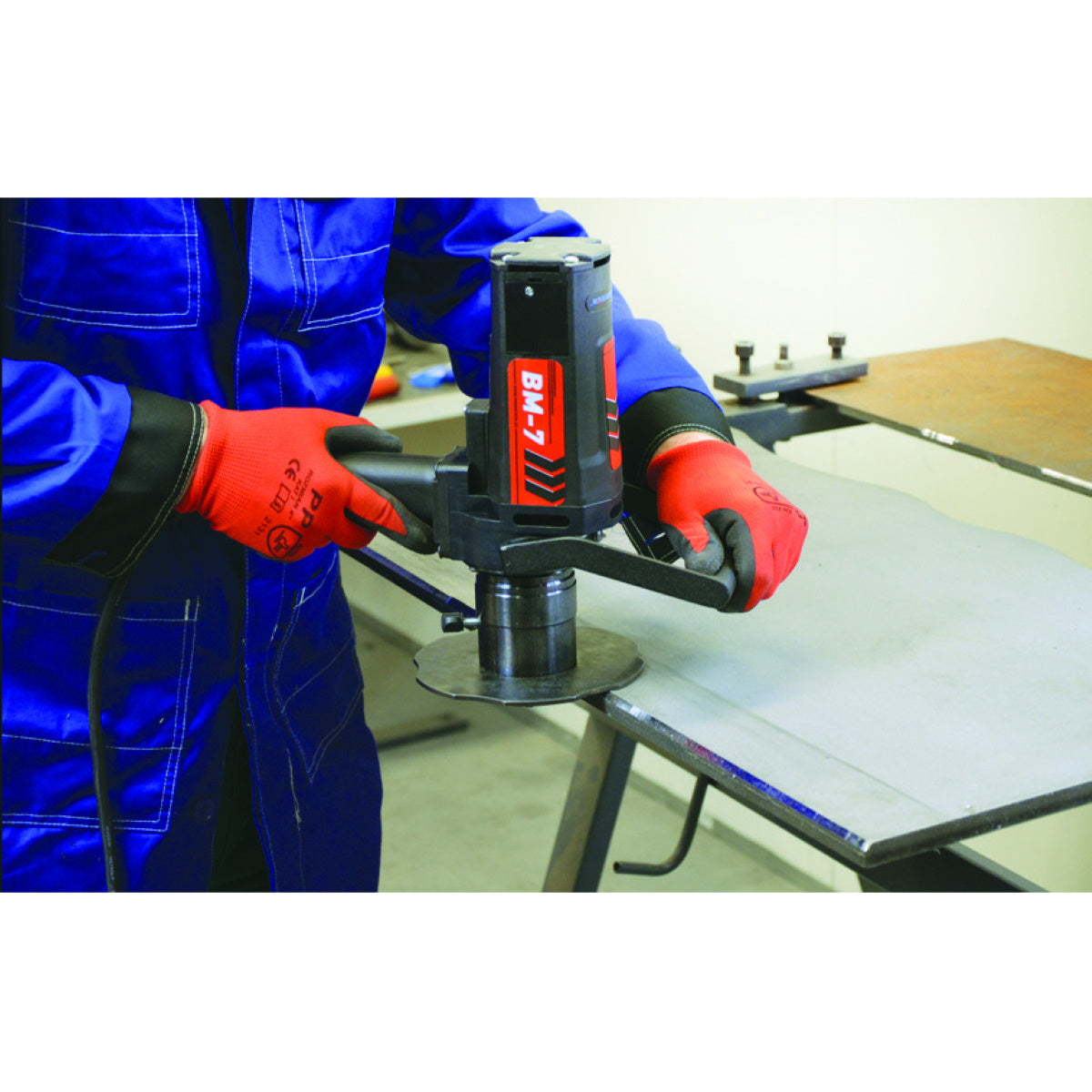

• Beveled Edges for Weld Preparation

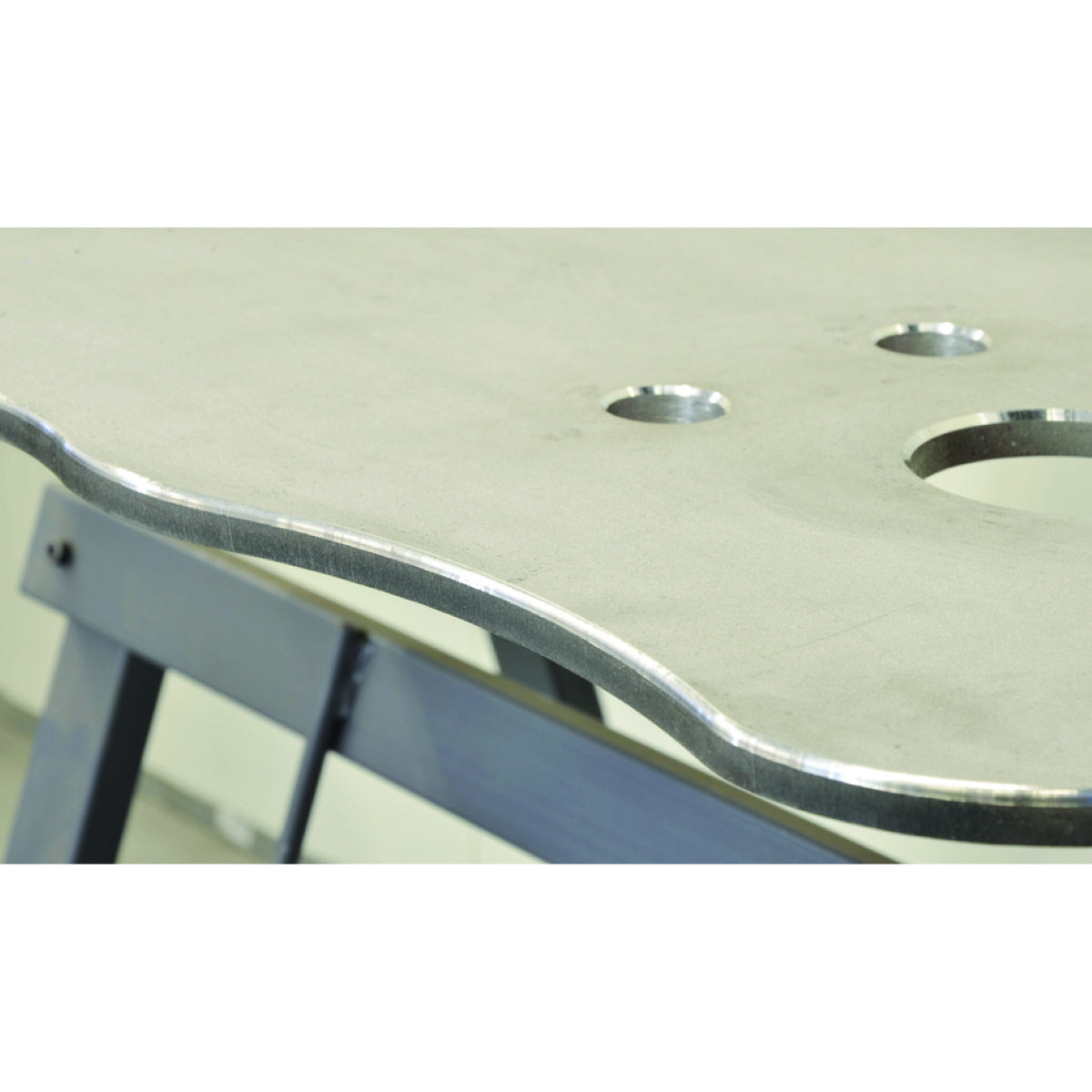

• Rounding Off Edges for Paint Preparation
• Removing Burrs and Sharp Edges
• Cleaning Out Holes and Cut Outs
Benefits
• Increased Production - up to 3x faster than grinding
• Consistent High-Quality Finish
• Improved Safety over Grinding Wheels
• Produces No Hazardous Dust
• No Distortion or Heat Input to Workpiece
• Requires No Secondary Grinding to Remove Heat Affected Zones
Features
• Rotary Milling Head with 4 Piece Tool Holder for Indexable TiN Coated Carbide Inserts
• 45-Degree Bevel with Variable Width up to 1/4-Inch (7mm)
• Radius Milling Inserts Available in Sizes 2, 3, 4, and 5 mm
• Compact Ergonomic Design with Cushioned Handle
• Special Anti-Loading Inserts Available for Beveling Aluminum
• Optional Anti-Abrasion Guide Plate for Smoother Aluminum Milling
Quick Specs
• Voltage: 110-120V | 50-60 Hz
• Spindle Speed: 6500 RPM
• Max Bevel Width: .030" (7 mm)
• Min Diameter for Countersinking: 1.38" (35 mm)
• Weight: 13 lbs (5.8 kg)
• Dims: 13" x 5.6" x 12.5" (327 x 142 x 319 mm)

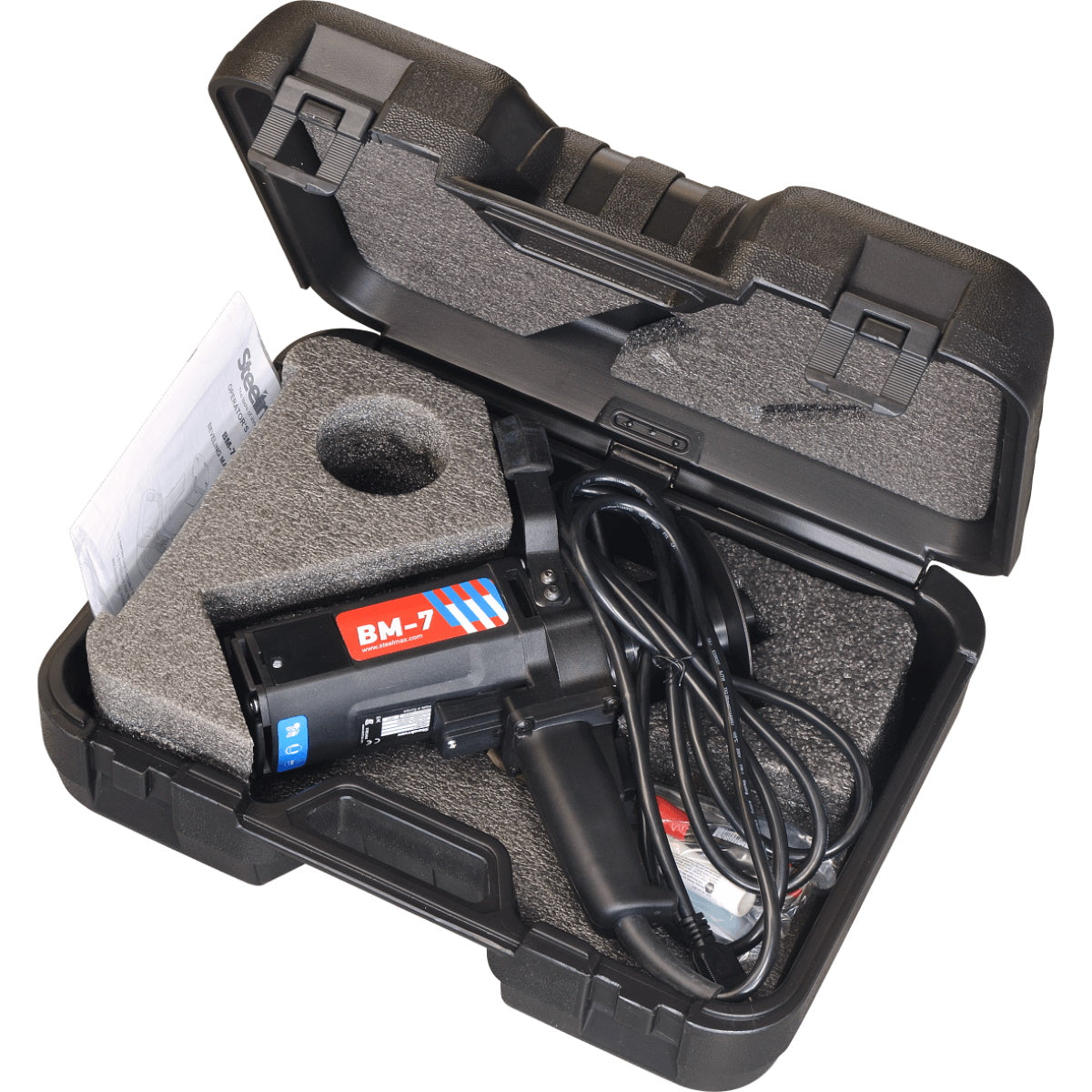

Includes
• BM7 Beveler with 45° Milling Head (Inserts Must be Purchased Separately)
• Radius Edge Milling Depth Setting Tool

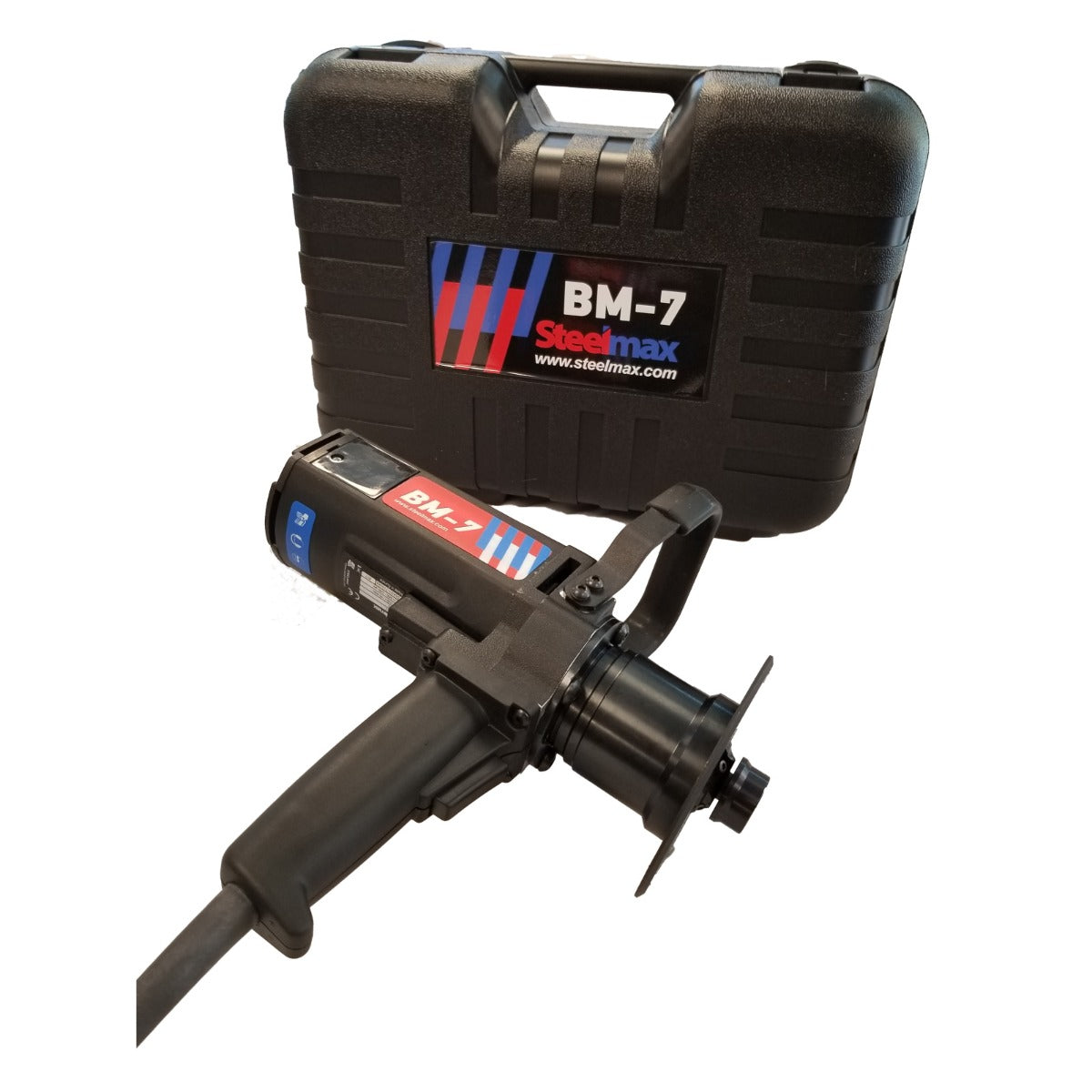

• Plastic Carry Box
• Special Wrench
• Torx T15 Screwdriver
• Screw Grease
• Operators Manual
The BM7 comes with a 45° milling head. Inserts for beveling or radius milling must be purchased separately. Please see "specs" tab for parts breakdown and see "video" tab for Steelmax's 3 minute video on the BM7 beveler.
Ideal Uses
• Beveled Edges for Weld Preparation
• Rounding Off Edges for Paint Preparation
• Removing Burrs and Sharp Edges
• Cleaning Out Holes and Cut Outs
Benefits
• Increased Production - up to 3x faster than grinding
• Consistent High-Quality Finish
• Improved Safety over Grinding Wheels
• Produces No Hazardous Dust
• No Distortion or Heat Input to Workpiece
• Requires No Secondary Grinding to Remove Heat Affected Zones
Features
• Rotary Milling Head with 4 Piece Tool Holder for Indexable TiN Coated Carbide Inserts
• 45-Degree Bevel with Variable Width up to 1/4-Inch (7mm)
• Radius Milling Inserts Available in Sizes 2, 3, 4, and 5 mm
• Compact Ergonomic Design with Cushioned Handle
• Special Anti-Loading Inserts Available for Beveling Aluminum
• Optional Anti-Abrasion Guide Plate for Smoother Aluminum Milling
Quick Specs
• Voltage: 110-120V | 50-60 Hz
• Spindle Speed: 6500 RPM
• Max Bevel Width: .030" (7 mm)
• Min Diameter for Countersinking: 1.38" (35 mm)
• Weight: 13 lbs (5.8 kg)
• Dims: 13" x 5.6" x 12.5" (327 x 142 x 319 mm)
Includes
• BM7 Beveler with 45° Milling Head (Inserts Must be Purchased Separately)
• Radius Edge Milling Depth Setting Tool
• Plastic Carry Box
• Special Wrench
• Torx T15 Screwdriver
• Screw Grease
• Operators Manual
MPN: SMTSM-BM7
